Запчасти Case IH 258 (07-052) - INDEPENDENT POWER TAKE OFF, SINGLE SPEED, INDEPENDENT POWER TAKE-OFF (04) - Drive Train

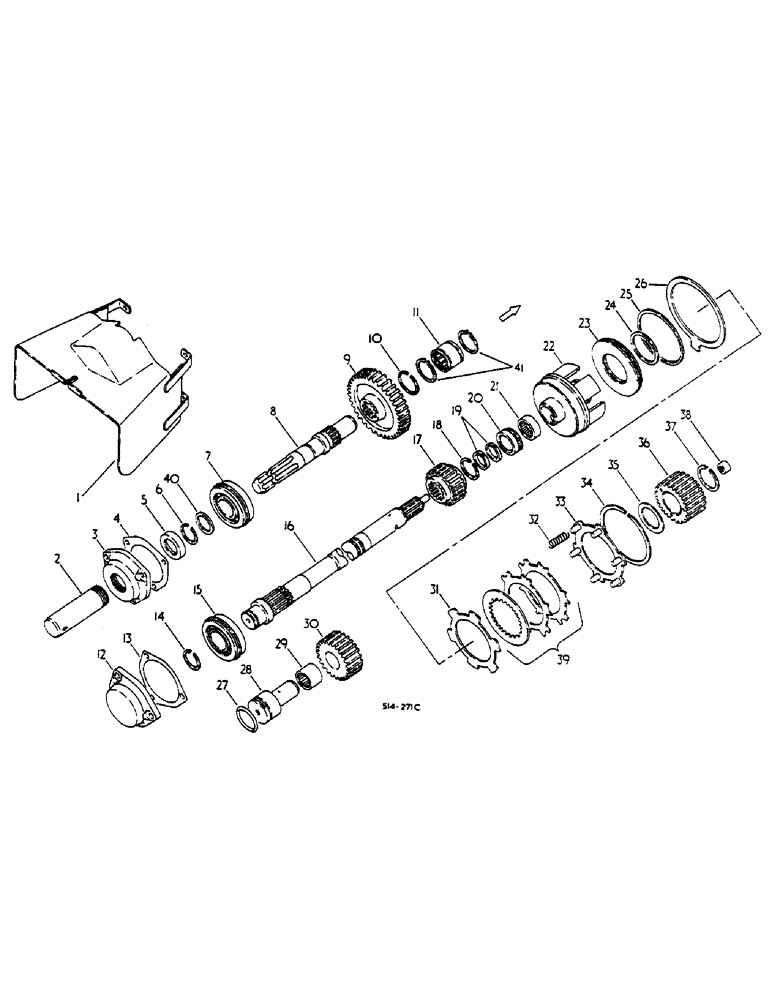

Схема запчастей Case IH 258 - (07-052) - INDEPENDENT POWER TAKE OFF, SINGLE SPEED, INDEPENDENT POWER TAKE-OFF (04) - Drive Train
20
41
14
26
5
21
27
25
40
18
12
23
9
16
6
17
22
8
29
4
39
38
31
3
28
10
2
13
15
36
32
1
24
19
37
35
33
30
34
7
11

Артикул

Название

Примечание

Количество

1

401734R1

GUARD ASSY.

SHIELD, IPTO SAFETY, INCLUDES SCREW

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

2

3054841R2

TUBE

ASSY, IPTO SHAFT PROTECTION

1шт.

3

401725R2

FLANGED BEARING

IPTO SHAFT BRG, UP TO 7998

1шт.

3

1500086C1

FLANGED BEARING

IPTO SHAFT BRG, 7999 UP, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

4

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

6

607186R1

SNAP RING,#156, Ext

Brg

1шт.

7

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

7

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

7

67648C91

BEARING

SHAFT BALL, USED W/UPPER DRIVEN GEAR 38T

1шт.

8

3113017R1

SHAFT

UPPER OUTPUT, UP TO 7998

1шт.

8

1500087C1

SHAFT

UPPER OUTPUT, 7999 UP

1шт.

9

66192C1

GEAR

UPPER DRIVEN - 38T

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

11

112821R91

NEEDLE BEARING

SHAFT NEEDLE

1шт.

11

528103R91

BEARING, NEEDLE

SHAFT, OPTIONAL, UP TO 7998

1шт.

11

1500088C1

BEARING

SPARE PART SHAFT, CAGED, 7999 UP

1шт.

12

66191C1

FLANGED BEARING

IPTO SHAFT BEARING, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

13

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

14

607186R1

SNAP RING,#156, Ext

Brg

1шт.

15

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

15

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

15

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT BALL

1шт.

15

67648C91

BEARING

SHAFT BALL, USED W/LOWER SHAFT DRIVE GEAR 21T

1шт.

16

66189C1

SHAFT ASSY.

IPTO DRIVING

1шт.

17

404232R1

GEAR

LOWER SHAFT DRIVE - 21T

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

DRIVEN GEAR RETAINER

1шт.

19

166972R1

RING

SHAFT SEALING

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

21

565232R1

BEARING

LOWER SHAFT NEEDLE

1шт.

22

66068C1

GEAR

CLUTCH CUP - 44T, W/PROVISION FOR SIDE P T O

1шт.

22

3125149R2

CUP

CLUTCH, W/OUTSIDE DRIVE P T O, INCLUDES PIN

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

23

401722R1

PISTON

CLUTCH

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

26

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

27

379861R1

O-RING 2-1/16 X 2-1/4 X 3/32

1шт.

28

401726R1

SHAFT

IPTO IDLER

1шт.

29

570450R1

BEARING

IDLER SHAFT NEEDLE

1шт.

29

528105R91

BEARING, NEEDLE

IDLER SHAFT, OPTIONAL

1шт.

30

401727R1

PINION

GEAR, IDLER - 24T

1шт.

31

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

32

66182C1

SPRING

PISTON RETURN

6шт.

33

66186C1

PLATE

ASSY, CLUTCH BACKING, INCLUDES PINS

1шт.

19555R1

PIN,5/16" x 1", Coiled

6шт.

34

401720R1

CIRCLIP

BACKING PLATE

1шт.

35

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

36

66183C1

NO LONGER SERVICED

HUB ASSY, CLUTCH

1шт.

37

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

38

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

38

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

39

66193C91

PACKAGE

CLUTCH PLATE, SERVICE, CONSISTS OF 5 DISCS, 8 PLATES, 1 O-RING - 401723R1, 1 O-RING - 401724R1, 6 SPRINGS - 66182C1

1шт.

40

1500085C1

WASHER

1шт.

41

202307R1

SNAP RING,#206, Ext

1шт.

1093099R1

PRODUCT GRAPHIC

IPTO SPEED 540, FOR SYNCHROMESH DRIVE TRACTORS, NOT ILLUSTRATED

1шт.

Выбрано товаров: 60
