Запчасти Case IH 258 (07-049) - INDEPENDENT POWER TAKE-OFF, SINGLE, INDEPENDENT POWER TAKE-OFF (04) - Drive Train

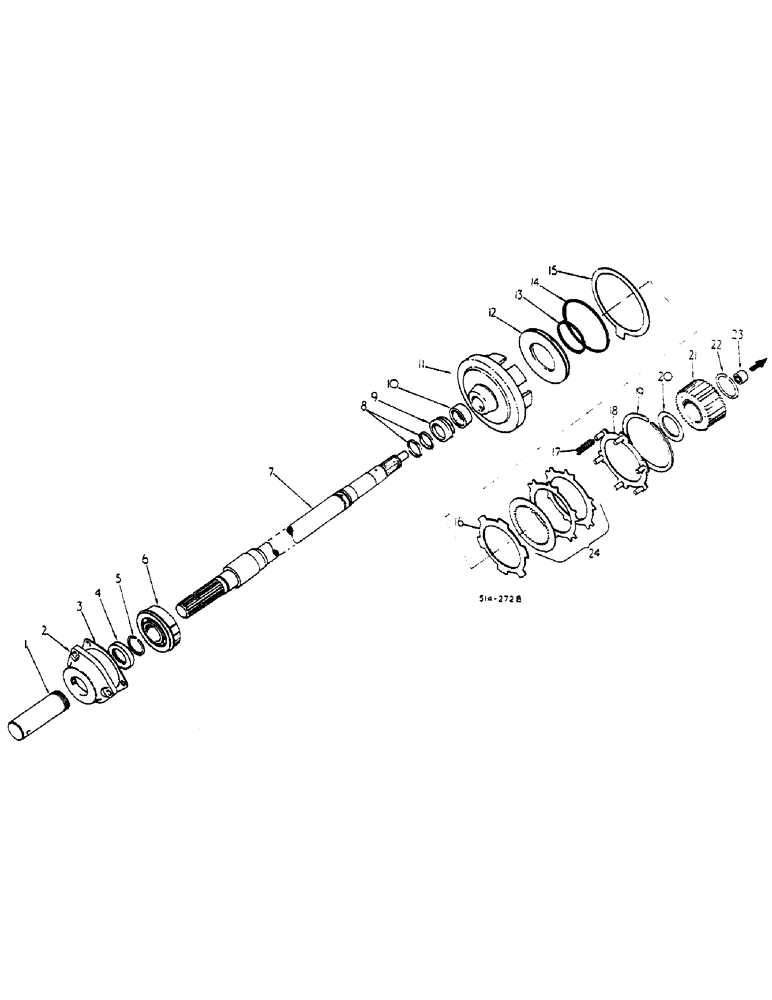

Схема запчастей Case IH 258 - (07-049) - INDEPENDENT POWER TAKE-OFF, SINGLE, INDEPENDENT POWER TAKE-OFF (04) - Drive Train
9
8
20
2
21
5
23
22
4
24
19
14
15
12
11
3
7
1
10
13
17
6
18
16

Артикул

Название

Примечание

Количество

1

NOT APPLICABLE

1шт.

2

401725R2

FLANGED BEARING

IPTO SHAFT BRG, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

3

399843R3

GASKET

SHAFT BRG RETAINER

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SHAFT

1шт.

5

607186R1

SNAP RING,#156, Ext

Brg

1шт.

6

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

SHAFT

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

SHAFT

1шт.

6

536615R91

BEARING, SHAFT BALL

1шт.

6

71268C91

BALL BEARING

SHAFT

1шт.

6

67655C91

BALL BEARING

SHAFT

1шт.

6

85657H

BEARING, BALL

SHAFT, OPTIONAL

1шт.

7

66458C1

SHAFT ASSY.

COMPRESSOR DRIVE

1шт.

8

166972R1

RING

SHAFT SEALING

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

LOWER SHAFT

1шт.

10

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

623 RPM SHAFT

1шт.

11

3125149R1

CUP

CLUTCH, W/OUT SIDE DRIVE PTO

1шт.

11

66068C1

GEAR

CLUTCH CUP -44T, W/SIDE DRIVE PTO, INCLUDES PIN

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

CLUTCH

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

PISTON SEAL, INNER

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

PISTON SEAL, OUTER

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO BRAKE

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

PISTON RETURN

1шт.

17

66182C1

SPRING

PISTON RETURN

6шт.

18

66186C91

PLATE ASSY.

CLUTCH BACKING, INCLUDES PINS

1шт.

20020R1

DOWEL,5/16" x 1"

5/16 X 1 DOWEL

6шт.

70695C1

DOWEL

PIN, 5/16 X 1, OPTIONAL

6шт.

19

401720R1

CIRCLIP

BACKING PLATE

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

21

66183C2

HUB ASSY.,45T

CLUTCH

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

1шт.

23

538467R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT

1шт.

23

533325R91

BEARING, NEEDLE

IPTO DRIVEN SHAFT, OPTIONAL

1шт.

24

66193C91

PACKAGE

IPTO CLUTCH PLATE, SERVICE, CONSISTS OF 5 DISCS, 8 PLATES, 1 O-RING - 401723R1, 1 O-RING - 401724R1, 6 SPRINGS - 66182C1

1шт.

1093321R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED 1000, NOT ILLUSTRATED

1шт.

1093229R1

PRODUCT GRAPHIC

SPARE PART IPTO SPEED WARNING, AGRICULTURAL MACHINES, NOT ILLUSTRATED

1шт.

1093230R1

PRODUCT GRAPHIC

IPTO SPEED WARNING, INDUSTRIAL MACHINES, NOT ILLUSTRATED

1шт.

Выбрано товаров: 38
