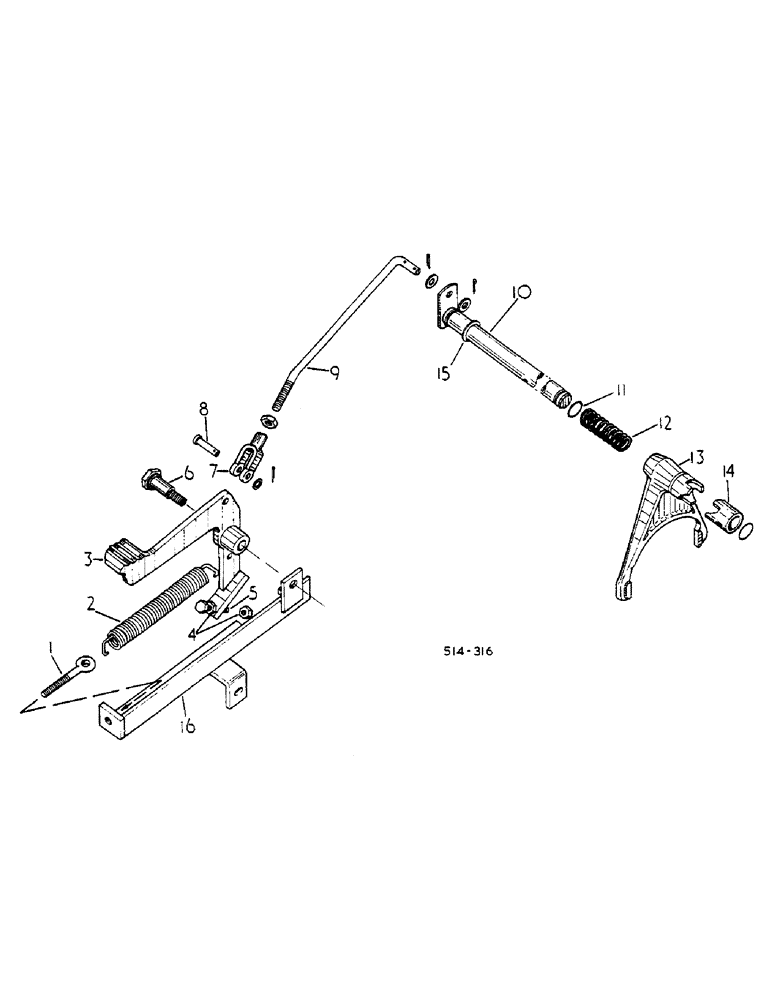

Запчасти Case IH 258 (07-037) - DIFFERENTIAL LOCK, MACHINES FITTED WITH CAB (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
3121850R1
EYEBOLT,3/8" - 16 x 3"
BOLT, EYE PEDAL RETURN SPRING, INCLUDES NUTS
1шт.
102635
NUT,3/8"-16, G5
2шт.
2
3121849R1
SPRING
DIFF LOCK PEDAL RETURN
1шт.
3
3116181R3
PEDAL
DIFF LOCK, STANDARD MACHINES
1шт.
3
3121568R1
PEDAL
DIFF LOCK, 4-WHEEL DRIVE
1шт.
4
109084
NUT,1/4"-20, G5
1шт.
5
179797
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1шт.
6
3116897R1
BOLT,Lock, 9/16" - 12 x 2.38"
DIFF LOCK PEDAL PIVOT
1шт.
7
753984R1
CLEVIS,3/8" - 16
ROD END
1шт.
8
NLS
NO LONGER SERVICED
3/8 X 1-1/16 CLEVIS, INCLUDES PIN AND WASHER
1шт.
103373
COTTER PIN,3/32" x 3/4"
1шт.
Q1597
WASHER
13/32 X 3/4 X 1-1/16
1шт.
9
3116187R91
ROD
DIFF LOCK PEDAL, INCLUDES PINS, WASHERS AND NUT
1шт.
103384
COTTER PIN,1/8" x 3/4"
2шт.
Q1597
WASHER
13/32 X 3/4 X 1/16
2шт.
114503
JAM NUT,Jam, 3/8"-16, G5
1шт.
10
527871R1
SHAFT ASSY.
DIFF LOCK, UP TO SERIAL NO 10035 AND 258/810
1шт.
10
1500384C1
SHAFT ASSY.
DIFF LOCK, INCLUDES PINS AND WASHER
1шт.
1500388C2
PIN
CAM ACTUATING
1шт.
365704R1
PIN,1/8" x 5/8", Coiled
1шт.
Q3501
WASHER
25/32 X 1-1/4 166A FLAT, SERIAL NO 10036 AND 258/811 UP
1шт.
11
352221R1
O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro
2шт.
12
527878R1
SPRING
DIFF LOCK FORK ACTUATING 9/16 X 3/4 X 3/32
1шт.
13
527874R3
FORK
ASSY, DIFF LOCK SHAFT, UP TO SERIAL NO 10035 AND 258/810
1шт.
13
1500386C1
FORK
ASSY, DIFF LOCK SHAFT, SERIAL NO 10036 AND 258/811 UP
1шт.
14
527877R1
CAM
DIFF LOCK SHAFT, INCLUDES PIN
1шт.
19885R1
PIN,1/4" x 1 3/8", Coiled
Up to serial no 10035 and 258/810
1шт.
15
551658R1
WASHER
25/32 X 1-1/4 X 22
1шт.
15
Q3501
WASHER
25/32 X 1-1/4 X 16, AS REQUIRED
1шт.
16
3116182R1
SUPPORT ASSY.
DIFF LOCK PEDAL, STANDARD MACHINES
1шт.
16
3121572R1
SUPPORT ASSY.
DIFF LOCK PEDAL, 4-WHEEL DRIVE
1шт.
179881
BOLT,1/2" - 13 x 1", Gr 5
1шт.
NLS
NO LONGER SERVICED
531 X 1 062 X 074
1шт.
103323
LOCK WASHER,1/2"
1шт.
Выбрано товаров: 34
