Запчасти Case IH 258 (07-022) - CLUTCH, 584/7990 UP, 585/9000 UP, 258/676 UP (04) - Drive Train

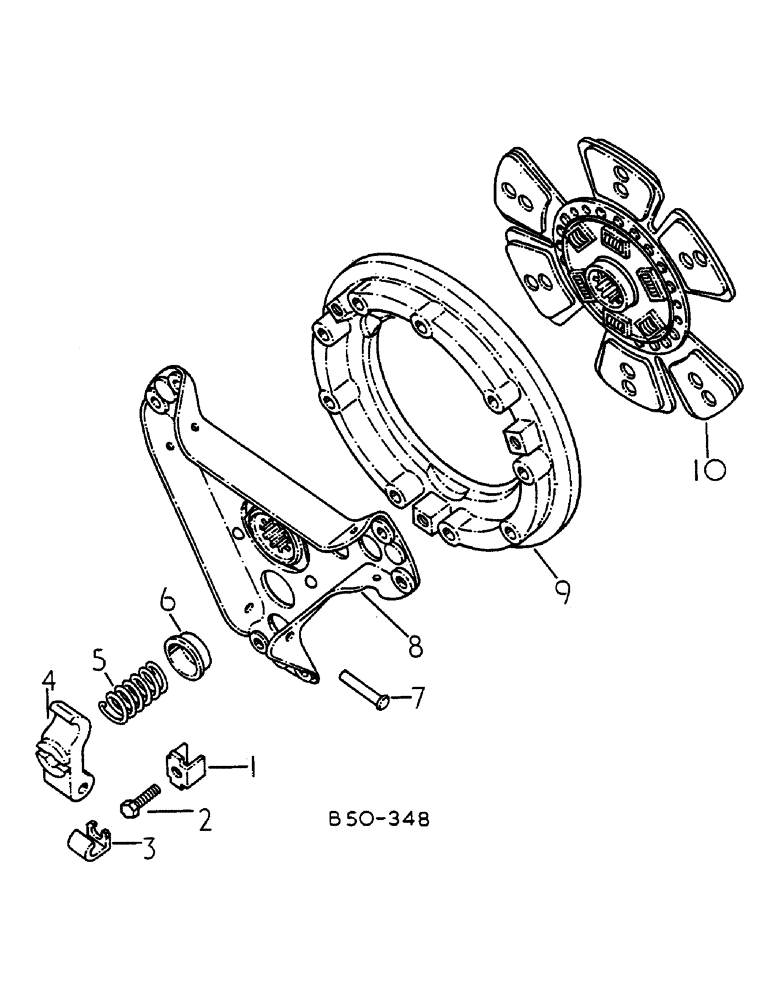

Схема запчастей Case IH 258 - (07-022) - CLUTCH, 584/7990 UP, 585/9000 UP, 258/676 UP (04) - Drive Train
4
7
8
6
1
10
3
9
5
2

Артикул

Название

Примечание

Количество

1500655C91

COVER ASSY

CLUTCH PRESSURE PLATE, INCLUDES SCREWS AND WASHERS, CONSISTS OF REF NOS 1 - 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

1500654C1

SUPPORT

KIT, WEAR CLIP

3шт.

2

69911C1

KIT

COVER PARTS, W/SCREW, CLIP, NUT AND WASHER

1шт.

2

1500653C1

KIT

COVER PARTS, W/SCREW, CLIPS AND NUT

1шт.

NUT 5/16-24 HEX

3шт.

3

CLIP, RETURN

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

CUP, SPRING

3шт.

7

PIN, PIVOT

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

3121507R92

CLUTCH & DISC ASSY

PLATE ASSY, DRIVEN

1шт.

Выбрано товаров: 15
