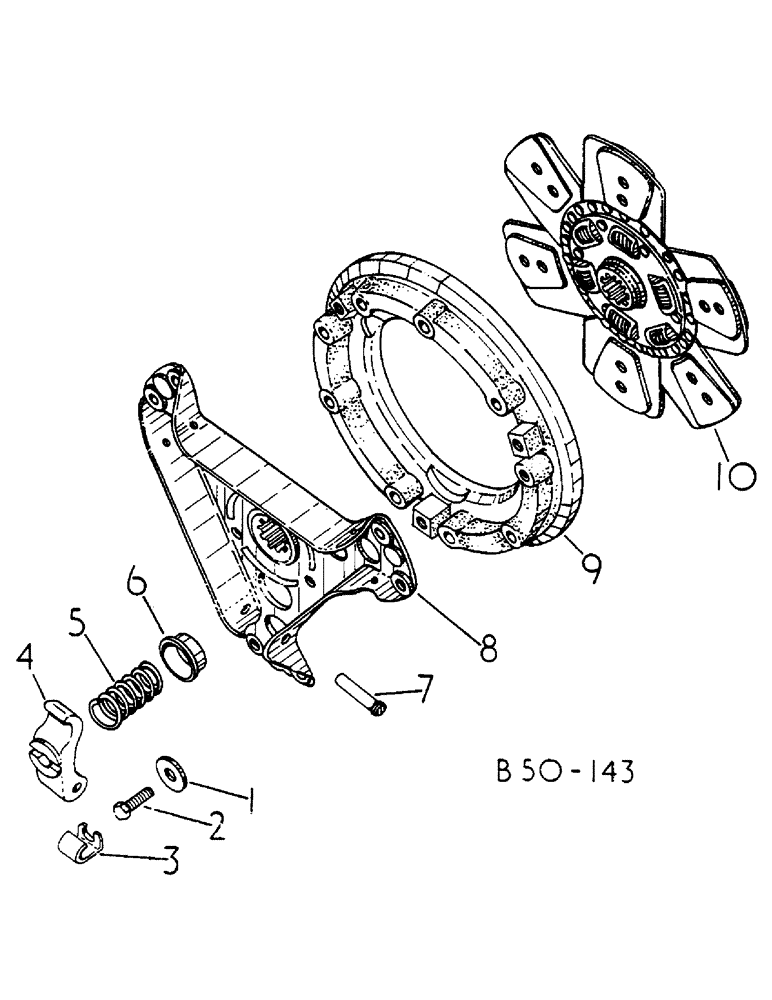

Запчасти Case IH 258 (07-020) - CLUTCH, FORWARD AND REVERSE, UP TO 584/7989, 585/8999, 258/675 (04) - Drive Train

70716C1

COVER ASSY

CLUTCH PRESSURE PLATE, INCLUDES SCREWS AND WASHERS, CONSISTS OF REF NOS 1 - 9

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

WASHER, NOT SERVICED

3шт.

2

69911C1

KIT

COVER PARTS, W/SCREW, CLIP, NUT AND WASHER

1шт.

NUT 5/16-24 HEX

3шт.

3

CLIP, RETURN, NOT SERVICED

3шт.

4

69912C1

KIT

LEVER AND PIVOT PIN

1шт.

5

69910C2

KIT

PRESSURE SPRING AND CUP

1шт.

6

CUP, SPRING, NOT SERVICED

3шт.

7

PIN, PIVOT, NOT SERVICED

3шт.

8

69914C1

HUB ASSY.

KIT, BRACKET

1шт.

9

69913C1

KIT

PRESSURE PLATE

1шт.

10

3121507R91

CLUTCH DISC

CLUTCH DISK PLATE ASSY, DRIVEN

1шт.
