Запчасти Case IH 258 (12-038) - FOOT ACCELERATOR, MACHINES NOT FITTED WITH CAB Power

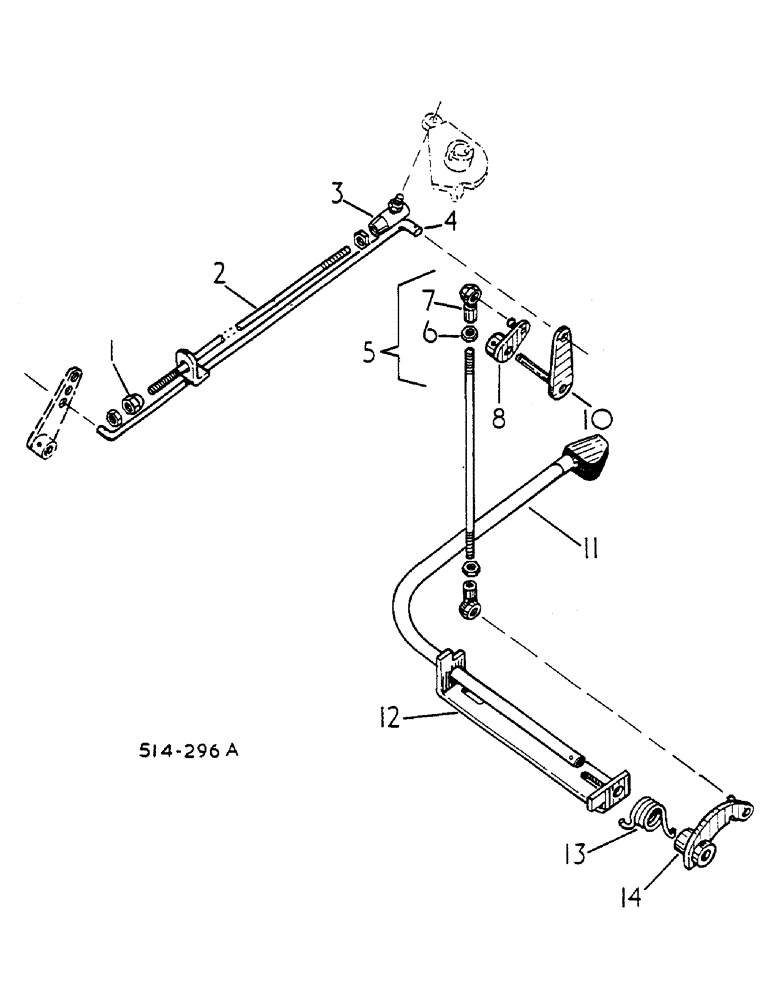

Схема запчастей Case IH 258 - (12-038) - FOOT ACCELERATOR, MACHINES NOT FITTED WITH CAB Power
6
2
7
10
14
5
12
4
8
13
1
11
3

Артикул

Название

Примечание

Количество

1

528776R1

NUT

FOOT ACCELERATOR PICKUP ROD SWIVEL, INCLUDES NUT

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528775R1

ROD

FOOT ACCELERATOR PICK UP

1шт.

3

191474R1

JOINT 1/4 UNF BALL

1шт.

192227

BALL JOINT

1/4 UNF

1шт.

27258R1

BALL JOINT

1/4 UN, OPTIONAL, INCLUDES NUT AND WASHER

1шт.

25-114

NUT,1/4"-28, G5

1/4 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

4

528767R1

ROD ASSY.

BELLCRANK, INCLUDES PINS

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

2шт.

5

532108R1

ROD ASSY.

CONNECTING

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

3068537R1

TRUNNION

END, CONNECTING ROD

2шт.

8

532104R1

LEVER ASSY.

BELLCRANK INNER

1шт.

9

NOT APPLICABLE

1шт.

10

532100R2

ARM ASSY.

BELLCRANK, INCLUDES SPACER, WASHERS AND PIN

1шт.

754603R1

SPACER

1шт.

120394

WASHER,3/8", SAE

13/32 X 13/16 X 051

2шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

11

532096R2

PEDAL ASSY.

FOOT ACCELERATOR

1шт.

12

532093R4

SUPPORT ASSY.

FOOT ACCELERATOR PEDAL, INCLUDES SCREWS AND NUTS

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

2шт.

13

532099R1

SPRING

FOOT ACCELERATOR PEDAL RETURN

1шт.

14

532102R1

LEVER ASSY.

BELLCRANK OUTER, INCLUDES PIN

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

Выбрано товаров: 26
