Запчасти Case IH 258 (04-018) - BRAKE RESERVOIR AND HOSES SYNCHRO, 6446 UP, 584 6405, 258 594 TO 597 599 UP (5.1) - BRAKES

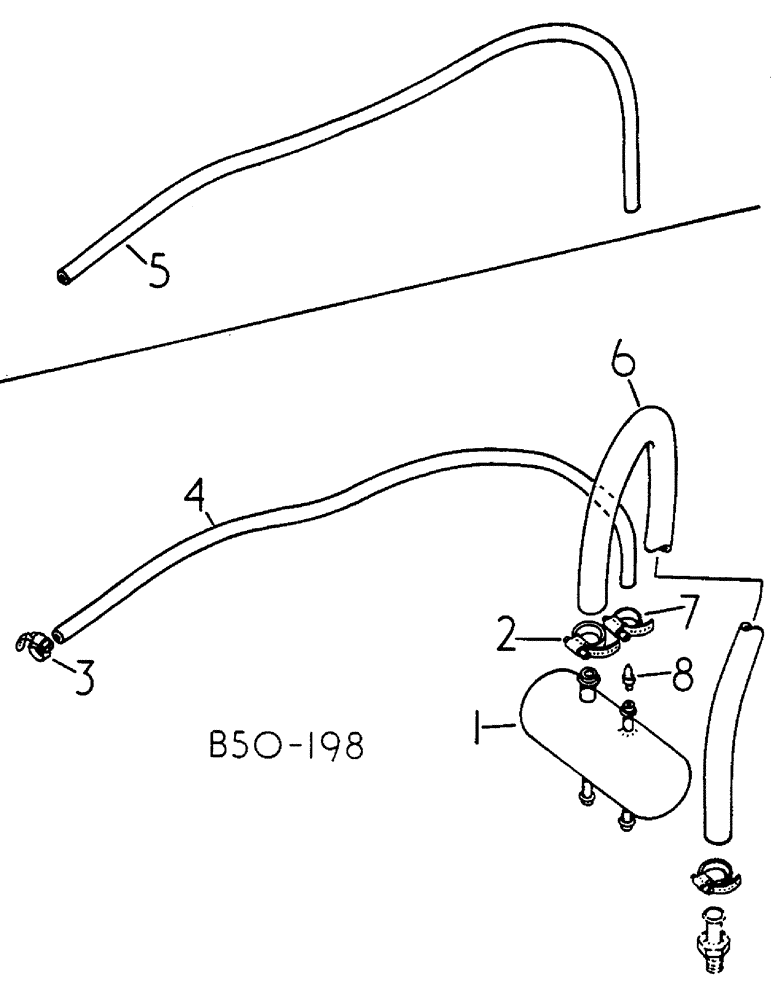

Схема запчастей Case IH 258 - (04-018) - BRAKE RESERVOIR AND HOSES SYNCHRO, 6446 UP, 584 6405, 258 594 TO 597 599 UP (5.1) - BRAKES
2
4
3
1
8
5
6
7

Артикул

Название

Примечание

Количество

1

3125839R1

RESERVOIR

BRAKE

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

NO 10

2шт.

2

3074617R1

CLAMP

HOSE, OPTIONAL

2шт.

3

3125239R91

CLAMP, WORM DRIVE HOSE

1шт.

4

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

BRAKE RESERVOIR SUPPLY, MACHINES W/CAB

1шт.

5

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

BRAKE RESERVOIR SUPPLY, MACHINES W/OUT CAB

1шт.

6

3125842R1

HOSE,13.50 mm ID x 250.00 mm, SAE 100R6 Class 14

BRAKE RESERVOIR DUMP

1шт.

7

3125239R91

CLAMP, WORM DRIVE HOSE

1шт.

8

537518R1

SCREEN

AND ORIFICE ASSY, BRAKE

1шт.

Выбрано товаров: 9
