Запчасти Case IH 258 (12-004) - AIR CLEANER AND CONNECTIONS, 585/5351 UP, 258/523 UP Power

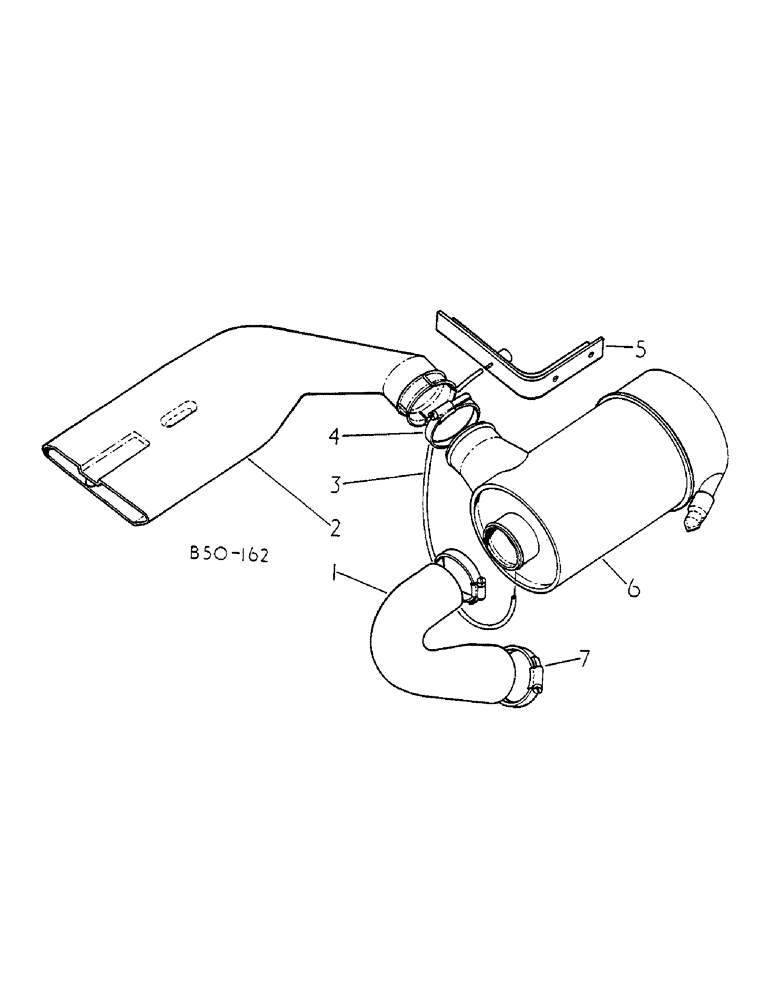

Схема запчастей Case IH 258 - (12-004) - AIR CLEANER AND CONNECTIONS, 585/5351 UP, 258/523 UP Power
6
2
7
4
1
3
5

Артикул

Название

Примечание

Количество

1

3113612R1

INTAKE AIR HOSE,63.50 mm ID, 69.85 mm ID x 228.60 mm

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

3123825R2

TUBE

NYLON

1шт.

4

21423R1

CLAMP

3-5/16 HOSE

1шт.

5

3121420R1

SUPPORT

BRACKET, AIR CLEANER MOUNTING, INCLUDES SCREWS, WASHERS AND CLIP

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

3116918R1

CABLE CLIP

1шт.

6

CLEANER ASSY, AIR, FOR DETAILS OF COMPONENT PARTS SEE DETAIL LIST OF PARTS UNDER AIR CLEANER, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

7

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

NO 44 HOSE

2шт.

Выбрано товаров: 13
