Запчасти Case IH 258 (09-020) - SWINGING DRAWBAR (12) - FRAME

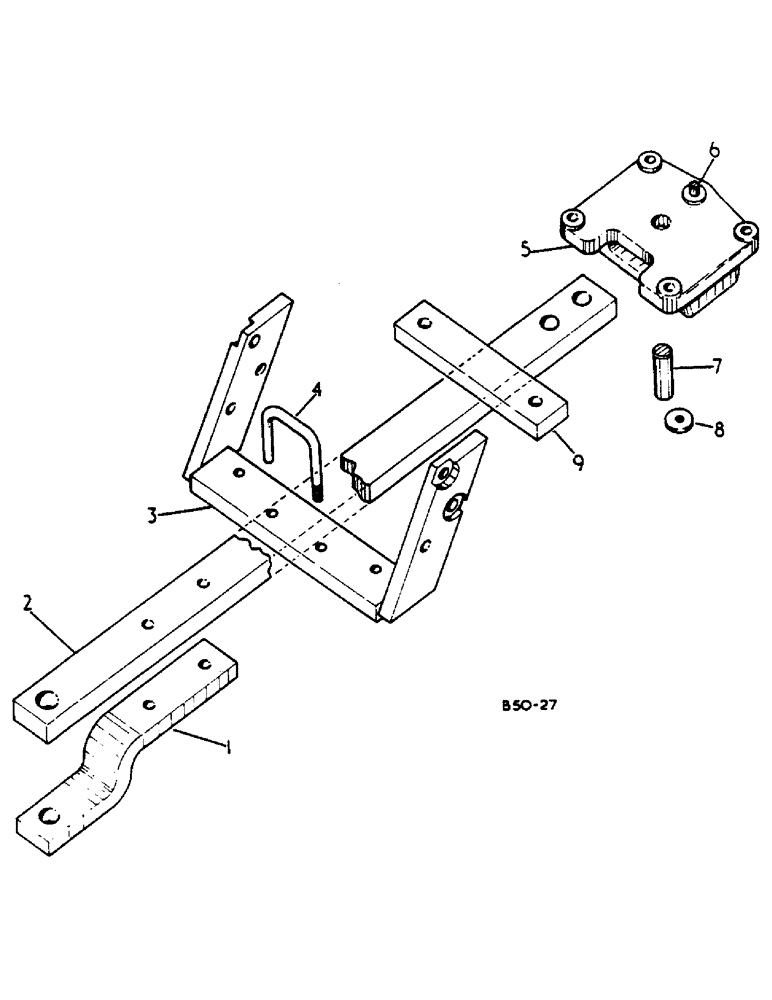

Схема запчастей Case IH 258 - (09-020) - SWINGING DRAWBAR (12) - FRAME
6
9
3
2
5
1
8
7
4

Артикул

Название

Примечание

Количество

ATTACHMENT, SWINGING DRAWBAR

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS, INCLUDES SCREWS AND NUTS

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 HEX HD CAP

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

406467R2

DRAWBAR, SWINGING

HITCH

1шт.

3

3129483R1

DRAWBAR SUPPORT

ASSY, SWINGING, INCLUDES SCREWS

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

4шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD CAP, FOR USE WITH SUPPORT ASSY 3121223R2

4шт.

4

406470R1

AXLE PIN

DRAWBAR, INCLUDES NUTS

1шт.

19798R1

LOCK NUT,9/16"-12, GB

W/NYLON INSERT 9/16-12 HEX

1шт.

530408R1

NUT

W/NYLON INSERT 9/16-12 HEX, OPTIONAL

1шт.

5

406468R21

SUPPORT ASSY.

DRAWBAR PIVOT, INCLUDES BOLTS, WASHERS AND SCREWS

1шт.

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1/2-13 X 2 HEX HD

4шт.

3061325R1

WASHER

HARDENED, S/N 585/10130 Q 258/813 UP

4шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

1/2-13 X 1-5/8 HEX HD CAP

4шт.

103323

LOCK WASHER,1/2"

Up to S/N 585/10129 Q 258/812

4шт.

6

19846R1

DOWEL,1/2" x 1 1/4"

PIN

1шт.

7

406469R1

PIN

DRAWBAR STOP, UP TO S/N 585/10129 Q 258/812

1шт.

7

1502366C1

PIVOT PIN

DRAWBAR STOP, S/N 585/10130 Q 258/813

1шт.

8

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, DRAWBAR STOP, INCLUDES SCREW AND WASHER

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

9

3121277R1

BAR

DRAWBAR BUMPER, INCLUDES SCREWS

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 X 1-1/4 HEX HD CAP

2шт.

Выбрано товаров: 24
