Запчасти Case IH 258 (12-002) - AIR CLEANER AND CONNECTIONS, UP TO 585-3530, UP TO 258 Power

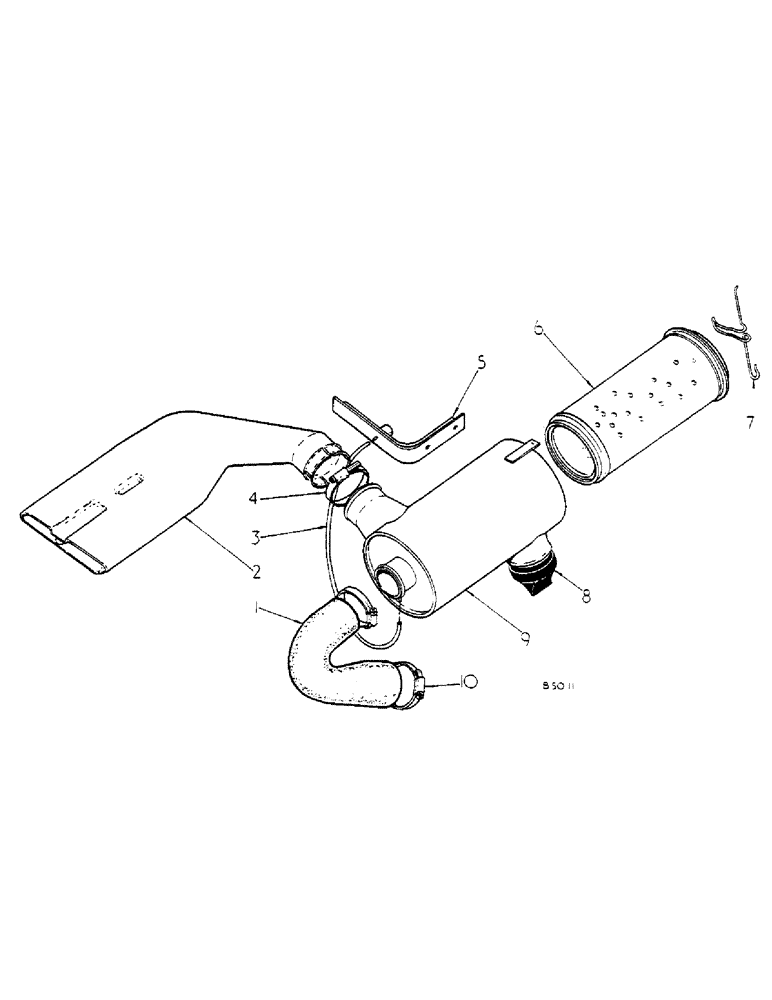

Схема запчастей Case IH 258 - (12-002) - AIR CLEANER AND CONNECTIONS, UP TO 585-3530, UP TO 258 Power
6
9
1
5
3
8
10
2
7
4

Артикул

Название

Примечание

Количество

1

3113612R1

INTAKE AIR HOSE,63.50 mm ID, 69.85 mm ID x 228.60 mm

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

3123825R2

TUBE

NYLON

1шт.

4

21423R1

CLAMP

3-5/16 HOSE

1шт.

4

539994R1

CLAMP

3-5/16 HOSE, OPTIONAL

1шт.

5

3121420R1

SUPPORT

BRACKET, AIR CLEANER MOUNTING, INCLUDES SCREWS AND WASHERS

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

6

529854R1

ELEMENT

ASSY

1шт.

7

3118679R1

RETAINER

CLAMP, AIR CLEANER

1шт.

8

529855R1

VALVE

DUST UNLOADER

1шт.

9

NS

NOT SERVICED

CLEANER, AIR, INCLUDES SCREWS, NUTS, WASHERS AND ITEMS 6, 7 AND 8

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

10

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

NO 44 HOSE

2шт.

Выбрано товаров: 16
