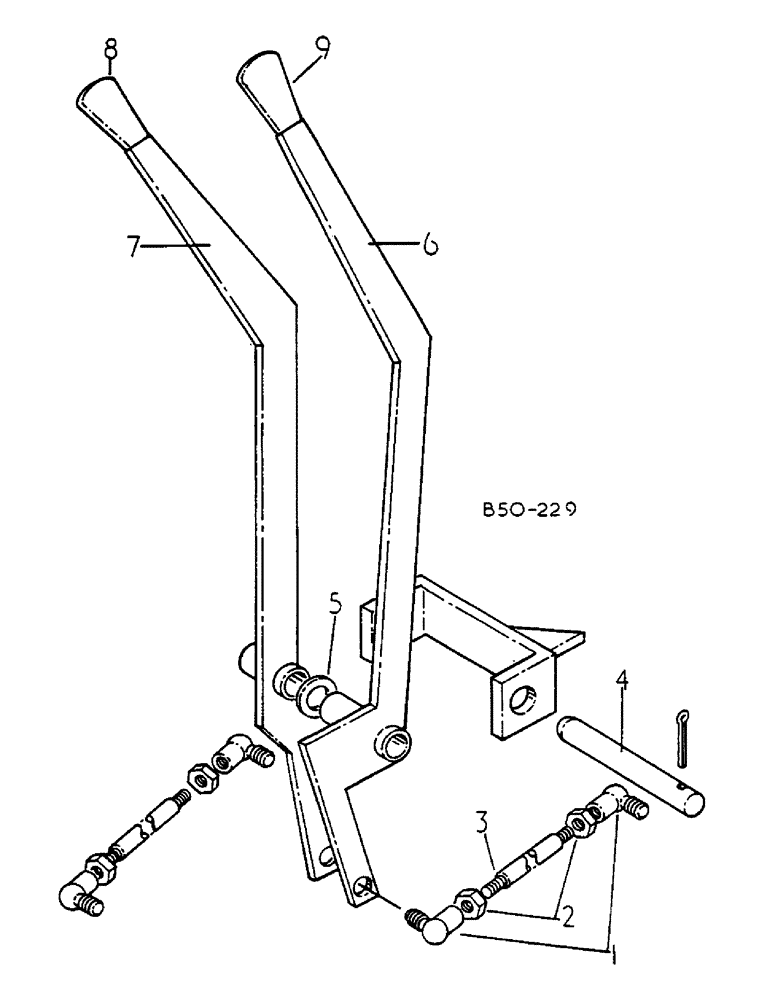

Запчасти Case IH 258 (10-035) - DRAFT CONTROL, DE-LUXE CAB (07) - HYDRAULICS

1

3125525R1

JOINT

BALL, INCLUDES WASHERS

4шт.

95-11028

WASHER,1/4"

1/4

4шт.

2

30208R1

NUT,M6, Cl 10

M6

4шт.

3

3125619R1

ROD

CONNECTING

2шт.

4

3125621R1

SHAFT

POSITION CONTROL, INCLUDES PINS

1шт.

3125616R1

PIN

3 X 25 COTTER

2шт.

5

496-21047

WASHER

7/16

1шт.

6

3125662R1

PLUG

SPARE PART LEVER, POSITION CONTROL

1шт.

7

3125623R1

LEVER

SPARE PART DRAFT CONTROL

1шт.

8

400068R1

BUTTON

BALL

1шт.

9

400072R1

BUTTON

BALL

1шт.
