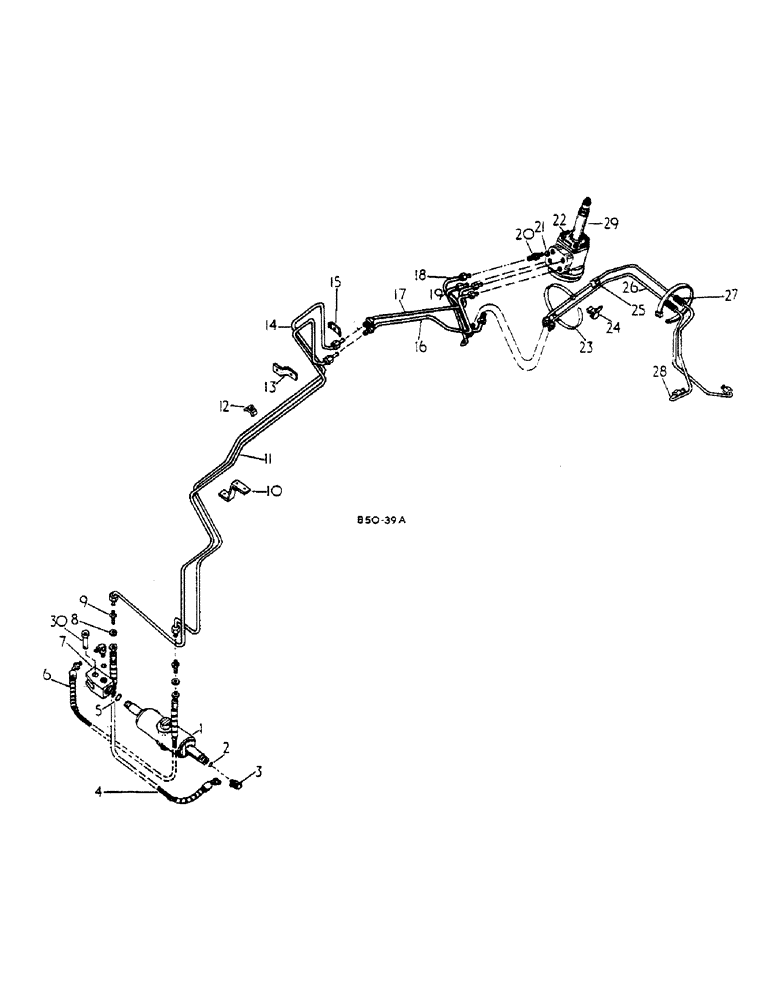

Запчасти Case IH 258 (10-010) - POWER STEERING (07) - HYDRAULICS

1

CYLINDER ASSY, HYD PS, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING CYLINDER

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED

1шт.

4

3121235R1

HOSE

ASSY, POWER STEERING CYL R H

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

6

3121235R1

HOSE

ASSY, POWER STEERING CYL L H

1шт.

7

3125306R1

CLEVIS,9/16" - 18

CYL END, 5941 UP, 258-566 UP

1шт.

7

549670R2

CLEVIS,3/4" - 16

CYL END 3/4 THREAD, UP TO 5940, UP TO 258-565

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z BULKHEAD UNION

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 DEG HYD FLARED TUBE, INCLUDES WASHERS

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

FRONT MANIFOLD SUPPORT CRT, INCLUDES NUT

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

66109C1

PIPE

TUBE ASSY, POWER STEERING R H FOWARD

1шт.

12

384891R11

CLAMP

ASSY, POWER STEERING TUBE, INCLUDES SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 HEX HD CAP

2шт.

103319

LOCK WASHER,1/4"

2шт.

13

529642R1

BRACKET

FRONT MANIFOLD, INCLUDES NUT AND WASHER

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

1шт.

14

66107C1

PIPE

TUBE ASSY, POWER STEERING L H FORWARD

1шт.

15

384891R11

CLAMP

ASSY, POWER STEERING TUBE

1шт.

16

3116268R2

TUBE ASSY.

POWER STEERING R H REAR

1шт.

3125513R1

NIPPLE, LUBE

NIPPLE GROMMET

1шт.

16

3123903R1

HOSE

POWER STEERING, REAR, SUPER DE-LUXE CAB

1шт.

17

3116267R1

TUBE ASSY.

POWER STEERING L H -REAR-

1шт.

3125513R1

NIPPLE, LUBE

NIPPLE GROMMET

1шт.

17

3123903R1

HOSE

POWER STEERING, REAR, SUPER DE-LUXE CAB

1шт.

18

3116272R2

TUBE ASSY.

POWER STEERING RETURN FWD, MACHINE NOT FITTED W/CAB

1шт.

18

3116829R91

HOSE ASSY.

POWER STEERING RETURN FORWARD, MACHINE FITTED W/CAB

1шт.

3125553R1

GROMMET

SPARE PART

1шт.

18

3123917R1

HOSE

POWER STEERING, FRONT, SUPER DE-LUXE CAB

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

POWER STEERING PRESSURE FORWARD, MACHINE NOT FITTED W/CAB

1шт.

19

3116830R91

HOSE ASSY.

POWER STEERING PRESSURE FORWARD, MACHINE FITTED W/CAB

1шт.

3125553R1

GROMMET

SPARE PART

1шт.

19

3123917R1

HOSE

POWER STEERING, FRONT, SUPER DE-LUXE CAB

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

4шт.

22

VALVE ASSY, INTEGRAL POWER STEERING, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE

1шт.

23

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in

2шт.

24

529638R1

BRACKET

1шт.

25

529637R1

GUIDE

1шт.

26

66105C1

TUBE ASSY.

POWER STEERING PRESSURE REAR, 584

1шт.

26

3129256R1

TUBE ASSY.

POWER STEERING PRESSURE REAR, 585

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Spacer

2шт.

28

3129257R1

TUBE ASSY.

POWER STEERING RETURN REAR, 585

1шт.

28

66104C1

PIPE

TUBE ASSY, POWER STEERING RETURN REAR, 584, MACHINE NOT FITTED W/CAB, SUPER DE-LUXE CAB

1шт.

28

3129273R1

TUBE ASSY.

POWER STEERING RETURN REAR, 585

1шт.

28

3116828R1

TUBE ASSY.

POWER STEERING RETURN REAR, 584, INCLUDES ELBOW

1шт.

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 HYD 37 DEG FLARED TUBE SWIVEL, M C VALVE, MACHINE FITTED W/CAB

1шт.

29

3121187R91

SHAFT

STEERING W/NUT, INCLUDES NUT, SPACERS AND SCREWS

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

3125305R1

PIN

POWER STEERING, 5941 UP, 258-566 UP

1шт.

30

67488C2

PIN

POWER STEERING CYL, UP TO 5940, UP TO 258-565, INCLUDES COTTER PIN AND FITTING

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING 3/16 STR DRIVE TYPE CAB

1шт.

3129261R1

BRACKET

PIPE RETAINING, NOT ILLUSTRATED

1шт.
