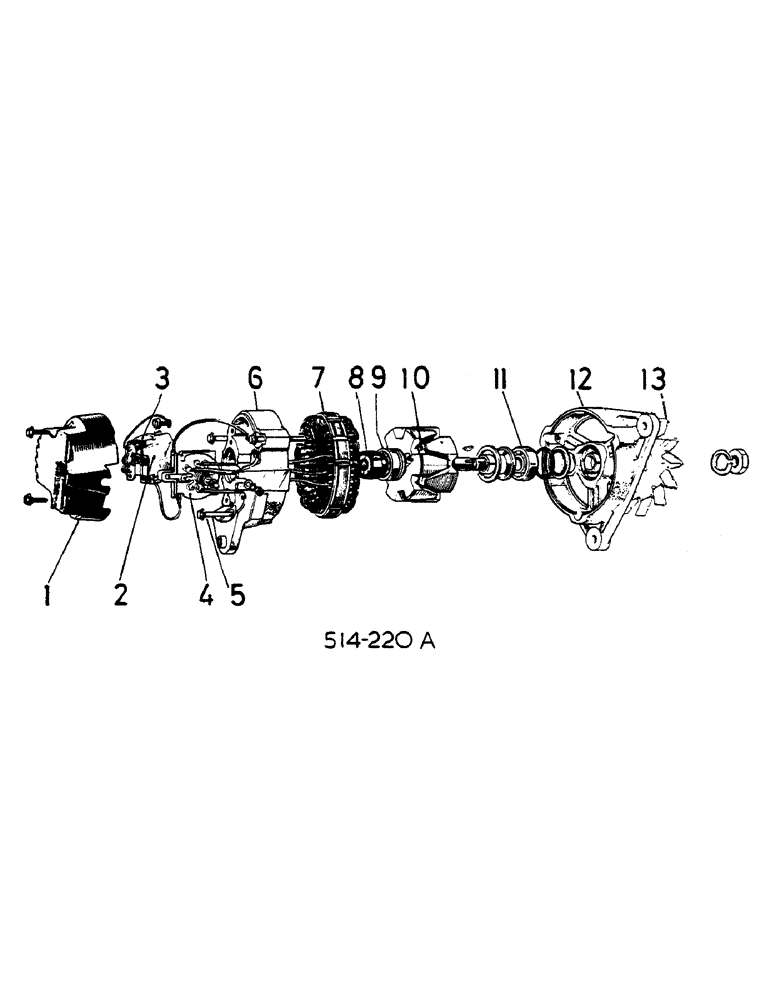

Запчасти Case IH 258 (08-012) - ALTERNATOR (06) - ELECTRICAL

*

ALTERNATOR, LUCAS 15 ACR, LUCAS NO 54021569

1шт.

*

3125132R92

ALTERNATOR

LUCAS 17 ACR, LUCAS NO 23962

1шт.

*

92293C1R

REMAN-ALTERNATOR

Reman For New PN 3125132R92

1шт.

*

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY W/BRUSH KIT 3116099R91, INCLUDES BRUSH KIT

1шт.

*

3116099R91

BRUSH SET

KIT

1шт.

3

3116087R2

REGULATOR

1шт.

4

3116088R1

RECTIFIER

1шт.

5

3116095R1

BOLT

FIXING

3шт.

6

3116092R1

BRACKET

SRE

1шт.

7

3116093R1

STATOR

15 ACR ALTERNATOR

1шт.

7

3125134R1

STATOR

SPARE PART 7 ACR ALTERNATOR

1шт.

8

3116097R1

RING

SLIP

1шт.

9

3116098R1

KIT

BEARING, SRE

1шт.

10

3125130R91

ROTOR ASSY.

15 ACR ALTERNATOR

1шт.

10

3125133R91

ROTOR ASSY.

17 ACR ALTERNATOR, W/RING 3116097R1 AND BEARING 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT, DE

1шт.

12

3116089R91

BRACKET

DRIVE END

1шт.

13

3117067R1

FAN

ALTERNATOR

1шт.

*

3116090R91

KIT

SPARE PART PARTS SUNDRY, NOT ILLUSTRATED

1шт.

*

3123891R1

RECTIFIER

15 ACR ALTERNATOR, NOT ILLUSTRATED

1шт.

*

3118367R1

RECTIFIER

NOT ILLUSTRATED

1шт.

*

3125297R1

CAPACITOR

17 ACR ALTERNATOR, NOT ILLUSTRATED

3шт.
