Запчасти Case IH 258 (02-004) - PRODUCT GRAPHICS - NOT ILLUSTRATED - PACKAGES Accessories & Attachments / Miscellaneous

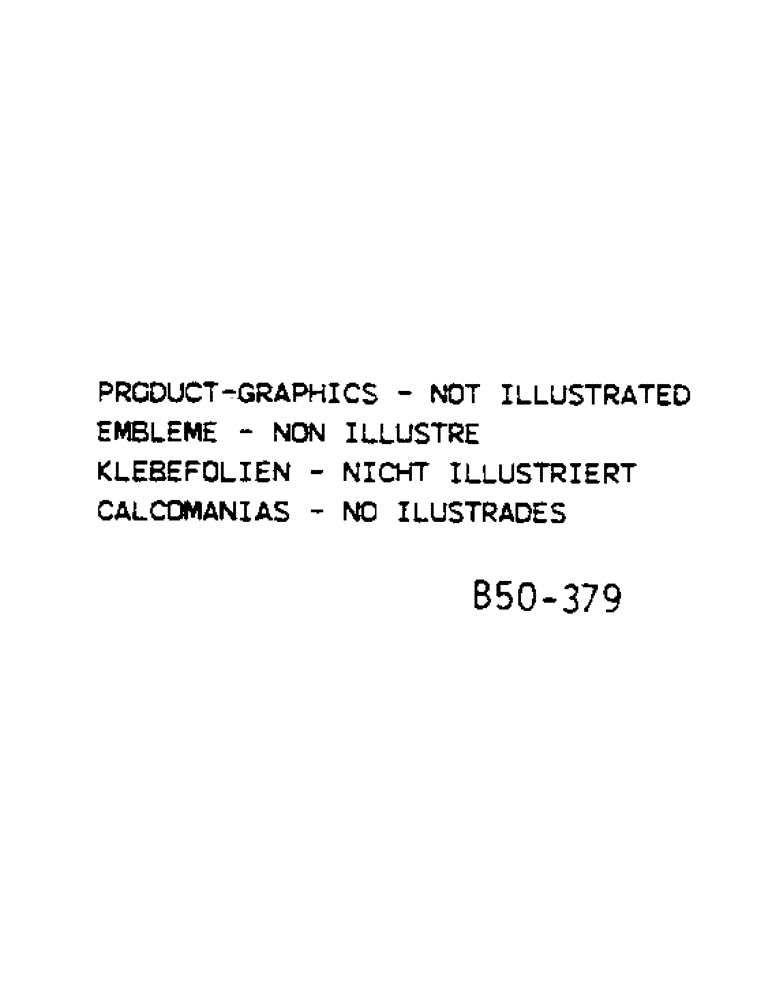

Схема запчастей Case IH 258 - (02-004) - PRODUCT GRAPHICS - NOT ILLUSTRATED - PACKAGES Accessories & Attachments / Miscellaneous

Артикул

Название

Примечание

Количество

1135260R1

PRODUCT GRAPHIC

584 INTERNATIONAL L H

1шт.

1135261R1

PRODUCT GRAPHIC

584 INTERNATIONAL R H

1шт.

1093334R1

PRODUCT GRAPHIC

SPARE PART 258 INTERNATIONAL L H

1шт.

1093335R1

PRODUCT GRAPHIC

SPARE PART 258 INTERNATIONAL R H

1шт.

533597R1

DECAL

SKIDDED UNIT, NO PLATE

1шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

NO 4 X 1/4 METAL DRIVE

2шт.

3108310R1

PRODUCT GRAPHIC

SPARE PART MODEL AND SERIAL NUMBER PLATE

1шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

NO 4 X 1/4 METAL DRIVE

2шт.

1092745R2

DECAL

CAUTION INSTRUCTION

1шт.

533864R1

PRODUCT GRAPHIC

DIESEL FUEL

1шт.

533592R1

PRODUCT GRAPHIC

GOVERNOR CONTROL

1шт.

537665R1

DECAL

TRANSMISSION CONTROL - 585

1шт.

533762R1

PRODUCT GRAPHIC, PTO AND RAISE RESPONSE GUIDE, INDUSTRIAL

1шт.

537662R1

PRODUCT GRAPHIC

PTO AND RAISE RESPONSE GUIDE - 584

1шт.

537663R1

PRODUCT GRAPHIC

DROP RESPONSE GUIDE

1шт.

537664R1

PRODUCT GRAPHIC

DRAFT CONTROL GUIDE

1шт.

1093228R1

PRODUCT GRAPHIC

PATENT

1шт.

533596R1

PRODUCT GRAPHIC

FUEL CONT DIESEL, UP TO 585/9260

1шт.

1135126R1

PRODUCT GRAPHIC

FUEL CONTROL, 585/9270 UP

1шт.

1093352R1

DECAL

TAG, ALTERNATOR CAUTION

1шт.

1093170R1

PRODUCT GRAPHIC

POWER STG PERSONNEL SAFETY

1шт.

1093171R1

DECAL

PRODUCT OPERATION WARNIC INSTR

1шт.

1093172R1

PRODUCT GRAPHIC

INSTRUCTION

1шт.

1093300R1

DECAL

SPARE PART ENGINE OIL INSTRUCTION, INDUSTRIAL

1шт.

1093173R1

PRODUCT GRAPHIC

FUEL FILTER AND WATER SEPARATOR INSTRUCTIONS

1шт.

1093301R1

PRODUCT GRAPHIC

FUEL FILTER AND WATER SEPARATOR INSTRUCTIONS, INDUSTRIAL

1шт.

1093174R1

PRODUCT GRAPHIC

ALTERNATOR

1шт.

1093175R1

PRODUCT GRAPHIC

ANTI-FREEZE

1шт.

1093302R1

PRODUCT GRAPHIC

ANTI-FREEZE, INDUSTRIAL

1шт.

1135408R1

PRODUCT GRAPHIC, FUSE BOX SYMBOLS, 584/85 UP, 258/664 UP

1шт.

1093372R1

PRODUCT GRAPHIC

FUSE BOX SYMBOLS, UP TO 584/7809, 258/663

1шт.

2754343R1

PRODUCT GRAPHIC

INTERNATIONAL, MACHINES FITTED W/DE-LUXE CAB

1шт.

1092182R1

PRODUCT GRAPHIC, CAUTION, MACHINES FITTED W/DE-LUXE CAB

1шт.

1093373R1

PRODUCT GRAPHIC

FUSE BOX SYMBOLS

1шт.

1135102R1

PRODUCT GRAPHIC

PTO RAISE AND RESPONSE GUIDE, 585

1шт.

1135097R1

DECAL

1ST/2ND SPEED, 585

1шт.

1135098R1

DECAL

3RD/4TH SPEED, 585

1шт.

1135100R1

DECAL

RANGE-LOW Q REVERSE, 585

1шт.

1135101R1

DECAL

RANGE HIGH, 585

1шт.

1135240R1

PRODUCT GRAPHIC

INTERNATIONAL A585 L H

1шт.

1135241R1

PRODUCT GRAPHIC

INTERNATIONAL 585 R H

1шт.

1135299R1

PRODUCT GRAPHIC

TORQUE AMPLIFIER

2шт.

539536R91

PACKAGE, BRAKE O-RING SERVICE - AS REQUIRED, CONSISTS OF 2 O-RINGS - 343932R1, 2 O-RINGS - 21472R1, 2 O-RINGS - 289506R1

1шт.

3118177R91

PACKAGE, FILTER ELEMENT, CONSISTS OF

1шт.

ELEMENT, HYDRAULIC OIL FILTER

6шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

Oil filter case

6шт.

375271R1

O-RING,0.426" ID x 0.07" Width

FILTER CASE SEAL

6шт.

3044506R93

FILTER, FUEL

ELEMENT

2шт.

3144477R92

FILTER

ELEMENT, FUEL, OPTIONAL

2шт.

3136046R93

FILTER, ENGINE OIL

FILTER, OIL SPIN-ON

6шт.
