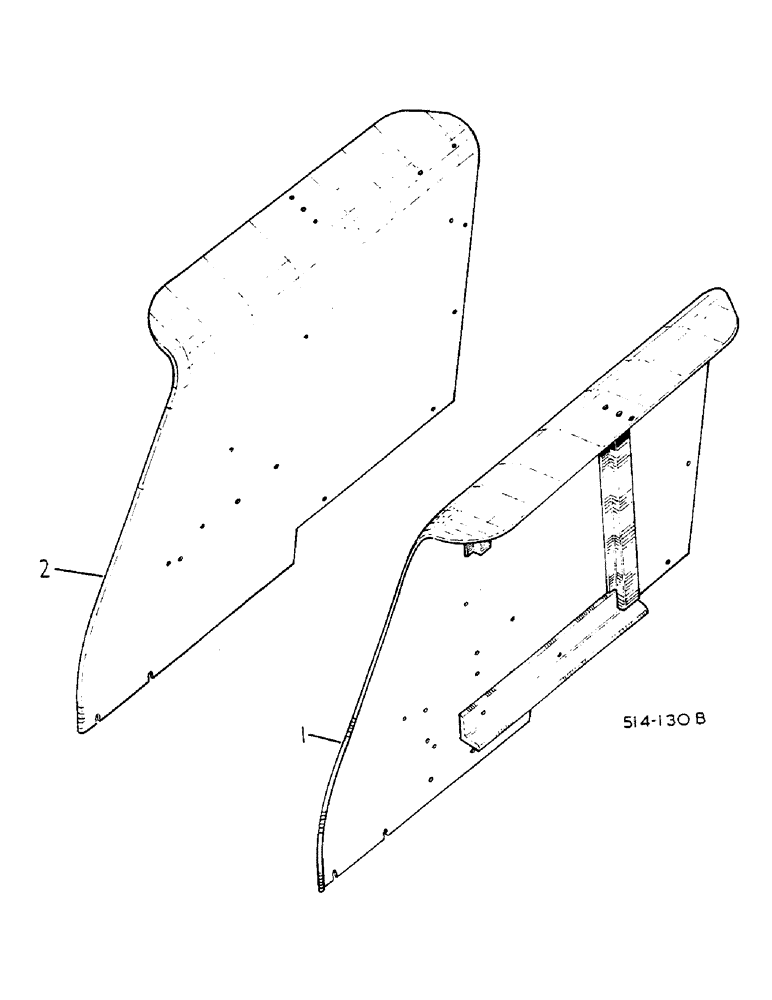

Запчасти Case IH 258 (13-017) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

1

538641R4

FENDER ASSY.

L H, W/PRODUCT GRAPHIC

1шт.

2

530015R5

FENDER

R H, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

To rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

To transmission shift housing or draft control housing

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

3113657R1

PLUG

SIDE AND TAIL LIGHT BLANKING, NOT ILLUSTRATED

4шт.

3113430R1

PLUG

SIDE AND TAIL LIGHT BLANKING, NOT ILLUSTRATED

2шт.

3112888R1

PLUG

BLANKING, NOT ILLUSTRATED

1шт.

531625R1

GROMMET

NOT ILLUSTRATED

2шт.

3125820R1

SLEEVE

PVC, FOR USE W/FENDER ASSY'S, NOT ILLUSTRATED

2шт.
