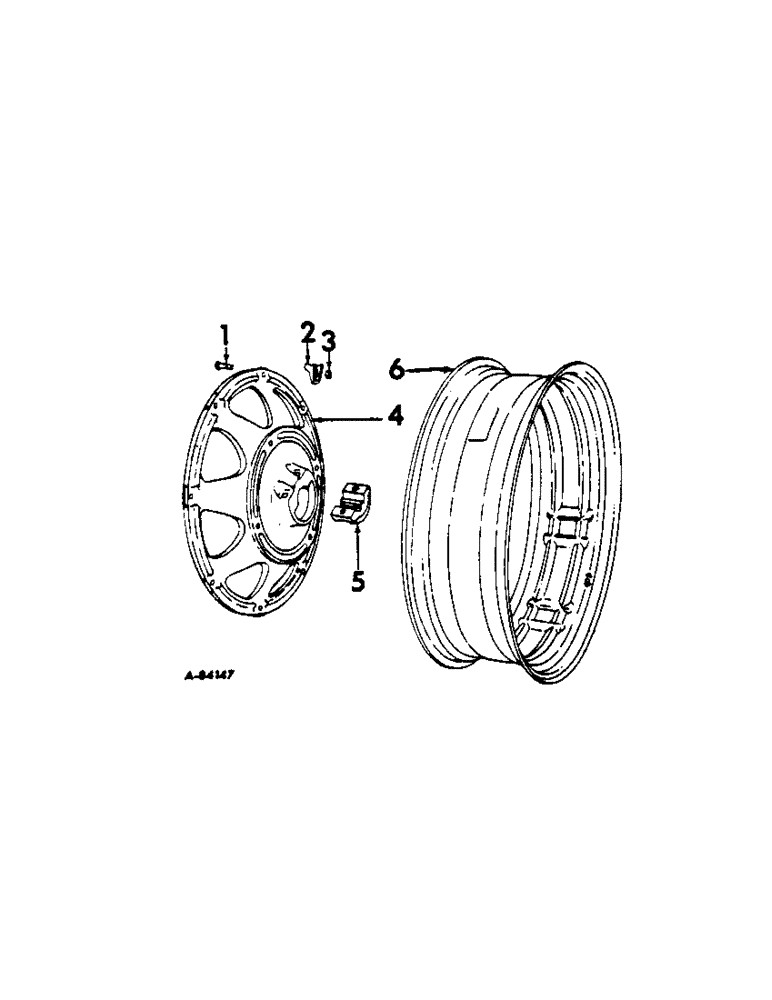

Запчасти Case IH 2544 (L-10) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS WITH DEMOUNTABLE RIMS, FARMALL TRACTORS Wheels & Wheel Weights

1

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

2

381725R1

SHIN

CLAMP, rear wheel rim adjustable

12шт.

2

381726R1

SHIN

CLAMP, rear wheel rim fixed

4шт.

3

363018R1

NUT

rim clamp

16шт.

4

392415R1

WHEEL

ASSY, rear

2шт.

5

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

8шт.

6

383691R1

RIM

rear wheel, WH12-38 rim for 13.6-38 or 14.9-38 tire

2шт.

6

380869R1

RIM

rear wheel, WH14L rim for 15.5-38 tire

2шт.
