(L-09) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, INTERNATIONAL ROW CROP TRACTORS

Запчасти Case IH 2544 (L-09) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, INTERNATIONAL ROW CROP TRACTORS Wheels & Wheel Weights

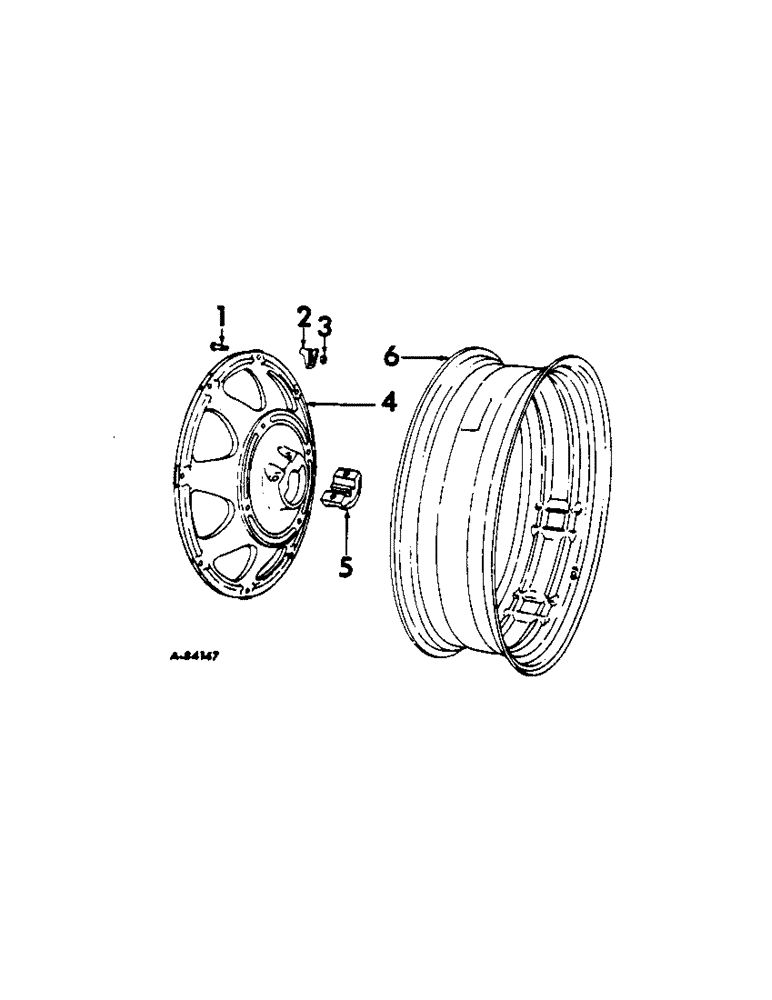

Схема запчастей Case IH 2544 - (L-09) - WHEELS AND WHEEL WEIGHTS, REAR WHEELS, INTERNATIONAL ROW CROP TRACTORS Wheels & Wheel Weights
2
5
3
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

2

381725R1

SHIN

CLAMP, rear wheel rim adjustable

12шт.

2

381726R1

SHIN

CLAMP, rear wheel rim fixed

4шт.

3

363018R1

NUT

rim clamp

16шт.

4

392415R1

WHEEL

ASSY, rear

2шт.

5

389539R1

CLAMP

rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 hex-hd cap

8шт.

6

383691R1

RIM

rear wheel, WH12-38 rim for 13.6-38 tire

2шт.
