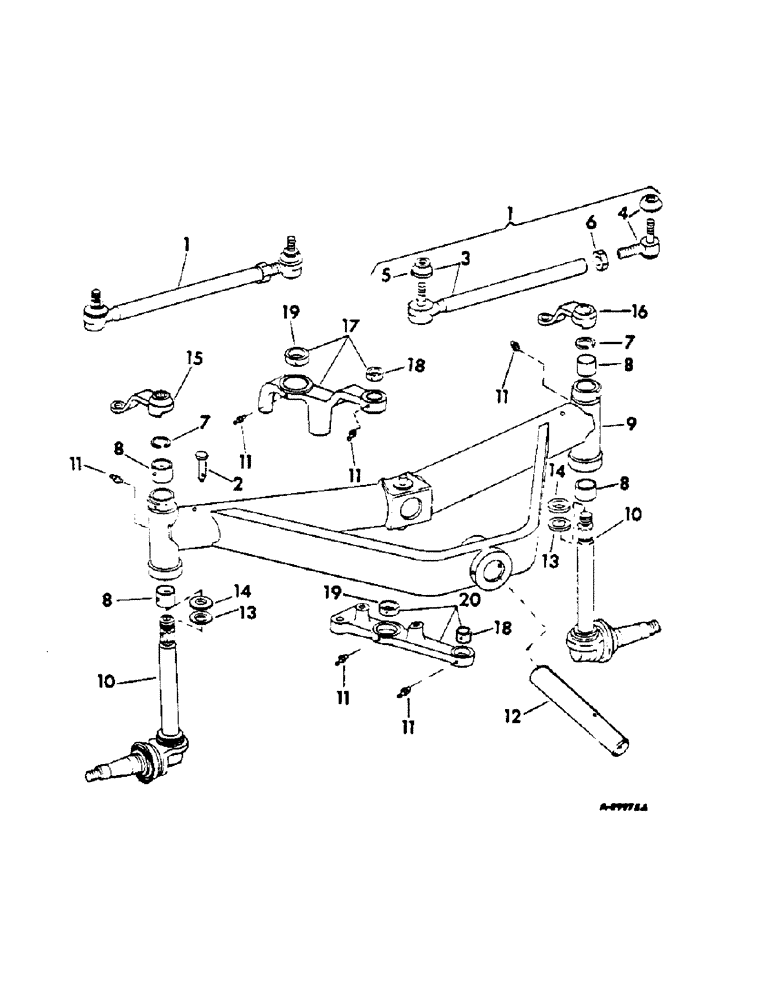

Запчасти Case IH 2544 (J-23) - STEERING MECHANISM, HEAVY DUTY FIXED TREAD FRONT AXLE, INTERNATIONAL TRACTORS Steering Mechanism

NSS

NOT SOLD SEPARAT

SERVICE PARTS for heavy duty front axle, consists of all unmarked parts and those marked unit A, Serial Range: -14194

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS for heavy duty front axle, consists of all unmarked parts and those marked unit B, Start Serial: 14195

1шт.

1

380317R92

BAR

ROD ASSY, tie

2шт.

578274R1

WASHER

21/32 x 1 x 11 ga

4шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

2шт.

2

385151R1

PIN

cylinder mounting bracket, unit B

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

3

382569R92

ROD

TUBE AND SOCKET ASSY, tie rod

1шт.

4

382570R92

KNEE JOINT

END ASSY, tie rod

2шт.

5

382562R1

SEAL

dust

4шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

4шт.

6

379329R1

LOCK NUT

lock RH

2шт.

7

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining, 2 for unit B

1шт.

8

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle post

4шт.

9

396313R92

AXLE ASSY, front

1шт.

10

406267R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, composed of (1) knuckle 374386R1 (NSS), (1) pin 406264R2 (NSS), (1) seal 370254R91, (1) shield 48701D

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

2шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub

6шт.

12

400547R1

SHAFT

front axle, unit B

1шт.

21585R1

HEADED PIN,5/16" x 4 1/4"

PIN, 5/16 x 4-1/4 headed

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

13

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt, 2 for unit B

1шт.

14

369131R91

THRUST BEARING

steering knuckle thrust, 2 for unit B

1шт.

15

379643R1

LEVER

ARM, steering knuckle RH, unit B

1шт.

16

379642R1

LEVER

ARM, steering knuckle LH, unit B

1шт.

17

379553R11

LEVER

ARM ASSY, upper cyl support, unit B

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 hex-hd cap

2шт.

18

379554R1

BUSHING,25.43mm ID x 28.57mm OD x 19.05mm L

BUSHING, cyl support arm front, 2 for unit B

1шт.

19

379748R1

BUSHING

cyl arm rear, 2 for unit B

1шт.

20

379555R11

LEVER

ARM ASSY, lower cyl support, unit B

1шт.

179891

SHAFT

SCREW, 1/2-13 x 2-1/2 hex-hd cap

2шт.
