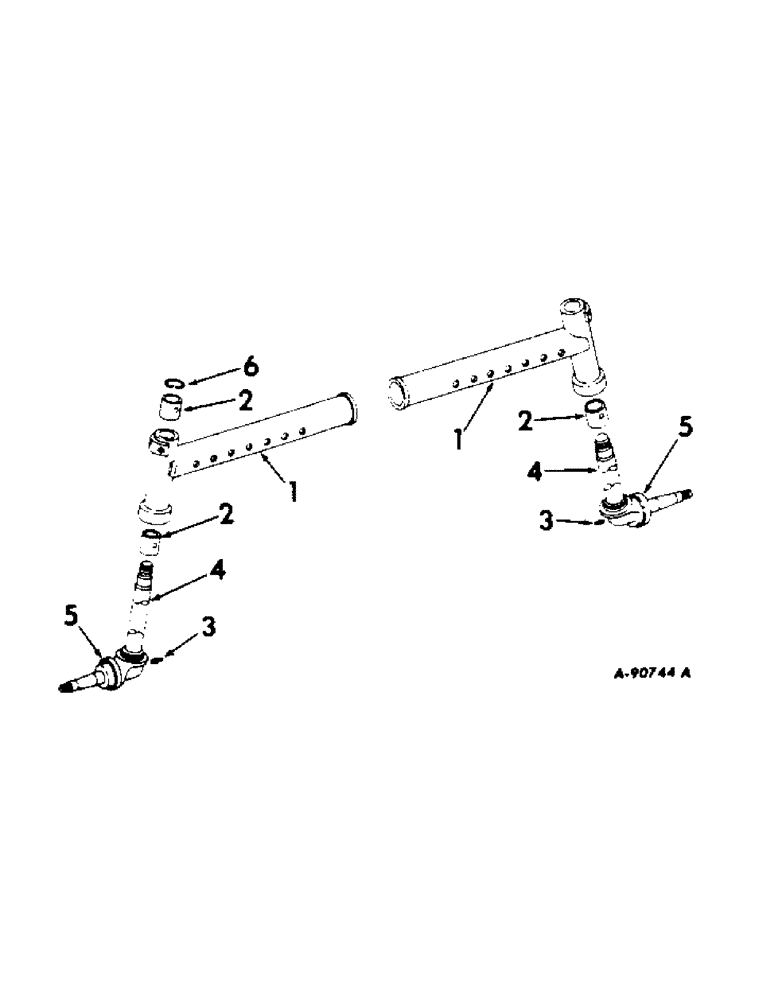

Запчасти Case IH 2544 (J-22) - STEERING MECHANISM, FRONT AXLE EXTENSION, INTERNATIONAL ROW CROP TRACTORS Steering Mechanism

1

397059R91

EXTENSION ASSY, front axle

1шт.

2

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, steering knuckle pivot pin 3/16 str dr lub

1шт.

4

530338R92

KNUCKLE ASSY, steering, also order ring, 146008R1 on tractors, composed of (1) knuckle 374386R1 (NSS), (1) pin 406263R1 (NSS), (1) shield 48701D, (1) seal 370254R91, Serial Range: -13851

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt-hex.

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x .0478

2шт.

5

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

OIL SEAL, front wheel

2шт.

6

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining, Start Serial: 13852

2шт.

6

361850R1

RING

steering knuckle retaining, Serial Range: -13851

2шт.
