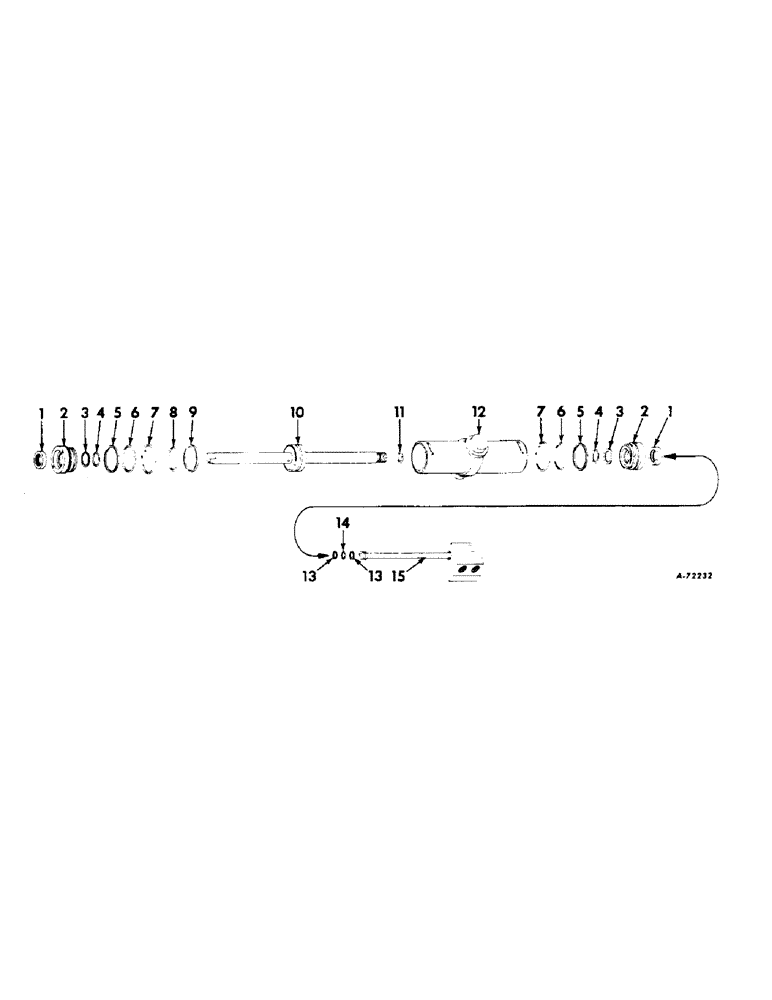

Запчасти Case IH 2544 (J-14) - STEERING MECHANISM, POWER STEERING CYLINDER, INTERNATIONAL TRACTORS Steering Mechanism

391982R91

CYLINDER

ASSY, power steering

1шт.

1

378587R91

OIL SEAL

piston rod wiper

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

2

391984R1

HEAD, cylinder

2шт.

3

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

piston rod seal back-up

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

4

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, piston rod seal

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

5

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

cylinder hd o-ring back-up

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

6

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-3/16 x 2-3/8 x 3/32, cylinder head

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

7

391985R1

SPRING

RETAINER, cylinder head

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

8

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 x 1/8, piston seal

1шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

9

379570R1

SEALING RING

RING, piston

1шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

10

379563R11

PISTON

ASSY, steering cylinder

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 fx 15/16 x 3/32, piston rod

1шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

12

391983R11

TUBE ASSY, steering cylinder

1шт.

13

382236R1

BACK-UP RING

WASHER, tube seal o-ring back-up

2шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

14

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, inner piston rod tube seal

1шт.

Part of Cylinder Service Kit, P/N 386694R91

1шт.

15

379569R12

ANCHOR

ASSY, piston rod

1шт.

386694R91

KIT

cylinder service, consists of ref nos 1, 3 thru 9, 11, 13, & 14

1шт.
