Запчасти Case IH 2544 (J-13) - STEERING MECHANISM, POWER STEERING CYLINDER, INTERNATIONAL TRACTORS WITH CAST FRONT AXLE Steering Mechanism

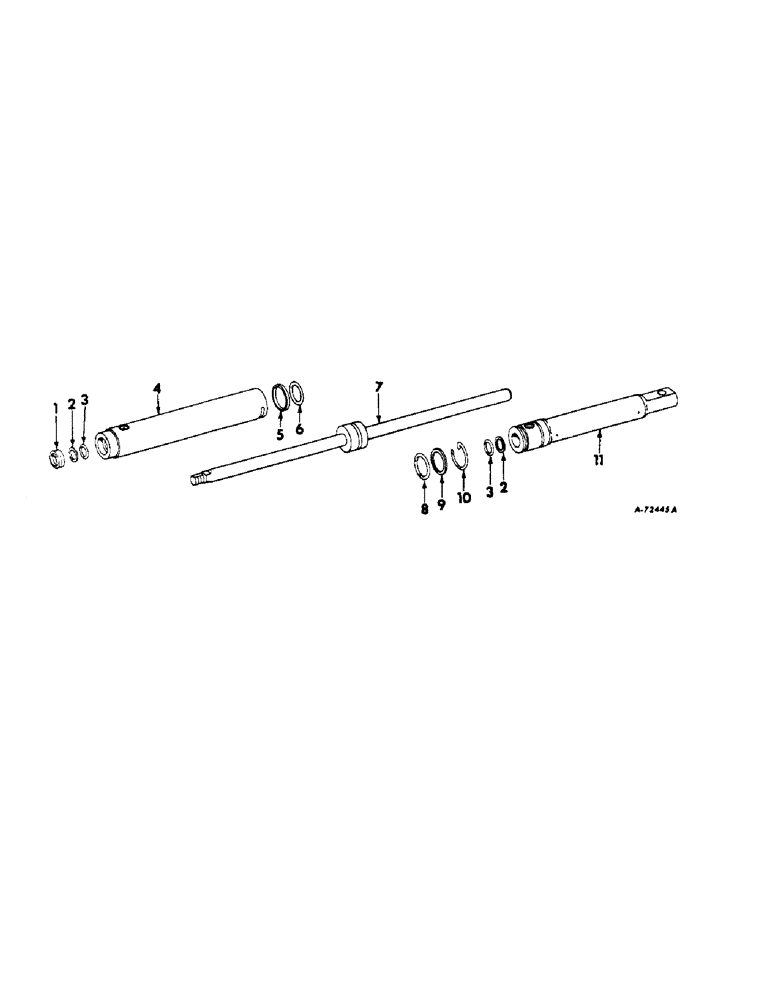

Схема запчастей Case IH 2544 - (J-13) - STEERING MECHANISM, POWER STEERING CYLINDER, INTERNATIONAL TRACTORS WITH CAST FRONT AXLE Steering Mechanism
10
1
6
4
2
7
11
9
3
5
8
2
3

Артикул

Название

Примечание

Количество

378580R91

STEERING CYLINDER

CYLINDER ASSY, power steering

1шт.

1

378587R91

OIL SEAL

scraper oil

1шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back-up

2шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, cylinder retainer

2шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

4

378590R11

TUBE,10.7" Length

ASSY, power steering cylinder

1шт.

5

378586R1

RING,51.1mm ID x 54.66mm OD x 3.56mm Thk

piston

1шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

6

310939R1

O-RING

1-3/4 x 2 x 1/8, piston

1шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

7

378582R11

ROD

ASSY, piston

1шт.

8

255088R1

O-RING

1-7/8 x 2-1/8 x 1/8, front head

1шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

9

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

WASHER, teflon back-up

1шт.

Part of Cylinder Service Kit, P/N 386693R91

1шт.

10

378585R1

SPOKE

RETAINER, cylinder end

1шт.

11

378589R21

HEAD

ASSY, front

1шт.

386693R91

SEAL KIT

cylinder service, consists of ref. nos. 1, 2, 3, 5, 6, 8 & 9

1шт.

Выбрано товаров: 20
