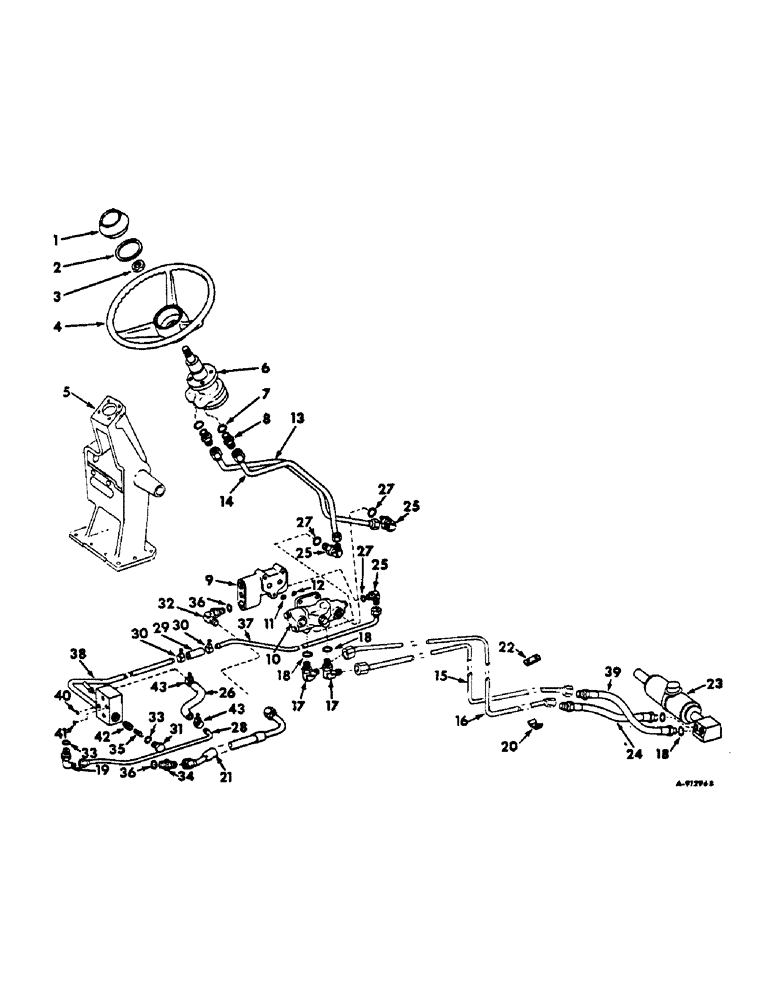

Запчасти Case IH 2544 (J-09) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL HYDROSTATIC DRIVE TRACTORS Steering Mechanism

1

68837C1

CAP

steering wheel monogrammed

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

4

385156R1

WHEEL (STEERING)

WHEEL, 16 inc. dia steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

399070R3

SUPPORT STEERING

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-3/8 hex-hd cap

10шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

6

378578R95

HYDRAULIC STEERING

PUMP, hydrostatic steering hand, for components see list of parts under details of power steering hand pump

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

2шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg flared tube short swivel

2шт.

9

396876R91

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of power steering flow divider valve, Serial Range: -15908

1шт.

9

543959R91

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of power steering flow divider valve, Start Serial: 15909

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

13

399668R1

TUBE ASSY, hand pump left hand

1шт.

14

399670R1

TUBE ASSY, hand pump right hand

1шт.

15

528355R1

TUBE ASSY, no. 1 power steering cyl, for tractors, also order tube assy 528356R1, Serial Range: -15141

1шт.

16

528356R1

TUBE ASSY, no. 2 power steering cyl, for tractors, also order tube assy 528355R1, Serial Range: -15141

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared adj. straight thd 90 deg

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

19

400840R91

ELBOW ASSY, P.S. return rear tube

1шт.

20

384891R1

CLAMP

power steering tube

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

21

402997R2

TUBE & HOSE ASSY, aux power supply

1шт.

22

403898R1

PLATE ASSY, support power steering tube

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

23

391982R91

CYLINDER

ASSY, hydrostatic power steering, for components see list of parts under details of power steering cylinder

1шт.

24

379652R92

HOSE ASSY.

HOSE ASSY, power steering long

1шт.

25

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube adj str thd 90 deg

3шт.

26

400657R1

HOSE, power, Serial Range: steering-reservoir

1шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

3шт.

28

401842R1

TUBE

ASSY, power, Serial Range: steering-reservoir

1шт.

29

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, differential lub

1шт.

30

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, differential lub hose

2шт.

31

390825R1

PLUG

std thd o-ring boss

1шт.

32

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

34

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, 1-1/16-12 37 deg hyd flared tube short swivel

1шт.

35

382334R1

SPRING

check

1шт.

36

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

2шт.

37

403570R1

TUBE ASSY, differential lub

1шт.

38

399680R1

MANIFOLD ASSY, lub tube supply

1шт.

39

382030R91

HOSE ASSY.

HOSE ASSY, power steering cyl, short

1шт.

40

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-5/16 x 1/8, housing flange large

1шт.

41

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, housing flange small

1шт.

42

354057R2

VALVE

check

1шт.

43

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Power steering to reservoir hose #06, .44/.78 Type F Worm

2шт.
