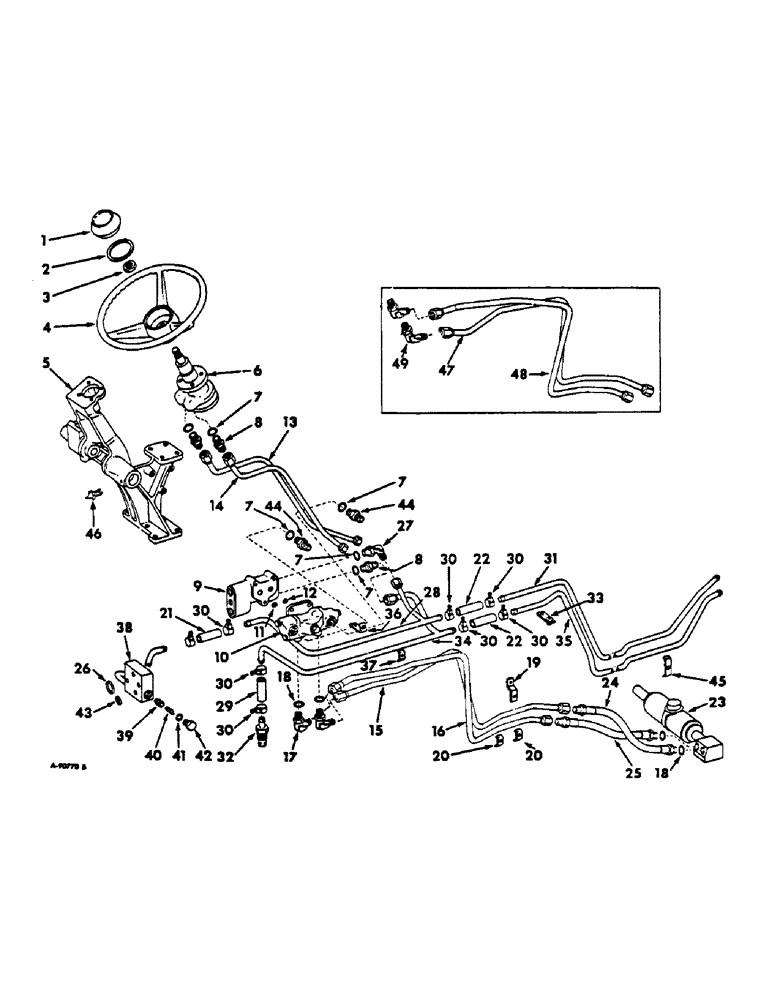

Запчасти Case IH 2544 (J-07) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL GEAR DRIVE TRACTORS Steering Mechanism

1

68837C1

CAP

steering wheel monogrammed, replaces 378395R1

1шт.

2

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

4

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

4

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

5

395858R2

SUPPORT, steering

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

4шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

6

378578R95

HYDRAULIC STEERING

PUMP, hydrostatic steering hand, for components see list of parts under details of hydrostatic hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

6шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg flared tube short swivel

3шт.

9

386910R91

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of flow divider valve, Serial Range: -15908

1шт.

9

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of flow divider valve, Start Serial: 15909

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

12

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

13

399668R1

TUBE ASSY, hand pump LH

1шт.

14

399670R1

TUBE ASSY, hand pump RH

1шт.

15

528355R1

TUBE ASSY, no. 1 power steering cyl, tractors, Start Serial: 14235

1шт.

16

528356R1

TUBE ASSY, no. 2 power steering cyl, tractors, Start Serial: 14235

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared adj str thd 90 deg, tractors, Start Serial: 14235

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

19

402740R1

BRACKET, oil cooler tubes

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

20

384855R11

CLAMP

ASSY, oil cooler tubes

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

21

392006R1

HOSE, pipe cooler return rear

1шт.

22

388606R1

HYDRAULIC HOSE,12.70 mm ID x 342.00 mm, SAE 100R6, SAE J517

HOSE, pipe cooler supply, (Replaces 390799R1)

2шт.

390799R1, CAN SUB TO 388606R1 (PER IH MICROFICHE). 388606R1 CAN BE MADE BY CUTTING 13.5 INCHES FROM BULK 73199C1. 73199C1 IS .5 INCHES I.D. COOLER HOSE.

1шт.

23

391982R91

CYLINDER

ASSY, hydrostatic power steering, refer to power steering cylinder listing, section J

1шт.

24

379652R92

HOSE ASSY.

HOSE ASSY, power steering, long

1шт.

25

382030R91

HOSE ASSY.

HOSE ASSY, power steering, short

1шт.

26

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-5/16 x 1/8 manifold, large

1шт.

27

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

power steering relief

1шт.

28

396290R1

TUBE ASSY, cooler return rear

1шт.

29

387154R1

HOSE, pipe cooler return rear

1шт.

30

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

12шт.

31

402745R1

TUBE, oil cooler supply front

1шт.

32

388448R92

VALVE

ASSY, oil cooler by-pass

1шт.

33

403898R1

PLATE ASSY, support power steering tubes

1шт.

384891R1

CLAMP

tube

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SCREW, 5/16-18 x 5/8 hex-hd cap

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

34

396294R1

TUBE ASSY, cooler supply rear

1шт.

35

402744R1

TUBE, oil cooler return front

1шт.

36

396298R1

BRACKET ASSY, manifold tubes, replaces 402741R1

1шт.

37

369758R1

CLAMP

tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

373080R1

SPACER,1/2" Pipe x 1/2"

1/2 pipe C 1/2 brk

1шт.

38

402743R1

MANIFOLD ASSY, supply

1шт.

444624

PLUG,Hex Hd, 3/8"-18

3/8-18 auto hex-hd pipe

1шт.

39

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

40

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

41

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

42

9410358

PLUG

9/16-18 std thd o-ring boss

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

43

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, manifold, small

1шт.

44

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg hyd flared tube adj str thd 90 deg

2шт.

45

382226R1

CLAMP, oil cooler tubes front

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/2-20 x 3/4 hex-hd cap

1шт.

109084

NUT,1/4"-20, G5

1шт.

46

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 1/8-27 PTF str lub

2шт.

47

402742R1

TUBE ASSY, no. 1 power steering cyl, tractors, Serial Range: -14234

1шт.

48

402746R1

TUBE ASSY, no. 2 power steering cyl, tractors, Serial Range: -14234

1шт.

49

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg flared adj str thd 45 deg, tractors, Serial Range: -14234

2шт.
