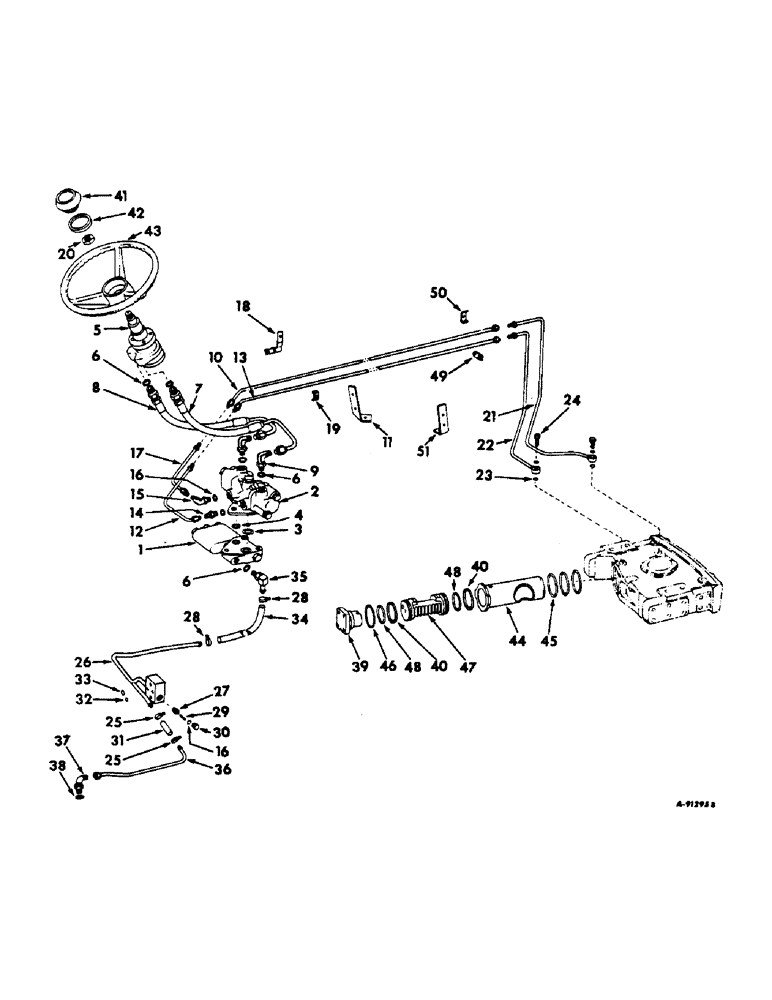

Запчасти Case IH 2544 (J-05) - STEERING MECHANISM, POWER STEERING, FARMALL HYDROSTATIC DRIVE TRACTORS Steering Mechanism

1

396876R91

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of power steering flow divider valve, Serial Range: -14423

1шт.

1

543959R91

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of power steering flow divider valve, Start Serial: 14424

1шт.

2

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

4

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

5

388407R93

PUMP

hydrostatic power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

5шт.

7

388409R91

HYD TUBE

PIPE & HOSE ASSY, hand pump RH

1шт.

8

388408R91

HYDRAULIC HOSE

& HOSE ASSY, hand pump LH

1шт.

9

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube adj str thd 90 deg

2шт.

10

402806R1

TUBE ASSY, valve to bolster front port middle section, carbureted engine tractors

1шт.

10

402804R1

TUBE ASSY, valve to bolster front port middle section, diesel engine tractors

1шт.

11

402802R1

SUPPORT, oil cooler power steering tubes rear, diesel engine tractors

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga.

1шт.

12

390942R11

TUBE

PIPE ASSY, valve to bolster, front port rear section

1шт.

13

402805R1

TUBE ASSY, valve to bolster rear port middle section, carbureted engine tractors

1шт.

13

402809R1

TUBE ASSY, valve to bolster rear port middle section, diesel engine tractors

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

1шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

17

390951R11

TUBE

PIPE ASSY, valve to bolster, rear port rear

1шт.

18

388412R11

BRACKET ASSY, oil cooler & power steering tubes

1шт.

19

381448R1

CLAMP

hydraulic tube

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

SCREW, 1/4-20 x 1-7/8 hex-hd cap

1шт.

20

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

21

398145R1

TUBE

ASSY, valve to bolster front port front section

1шт.

22

398147R1

TUBE

ASSY, valve to bolster rear port front section

1шт.

23

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, pressure tube union

4шт.

24

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

2шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga.

2шт.

25

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Power steering to reservoir #06, .44/.78 Type F Worm

2шт.

26

401549R1

MANIFOLD ASSY, oil cooler return, tractors without draft control

1шт.

26

402327R2

MANIFOLD

ASSY, hyd housing power supply, tractors with draft control

1шт.

179846

LEVER

3шт.

27

354057R2

VALVE

check

1шт.

28

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, cooler supply hose

2шт.

29

382334R1

SPRING

check

1шт.

30

390825R1

PLUG

std thd o-ring boss

1шт.

31

401792R1

HYDRAULIC HOSE,0.38" ID x 5.50"

HOSE, power steering to reservoir

1шт.

32

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, hyd housing flange small

1шт.

33

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-5/16 x 1/8, hyd housing flange large

1шт.

34

385053R1

HOSE, flow divider valve-return

1шт.

35

396883R1

ELBOW, flow divider

1шт.

36

401842R1

TUBE

ASSY, power, Serial Range: steering-reservoir

1шт.

37

400840R1

ELBOW, power steering return rear tube

1шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector, for 3/8 OD tubing

1шт.

39

378652R1

HOUSING

COVER, housing end

1шт.

327202R1

BOLT

SCREW, 7/16-14 x 1-7/8 hex-hd cap

4шт.

183544R1

WASHER

15/32 x 7/8 x 1/8 hardened

4шт.

40

378651R1

SEALING RING

RING, rack piston

2шт.

41

68837C1

CAP

steering wheel, replaces 378395R1

1шт.

42

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

43

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

43

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

44

367805R2

SLEEVE CYLINDER

SLEEVE, steering cyl

1шт.

45

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3-7/8 x 4-1/4 x 3/16

3шт.

46

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 x 1/8

1шт.

47

379364R1

PISTON

power steering

1шт.

48

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

2шт.

49

363864R2

STRIP, P.S. tubes

1шт.

50

384891R11

CLAMP

ASSY, power steering tubes, diesel engine tractors

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

51

398151R1

SUPPORT, oil cooler and hydraulic tubes front, gasoline engine tractors

1шт.

51

402803R1

SUPPORT, oil cooler & hyd tubes front, diesel engine tractors

1шт.

102635

NUT,3/8"-16, G5

1шт.

393259R1

HOSE

INSULATOR, round hydraulic line, 5/8 ID x 3/4 in. long

1шт.
