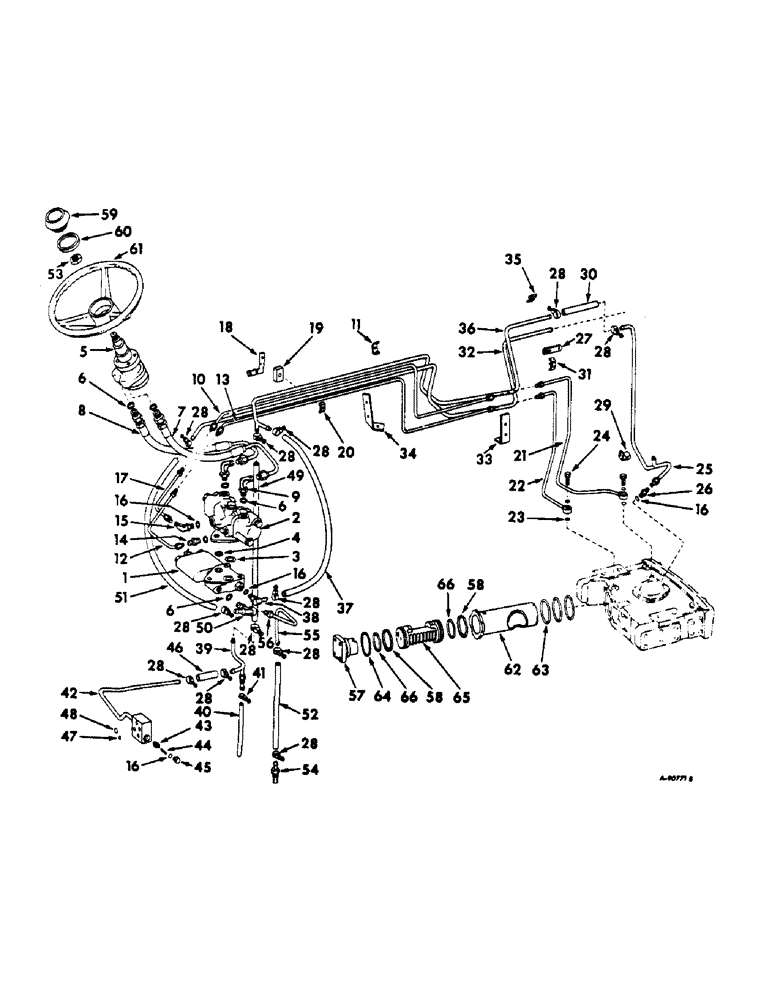

Запчасти Case IH 2544 (J-02) - STEERING MECHANISM, POWER STEERING, FARMALL GEAR DRIVE TRACTORS Steering Mechanism

1

386910R91

VALVE ASSY, power steering flow divider, tractors, for components see list of parts under details of power steering flow divider valve, Serial Range: -14423

1шт.

1

543960R91

LOCK VALVE

VALVE ASSY, power steering flow divider, tractors, Start Serial: 14424

1шт.

2

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, pilot valve large

1шт.

4

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pilot valve small

1шт.

5

388407R93

PUMP

hydrostatic power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

5шт.

7

388408R91

HYDRAULIC HOSE

& HOSE ASSY, hand pump LH

1шт.

8

388409R91

HYD TUBE

PIPE & HOSE ASSY, hand pump RH

1шт.

9

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube adj str thd 90 deg

2шт.

10

402806R1

TUBE ASSY, valve to bolster front port middle section, carbureted engine tractors

1шт.

10

402804R1

TUBE ASSY, valve to bolster front port middle section, diesel engine tractors

1шт.

11

384855R1

CLAMP

hydraulic tube

1шт.

12

390942R11

TUBE

PIPE ASSY, valve to bolster, front port rear section

1шт.

13

402805R1

TUBE ASSY, valve to bolster rear port middle section, carbureted engine tractors

1шт.

13

402809R1

PIPE ASSY, valve to bolster rear port middle section, diesel engine tractors

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd, flared tube short swivel

1шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

5шт.

17

390951R11

TUBE

PIPE ASSY, valve to bolster, rear port rear

1шт.

18

388412R11

BRACKET ASSY, oil cooler and power steering tubes

1шт.

19

388413R1

PAD, cooler & bolster pipe spacer

1шт.

20

384855R11

CLAMP

ASSY, hydraulic tube

2шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

398145R1

TUBE

PIPE ASSY, valve to bolster front port front section

1шт.

22

398147R1

TUBE

ASSY, valve to bolster rear port front section

1шт.

23

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, pressure tube union

1шт.

24

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

2шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga.

2шт.

25

388595R11

TUBE

PIPE ASSY, oil cooler return front

1шт.

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 3/4-16 cd or zn-pltd 37 deg hyd flared tube

1шт.

9403450

SLEEVE,37 Degree, 1/2" Tube

1/2 cd pltd 37 deg hyd flared tube

1шт.

26

382449R1

CONNECTOR, ELEC

CONNECTOR, overflow tube

1шт.

27

363864R2

STRIP, power steering tubes

1шт.

28

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, cooler return hose

12шт.

29

388600R1

CLAMP, cooler tube

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

30

392006R1

HOSE, cooler return short

1шт.

31

384891R11

CLAMP

ASSY, hyd tube, 1 for carbureted engine tractors, 2 for diesel engine tractors

1шт.

32

398158R1

TUBE, flow divider to oil cooler, carbureted engine tractors

1шт.

32

402810R2

TUBE, flow divider to oil cooler, diesel engine tractors

1шт.

33

402803R1

SUPPORT, oil cooler and hyd tubes front, diesel engine tractors

1шт.

NLS

NO LONGER SERVICED

1шт.

102635

NUT,3/8"-16, G5

1шт.

33

398151R1

SUPPORT, oil cooler and hyd tubes front, carbureted engine tractors

1шт.

34

402802R1

SUPPORT, oil cooler and hyd tubes, diesel engine tractors

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

Q5001

WASHER

9/32 x 3/4 x 11 ga

1шт.

35

369758R11

CLAMP ASSY, oil cooler tubes, diesel engine tractors

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

35

384855R11

CLAMP

ASSY, oil cooler tube, carbureted engine tractors

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

398159R1

TUBE, cooler return, carbureted engine tractors

1шт.

36

402811R2

TUBE, cooler return, diesel engine tractors

1шт.

37

388601R1

HOSE

flow divider relief

1шт.

38

388607R1

ELBOW, flow divider relief connector

1шт.

39

404253R1

FITTING, oil cooler return, will work for 389978R11

1шт.

40

389981R1

HOSE, oil cooler return internal

1шт.

41

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

Internal hose #06, .44/.78 Type F Worm

1шт.

42

392716R92

MANIFOLD ASSY, oil cooler return, tractors without draft control

1шт.

42

389631R93

MANIFOLD ASSY

power supply & oil cooler return, tractors w/draft control

1шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3шт.

43

354057R2

VALVE

check

1шт.

44

382334R1

SPRING

check

1шт.

45

390825R1

PLUG

std thd o-ring boss

1шт.

46

529245R1

HOSE, power steering return

1шт.

47

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

15/16 x 1-3/16 x 1/8, hyd housing flange small

1шт.

48

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-5/16 x 1/8, hyd housing flange large

1шт.

49

388608R1

HOSE, oil cooler return junction

1шт.

50

388609R91

TEE ASSY, oil cooler supply & by-pass

1шт.

51

388608R1

HOSE, oil cooler supply

1шт.

52

395163R1

HOSE ASSY.

HOSE, by-pass

1шт.

53

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

54

388448R91

VALVE ASSY, oil cooler by-pass

1шт.

55

388611R1

TUBE

PIPE, pilot valve by-pass

1шт.

56

222-506

TUBE NUT,11/16"-16

NUT, 11/16-16 hi-duty tube, for 1/2 pipe

1шт.

57

378652R1

HOUSING

COVER, housing end

1шт.

327202R1

BOLT

SCREW, 7/16-14 x 1-7/8 hex-hd cap

4шт.

183544R1

WASHER

15/3 x 7/8 x 1/8 hardened

4шт.

58

378651R1

SEALING RING

RING, rack piston

2шт.

59

68837C1

CAP

steering wheel, replaces 378395R1

1шт.

60

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

61

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia steering

1шт.

61

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

62

367805R2

SLEEVE CYLINDER

SLEEVE, steering cyl

1шт.

63

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3-7/8 x 4-1/4 x 3/16

3шт.

64

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 x 1/8

1шт.

65

379364R1

PISTON

power steering

1шт.

66

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

2шт.

393258R1

INSULATOR, square hydraulic line, 1/2 in. x 2 in. square

1шт.

393259R1

HOSE

INSULATOR, round hydraulic line, 5/8 ID x 3/4 in. long

1шт.
