Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT

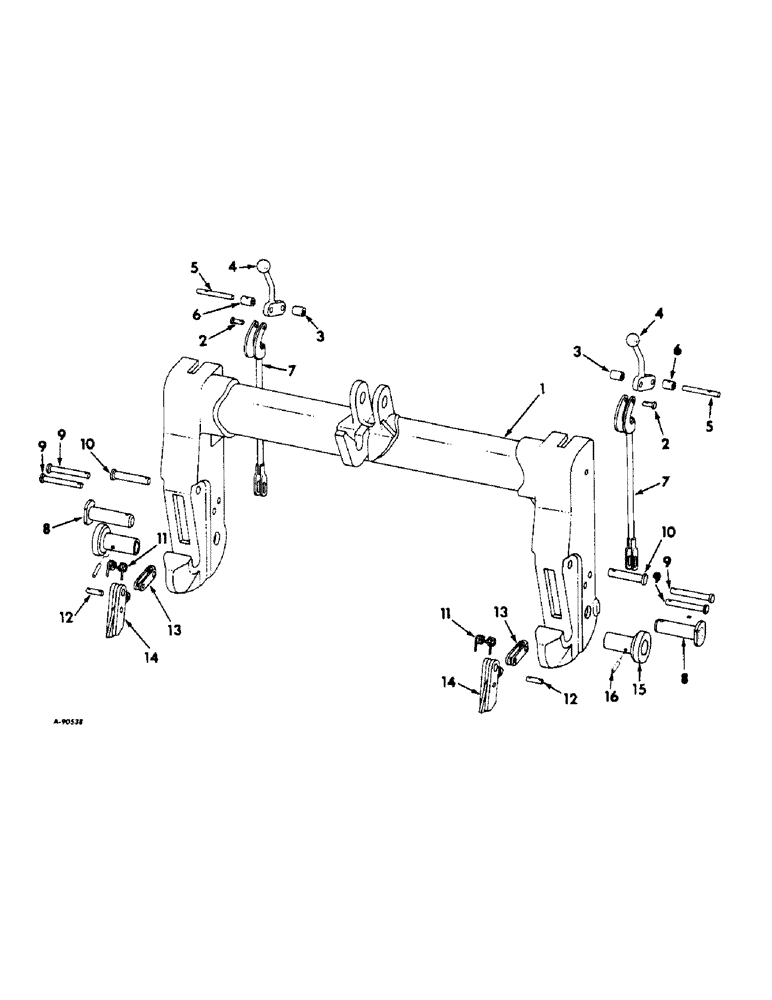

ATTACHMENT, quick coupler, 401228R91
1шт.
401230R91
COUPLING
COUPLER ASSY, quick, consists of ref nos. 1 - 14
1шт.
1
401235R1
FRAME ASSY, quick coupler
1шт.
2
401245R1
PIN, hitch lever link
2шт.
3
401240R1
SPACER, lever hinge pin
2шт.
4
401236R1
LEVER
hitch
2шт.
5
401238R1
PIN, lever hinge
2шт.
6
401239R1
SPACER, lever hinge pin
2шт.
7
401237R1
ROD ASSY, hitch
2шт.
8
401248R1
PIN
stud
2шт.
9
401215R1
PIN
lower link
4шт.
10
401246R1
PIN
locking latch hinge
2шт.
11
401244R1
SPRING
double torsion
2шт.
12
401247R1
PIN, clevis slot
2шт.
446548
WASHER,0.38" ID x 0.75" OD x 0.05" Thk
3/8 plain
4шт.
648002
KNIFE
1/8" x 3/4"
10шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
4шт.
13
401243R1
CLEVIS
LINK, hitch lower
2шт.
14
401242R1
SUPPORT
PLATE ASSY, latch
2шт.
15
401232R1
ADAPTER
implement lower hitch pin
2шт.
16
21926R1
PIN,7/16" x 1 3/8", Coiled
2шт.
1001029R3
DECAL
PRODUCT GRAPHIC, IH
1шт.
Выбрано товаров: 22
