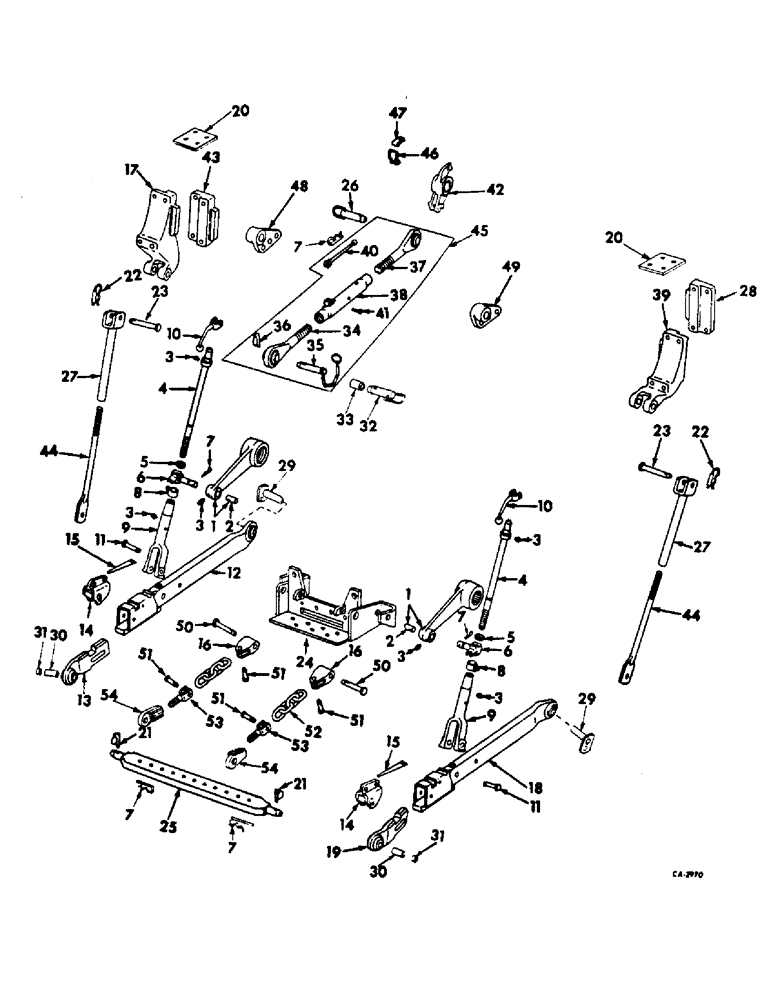

Запчасти Case IH 2544 (K-08) - DRAWBARS AND HITCHES, THREE POINT HITCH, INTERNATIONAL TRACTORS Drawbars & Hitches

NSS

NOT SOLD SEPARAT

ATTACHMENT, three point hitch, 402249R92, International tractors, less ref. nos. 17, 20, 22, 23, 25, 27, 30 thru 33, 42 thru 44, 48 and 49, tractors equipped with draft control and with or without independent PTO

1шт.

1

389354R11

ARM ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

6шт.

4

402229R1

SCREW

ASSY, leveling

2шт.

617057R1

PIN,1/4" x 1", Coiled

2шт.

5

382168R2

WASHER

pivot

2шт.

6

383990R2

PIVOT ASSY.

EYEBOLT, leveling screw pivot

2шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

7

520175R1

CLIP

PIN, quick attachable cotter

4шт.

8

383982R1

COLLAR

COLLAR, vertical float lock

2шт.

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, 5/8 x 1 cone-pt. sq-hd set

2шт.

9

538970R1

YOKE

leveling screw, on orders for 389538R1, furnish yoke, 538970R1 and pin, 538971R1

2шт.

10

523861R2

HANDLE

HANDLE, leveling screw

2шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

2шт.

11

538971R1

PIN

7/8 x 3-5/8 leveling screw yoke, use w/yoke, 538970R1

2шт.

11

383991R1

PIN,Headed, 7/8" x 3 3/8", Drilled

5/5 x 3-5/8 leveling screw yoke, use w/yoke, 389538R1

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

29/32 x 1-1/2 x 1/4

4шт.

12

402243R1

LINK COMPLETE, front section lower LH

1шт.

13

380994R92

LINK

ASSY, LH rear section lower

1шт.

19903R1

PIN,1/2" x 1 3/4", Coiled

1шт.

14

380993R2

LATCH ASSY.

LATCH, lower link

2шт.

19955R1

PIN,1/4" x 1/2", Coiled

4шт.

15

392882R1

BAR

SPRING, lower link latch

4шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/2 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

380552R1

BRACKET, restraining chain front

2шт.

17

380573R1

BRACKET, stabilizer LH

1шт.

17

535103R1

BRACKET, stabilizer LH, tractors w/protective frame

1шт.

102639

NUT,5/8"-11, G5

4шт.

380576R2

SCREW, stabilizer bracket

2шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

stabilizer bracket

2шт.

103331

WASHER,5/8"

5/8"

4шт.

18

402244R1

LINK COMPLETE, front section lower RH

1шт.

19

380995R92

LINK

ASSY, RH rear section lower

1шт.

19903R1

PIN,1/2" x 1 3/4", Coiled

1шт.

20

402235R1

PLATE, fender support

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 hex-hd cap

4шт.

19992R1

BOLT

SCREW, 1/2-13 x 2-1/4 hex-hd cap

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, drawbar

2шт.

22

520175R1

CLIP

PIN, quick attachable cotter

2шт.

23

381541R1

PIN

stabilizer pivot

2шт.

24

380554R11

SUPPORT COMPLETE, drawbar

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8-11 x 1-3/4 hex-hd

6шт.

25

374150R1

DRAWBAR

cross

1шт.

26

380571R11

PIN COMPLETE, upper link bellcrank

1шт.

383437R11

PIN ASSY, upper link bellcrank

1шт.

27

378010R11

TUBE

ASSY, stabilizer

2шт.

28

380577R2

RETAINER, stabilizer

1шт.

604433R1

SPACER,1/2" Pipe x 13/16"

fender

4шт.

28

535106R1

RETAINER, stabilizer RH, tractors w/protective frame

1шт.

29

380532R1

PIN COMPLETE, lower link pivot

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

380533R1

SPACER, 1.149 x 1.625 x .31

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

380583R1

BUSHING

lower link category #1 short

2шт.

30

380584R1

BUSHING

lower link category #1 long

2шт.

31

11484R

BUSHING

SPACER, lower link long bushing

2шт.

32

380580R91

PIN

ASSY, upper link implement

1шт.

33

3380581R1

BUSHING, upper link category #1 short

1шт.

33

380582R1

BUSHING

upper link category #1 long

1шт.

34

384848R11

LINK

SCREW ASSY, LH thread, optional with 386048R91

1шт.

34

386048R91

LINK

SCRWE ASSY, LH thread, optional with 384848R11

1шт.

35

380563R91

PIN

ASSEMBLY, upper link implement

1шт.

36

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

37

384849R11

LINK

SCREW ASSY, RH thread, optional with 386049R91

1шт.

37

386049R91

LINK

SCREW ASSY, RH thread, optional with 384849R11

1шт.

38

400908R1

TURNBUCKLE

ASSY, upper link

1шт.

19791R1

PIN,1/4" x 1 1/8", Coiled

2шт.

39

380574R1

BRACKET, stabilizer RH

1шт.

39

535104R1

BRACKET, stabilizer RH, tractors w/protective frame

1шт.

1026339

TUBE ASSY.

NUT, 5/8-11 hex.

4шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

stabilizer bracket

2шт.

380576R2

SCREW, stabilizer bracket

2шт.

103331

WASHER,5/8"

5/8"

4шт.

40

392204R1

HANDLE

upper link turnbuckle

1шт.

41

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/8 headed

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

42

NSS

NOT SOLD SEPARAT

BELLCRANK, draft control, refer to hydraulic draft control listing, section F

1шт.

43

380577R2

RETAINER, stabilizer

2шт.

604433R1

SPACER,1/2" Pipe x 13/16"

fender

4шт.

43

535105R1

RETAINER, stabilizer LH, tractors w/protective frame

1шт.

44

380578R1

ROD

stabilizer end

2шт.

45

400907R92

LINK

ASSY, upper

1шт.

46

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

47

378404R1

FASTENER

CLIP, upper link storage bracket

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

1шт.

48

402232R1

BRACKET, lower link lockout LH

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

49

402233R1

BRACKET, lower link lockout RH

1шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, 5/8-11 x 2 hex-hd cap

2шт.

50

380553R1

PIN, restraining chain bracket front

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN - split (Cotter), 3/16" x 1 1/4"

2шт.

51

380551R1

PIN

chain limiter

4шт.

108631

PIN

5/32 x 7/8 cot.

4шт.

52

380550R1

CHAIN, lateral limiter

2шт.

53

380548R11

YOKE

SCREW, complete, chain adjusting

2шт.

54

380546R1

BRACKET, restraining chain rear

2шт.

380547R1

BOLT, restraining chain rear bracket

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

2шт.

404787R1

SHIELD

linch pin, shipped w/tractor in tool box

2шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adapter, for use w/category I implements when mounting on category II hitch, consists of (1) bushing 380581R1, (1) bushing 380582R1, (2) bushing 380583R1, (2) bushing 380584R1, (1) pin 380580R91, (2) spacer 11484R

1шт.

402236R91

ATTACHMENT, three point hitch stabilizer, with attaching hardware, consists of (1) bracket 380573R1, (1) bracket 380574R1, (2) pin 381541R1, (2) pin 520175R1, (2) plate 402235R1, (1) retainer 380577R2, (1) rod 380578R1, (8) spacer 604433R1, (2) tube 37801

1шт.

535113R91

ATTACHMENT, three-point hitch stabilizer, tractors w/protective frame, with attaching hardware, consists of (1) bracket 535103R1, (1) bracket 535104R1, (2) pin 381541R1, (2) pin 520175R1, (1) retainer 535105R1, (1) retainer 535106R1, (1) rod 380578R1, (2

1шт.
