Запчасти Case IH 2544 (H-16) - CONTROLS, HI-LO SHIFT CONTROL AND LINKAGE, INTERNATIONAL TRACTORS WITH HYDROSTATIC DRIVE Controls

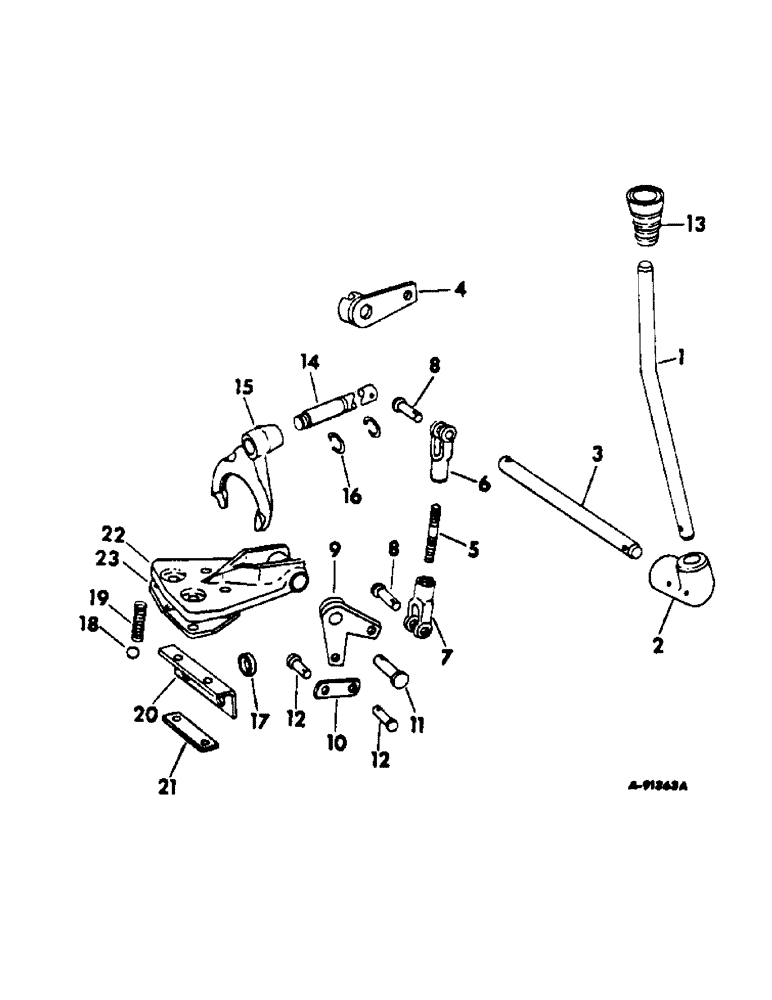

Схема запчастей Case IH 2544 - (H-16) - CONTROLS, HI-LO SHIFT CONTROL AND LINKAGE, INTERNATIONAL TRACTORS WITH HYDROSTATIC DRIVE Controls
10
2
9
8
5
1
18
17
22
14
12
3
11
6
19
12
20
21
15
13
7
8
23
6
4

Артикул

Название

Примечание

Количество

1

399252R2

ROD, hi-lo shift, also order knob, 537110R1, Serial Range: -16381

1шт.

1

537476R1

ROD, hi-lo shift, Start Serial: 16382

1шт.

2

399031R1

PIVOT

HUB, hi-lo handle

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

2шт.

3

399255R1

PIN, hi-lo range handle pivot

1шт.

4

395897R1

LEVER

ASSY, rod operating RH

1шт.

20472R1

DOWEL,5/16" x 1 1/8"

PIN, 5/16 x 1-1/8 dowel

1шт.

5

399131R1

STUD

transmission shift rod

1шт.

116428

NUT,Jam, 3/8"-24, G5, LH

3/8-24 hex. jam, LH thread

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

6

21364R1

CLEVIS

3/8 x 2-1/2 adj rod end

1шт.

7

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 x 2-1/8 adj rod end

1шт.

8

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

9

538365R1

LEVER ASSY, transmission shift RH

1шт.

10

388201R1

DRAG LINK

LINK, transmission shift lever

2шт.

11

496032R1

PIN, 5/8 x 3-5/8 std hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

Q3529

AXLE PIN

PIN, 5/16 x 1-5/8 std hd

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

13

537110R1

GRIP

KNOB, shift handle

1шт.

14

402469R1

RAIL, hi-lo shifter

1шт.

15

388172R1

FORK

hi-lo shifter

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext-tooth lock

1шт.

16

388173R1

RING

shifter rail stop snap

2шт.

17

111710R91

SEAL

shifter rail oil

1шт.

18

17016R1

BALL,1/2" Dia

3шт.

19

41058DA

SPRING

shifter rail poppet

1шт.

20

388177R1

ANGLE

shifter fork rear support

1шт.

21

388178R1

SHIM

PLATE, shifter fork rear support lock

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

22

406113R1

BRACKET, transmission pivot shaft

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

23

406114R1

GASKET

transmission pivot shaft support bracket

1шт.

Выбрано товаров: 36
