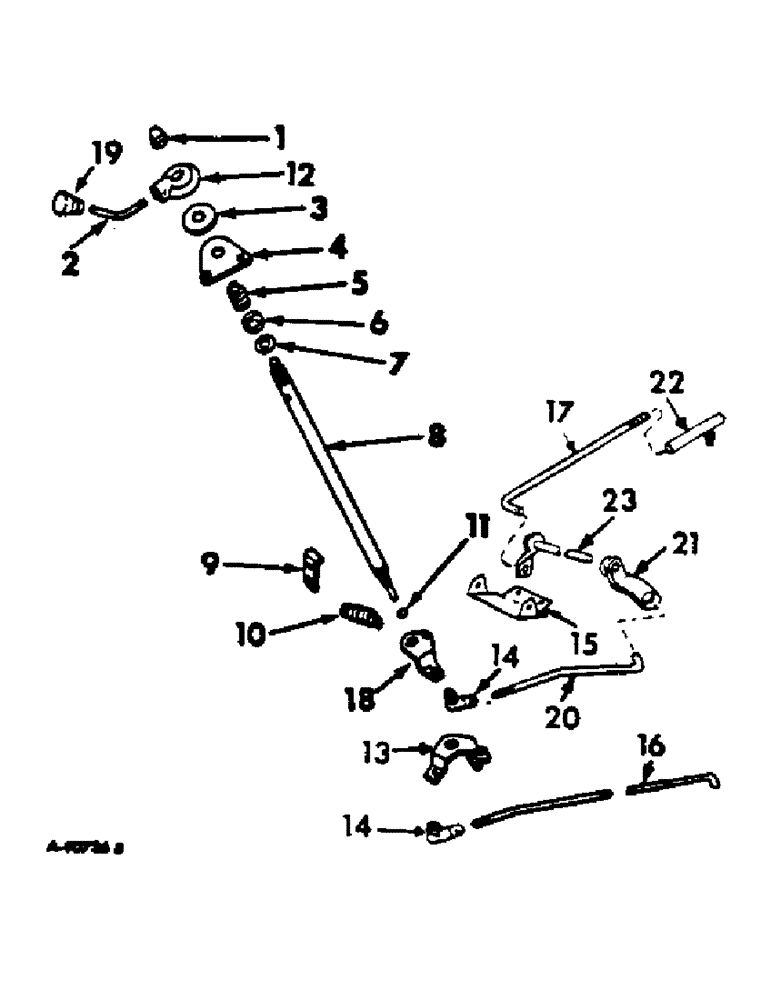

Запчасти Case IH 2544 (H-07) - CONTROLS, ENGINE SPEED CONTROLS, INTERNATIONAL TRACTORS Controls

1

369478R1

NUT

engine speed control lever

1шт.

2

399241R1

ROD, governor control handle, also order grip, 397931R2, Serial Range: -16381

1шт.

2

537479R1

ROD, governor control handle, Start Serial: 16382

1шт.

369478R1

NUT

7/16-20 ESNA stop

1шт.

NLS

NO LONGER SERVICED

15/32 x 59/64 x .065 C-Z

1шт.

3

394716R1

DISC

GASKET, governor control friction disc

1шт.

4

369465R1

SUPPORT

PLATE, governor control friction

1шт.

131577

PISTON ROD

NUT, 1/4-20 hi-crown hex.

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

1/4-20 x 3/8 C-Z hex-hd cap

1шт.

5

394715R1

SPRING

governor control

1шт.

6

370628R1

RETAINER

RETAINER, governor control spring

1шт.

7

370627R2

SPACER

governor control spring

1шт.

8

403594R1

SHAFT

governor control, replaces 369460R1

1шт.

271505

BODY

7/16-20 hex. jam

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

9

395961R2

STRIP, spring anchor, carbureted engine tractors

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCRWE, 1/4-20 x 3/4 hex-hd cap

1шт.

10

369470R1

VALVE SPRING

SPRING, governor control balance, carbureted engine tractors

1шт.

11

370290R1

SNAP RING,#50, .392" Dia, E-Type

RING - retaining, , governor control #50, .392" Dia, E-Type

1шт.

12

399242R1

HUB, governor control handle

1шт.

142494

GUIDE

PIN - grooved, 5/32" x 7/8", Type A

1шт.

13

395959R1

LEVER ASSY, governor control, carbureted engine tractors

1шт.

14

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

1шт.

15

401784R1

PLATE, governor control pivot lever, diesel engine tractors w/gear drive transmission

1шт.

15

406608R1

PLATE ASSY, governor control pivot, diesel engine tractors w/hydrostatic transmission

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, 7/16-14 x 1-5/8 hex-hd cap

1шт.

16

401783R3

ROD, governor control, carbureted engine tractors

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

17

401782R1

ROD, governor control, front, diesel engine tractors

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 jam

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

18

369466R21

ARM ASSY, governor control, diesel engine tractors

1шт.

369467R1

PIN

1шт.

19

397931R2

GRIP

governor control handle

1шт.

19

397931R2GV

SPRING

Value, Knob

1шт.

20

401781R1

ROD, governor control, rear, diesel engine tractors with gear drive transmission

1шт.

20

403626R1

ROD, governor control, rear, diesel engine tractors with hydrostatic drive

1шт.

21

401777R1

LEVER, governor control operating, diesel engine tractors

1шт.

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

22

366795R92

JOINT TURNING

JOINT, spring loaded ball, diesel engine tractors

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-20 hex.

1шт.

23

401780R1

LEVER ASSY, governor control, diesel engine tractors

1шт.
