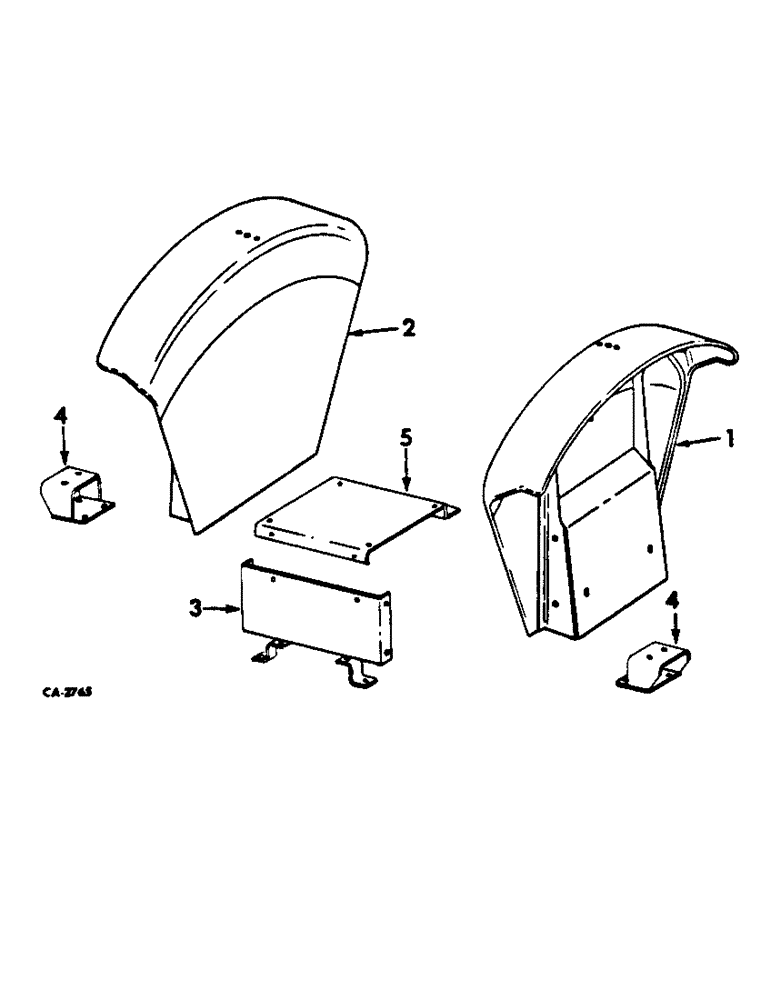

Запчасти Case IH 2544 (A-19) - CHASSIS, RADIATOR AND SHEET METAL, FENDERS, INTERNATIONAL TRACTORS Chassis, Radiator & Sheet Metal

1

66021C1

FENDER w/product graphic assy, LH

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap type 4

2шт.

2

402330R1

FENDER ASSY, RH

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap type 4

2шт.

3

402348R1

SUPPORT ASSY, seat

1шт.

SA2172

SPACER,3/8" Pipe x 1/2"

seat support bracket

2шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

2шт.

615063R1

WASHER

15/32 x 7/8 x 16 ga.

2шт.

4

527579R1

SPACER ASSY, fender, International row crop tractors

2шт.

20127R1

SCREW

1/2-13 x 4-1/4 hex-hd cap type 4

4шт.

5

396238R1

SECTION, seat support

1шт.

21535R1

SCREW, 5/16-18 x 1 hex-hd cap

2шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 washer-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
