Запчасти Case IH 2544 (N-15) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME, FARMALL TRACTORS Accessories & Attachments

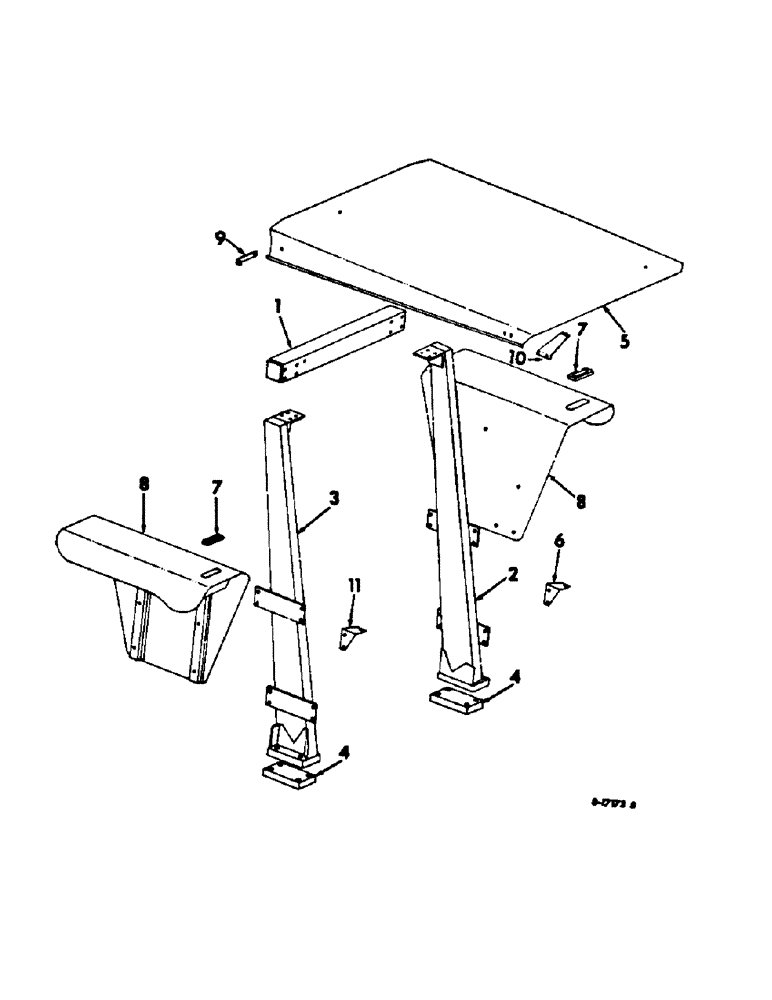

Схема запчастей Case IH 2544 - (N-15) - PARTS ACCESSORIES AND ATTACHMENTS, PROTECTIVE FRAME, FARMALL TRACTORS Accessories & Attachments
7
9
5
1
7
2
4
6
3
11
4
8
8
10

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame, 529900R91, all tractors, tractors must be equipped w/exhaust pipe extension, Serial Range: -14689

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame 539982R91, all tractors, tractors equipped w/canopy attachment must be equipped with exhaust pipe extension, Start Serial: 14690

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, protective frame canopy 537626R91, tractor must be equipped with protective frame, also exhaust pipe extension

1шт.

1

402082R1

BAR ASSY, frame cross

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

8шт.

2

402115R1

PILLAR ASSY, frame L.H.

1шт.

3

402114R1

PILLAR ASSY, frame R.H.

1шт.

4

402123R1

BAR, lower clamp

2шт.

25136R1

SCREW, 7/8-9 x 8-3/4 type 4 hex-hd cap

8шт.

22466R1

BOLT,Hex, 7/8" - 9 x 10", Gr 8

SCREW, 7/8-9 x 10 type 4 hex-hd cap

8шт.

5

402105R1

TOP ASSY, w/coating

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x 5 C-Z hex-hd cap

8шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

1/2-13 x 5-1/4 ZND hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

3шт.

6

402111R1

SUPPORT, flashing light bracket L.H.

1шт.

102637

NUT,1/2"-13, G5

1/2-10 hex.

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

388940R1

GRIP

fender handle

2шт.

8

403557R1

FENDER ASSY, L.H ., Serial Range: -14689

1шт.

8

403559R1

FENDER ASSY, L.H., Start Serial: 14690

1шт.

8

403558R1

FENDER ASSY, R.H ., Serial Range: -14689

1шт.

8

403560R1

FENDER ASSY, R.H., Start Serial: 14690

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 ZND hex-hd cap

2шт.

180180

SCREW,Hex, 1/2" - 13 x 1 7/8", Gr 5

1/2-13 x 1-7/8 ZND hex-hd cap

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 ZND hex-hd cap

4шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .074

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

9

406115R1

BRACKET, stabilizer rear

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 ZND hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

10

406116R1

BRACKET, stabilizer L.H.

1шт.

10

406117R1

BRACKET, stabilizer R.H.

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 ZND hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

11

536529R1

SUPPORT, flasher light bracket R.H., Start Serial: 14690

1шт.

102637

NUT,1/2"-13, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

348129C91

SAFETY BELT

1шт.

404227R1

SAFETY BELT, Seat retainer, 20.2 in.

1шт.

404228R1

SAFETY BELT, Seat retainer, 25.7 in.

1шт.

271684C2

BOLT, seat belt eye

2шт.

456939

NUT,7/16"-20, G8

7/16-20 type 4 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

402132R1

BAR, seat belt anchor

2шт.

537529R1

PRODUCT GRAPHIC, implement clearance check

1шт.

Выбрано товаров: 58
