Запчасти Case IH 2544 (N-14) - PARTS ACCESSORIES AND ATTACHMENTS, EXHAUST PIPE EXTENSION, FARMALL TRACTORS Accessories & Attachments

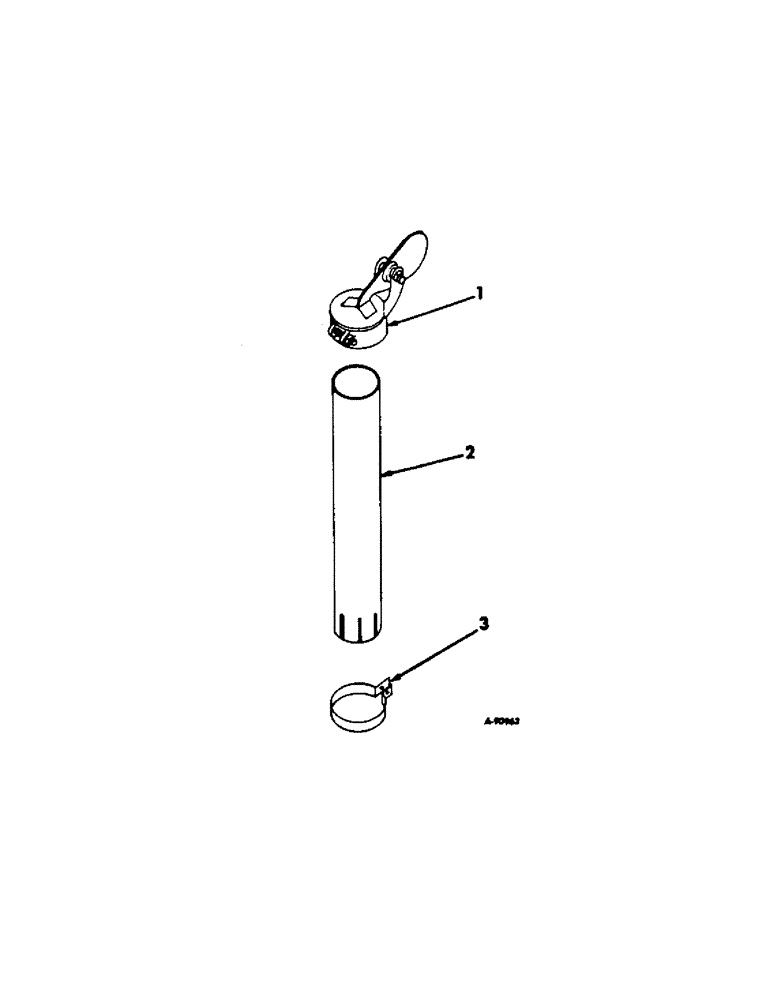

Схема запчастей Case IH 2544 - (N-14) - PARTS ACCESSORIES AND ATTACHMENTS, EXHAUST PIPE EXTENSION, FARMALL TRACTORS Accessories & Attachments
3
2
1

Артикул

Название

Примечание

Количество

1

402677R1

CAP

exhaust, use with pipe, 402985R1

1шт.

1

403586R1

CYLINDER END CAP

CAP, exhaust, use with pipe, 527705R1

1шт.

2

527705R1

PIPE, exhaust muffler extension, on orders for pipe 402985R1 furnish pipe 527705R1, clamp 527706R1 and exhaust cap 403586R1

1шт.

3

527706R1

CLAMP, exhaust muffler extension pipe, replaces 402676R1

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 7
