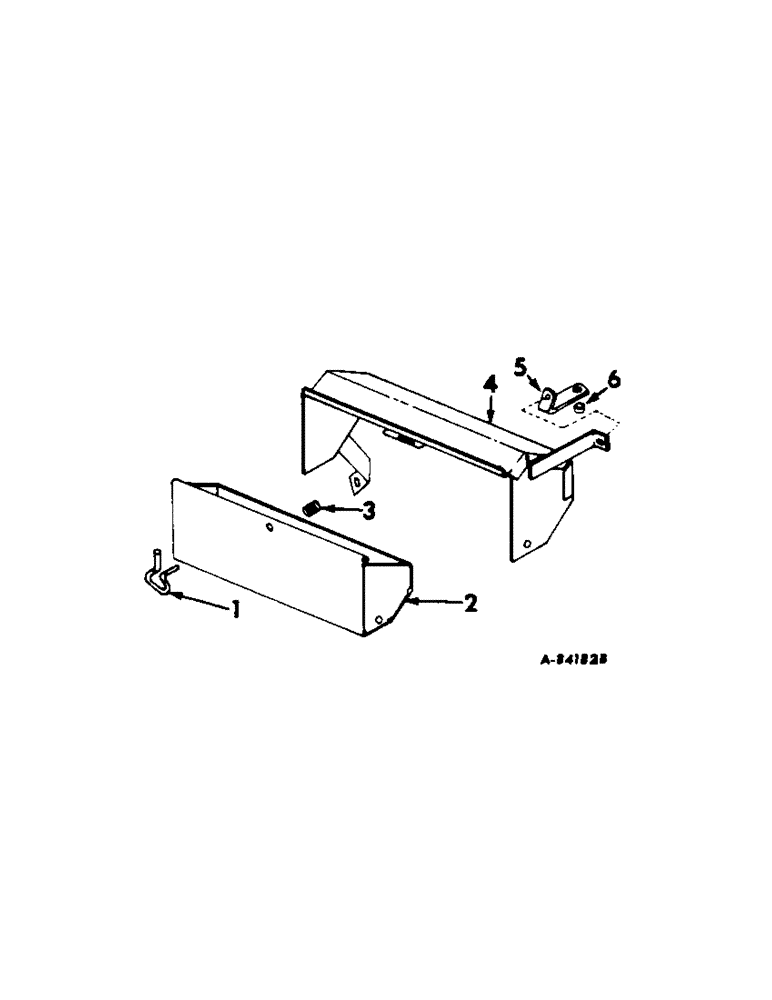

Запчасти Case IH 2544 (M-07) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, TOOL BOX, FARMALL TRACTORS (10) - OPERATORS PLATFORM

402779R91

BOX ASSY, tool, gear drive tractors

1шт.

402828R91

BOX ASSY, tool, hydrostatic drive tractors, Serial Range: -13497

1шт.

180018

CONNECTING LINK

SCREW, 1/4-20 x 5/8 C-Z hex-hd cap

1шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 C-Z hex-hd cap

1шт.

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cotter

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

383110R11

DRAWER ASSY, tool box handle

1шт.

4

402825R1

COVER ASSY, tool box, gear drive tractors

1шт.

4

402829R1

COVER ASSY, tool box, tractors w/hydrostatic drive

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 5/8 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

5

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.
