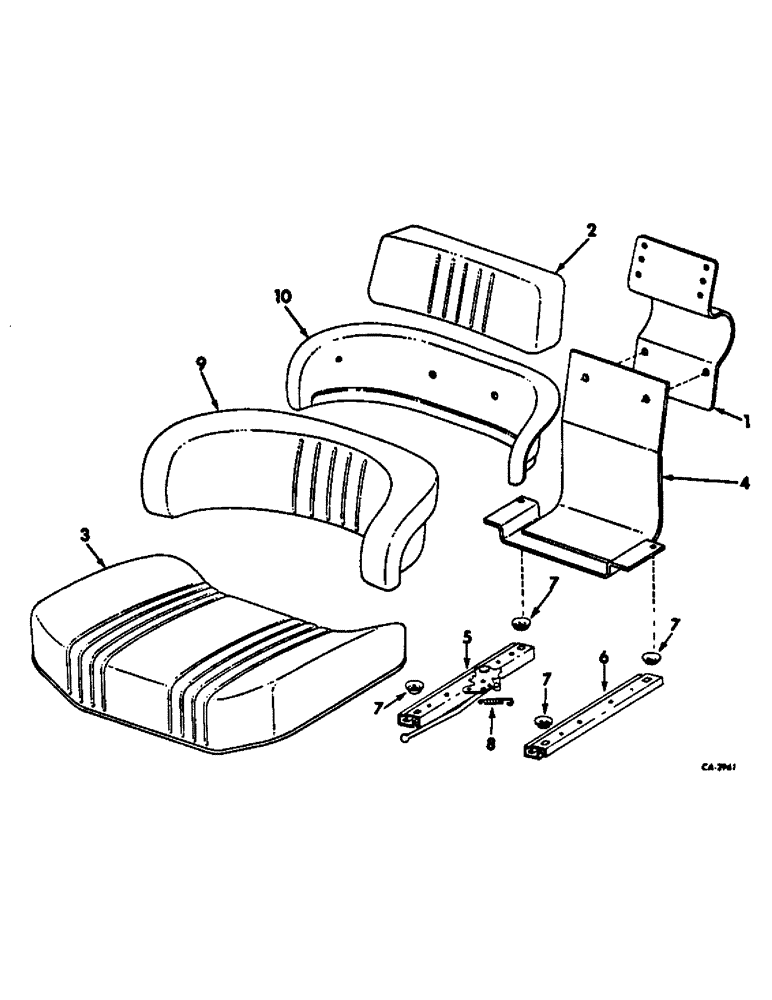

Запчасти Case IH 2544 (M-05) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, DELUXE SEAT (10) - OPERATORS PLATFORM

403361R93

SEAT

ASSY, deluxe

1шт.

1

405068R1

SUPPORT, upper back

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19286R1

SCREW, 5/16-18 x 3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

623066R1

SCREW, 3/8-16 x 1 cad hex-hd cap

2шт.

2

405067R2

CUSHION

ASSY, upper back

1шт.

161895

SCREW,Cross Pan Hd, #10 - 12 x 1/2"

10.12 x 1/2 C-Z cr-rec pan hd tap

4шт.

3

405060R2

CUSHION

ASSY, seat

1шт.

4

405061R1

FAME ASSY, seat

1шт.

5

66332C1

ADJUSTER W/HANDLE, seat RH, on orders for 405062R1 furnish adjuster, 66331C1, adjuster, 66332C1, cour screws, 180079 and four spacers, 66338C1

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

66331C1

ADJUSTER ASSY, seat LH, on orders for 405063R1 furnish adjuster, 66331C1, adjuster, 66332C1, four screws, 180079 and four spacers, 66338C1

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

66338C1

SPACER

cup washer

4шт.

8

NSS

NOT SOLD SEPARAT

SPRING, latch, order 66332C1, use w/adjuster, 66332C1

1шт.

8

398176R1

SPRING

latch, use w/adjuster, 405062R1

1шт.

9

405065R2

CUSHION

ASSY, back

1шт.

10

405066R1

PLATE, outer back

1шт.

155348

YOKE

SCREW, 1/4-20 x 3/4 C-Z cr-rec-rd hd mach

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

539832R1

SAFETY BELT

1шт.
