Запчасти Case IH 2544 (M-02) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, SEAT, FARMALL TRACTORS (10) - OPERATORS PLATFORM

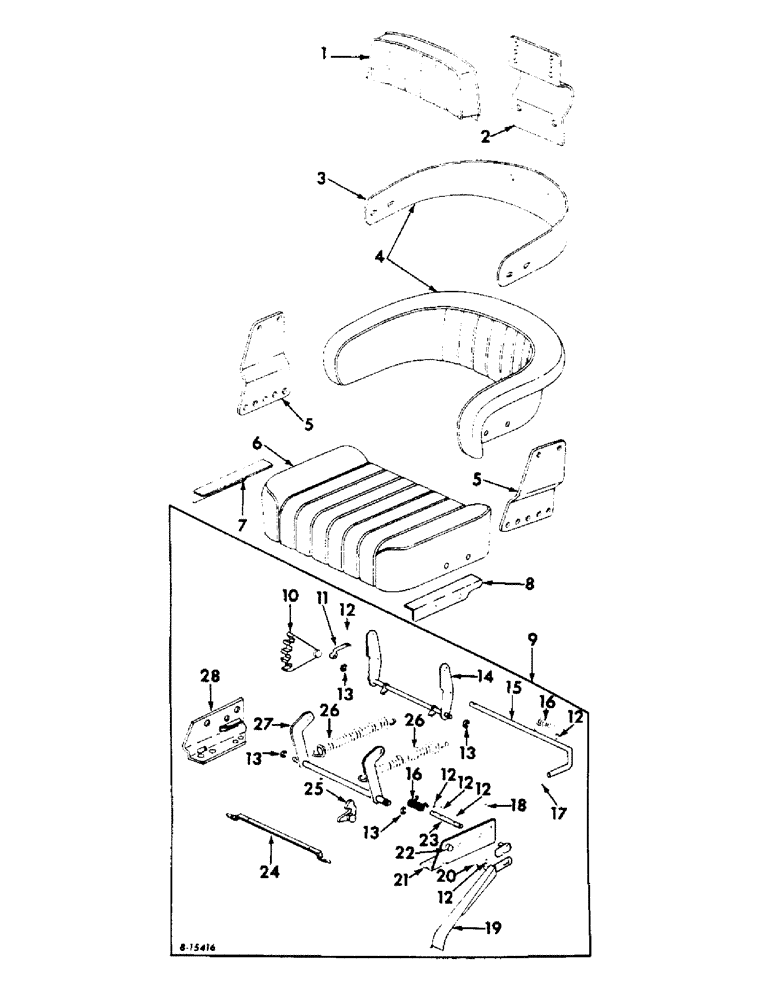

Схема запчастей Case IH 2544 - (M-02) - SEAT, OPERATORS PLATFORM AND MISCELLANEOUS, SEAT, FARMALL TRACTORS (10) - OPERATORS PLATFORM
27
26
12
3
16
18
8
1
20
26
5
12
12
12
2
25
13
16
19
21
6
15
17
13
7
5
28
22
23
4
10
13
13
14
12
12
9
24
11

Артикул

Название

Примечание

Количество

1

387177R92

CUSHION ASSY.

CUSHION ASSY, upper back

1шт.

2

387178R1

SUPPORT

upper back cushion

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

5/16-18 x 5/8 C-Z hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

2шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

387175R1

LARGE PLATE

PLATE, cover

1шт.

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

8-15 x 3/8 cr-rec pan-hd type A tapping

3шт.

4

387174R92

CUSHION ASSY.

CUSHION ASSY, back

1шт.

5

387176R1

SUPPORT

back cushion

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

6

380680R94

CUSHION

ASSY, seat

1шт.

7

404225R1

ANGLE ASSY, RH support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

404224R1

ANGLE ASSY, LH support

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

397367R93

BASE

ASSY, adjustable seat

1шт.

379273R1

BOLT,Hex, 1/2" - 13 x 1.28"

BOLT, 1/2-13 x 9/32 shoulder

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

427586

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 8

SCREW, 5/16-18 x 1-1/4 C-Z type hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

10

380697R2

SECTOR

gear

1шт.

11

380702R1

PAWL

upper

1шт.

12

443148

GROOVED PIN,3/16" x 1", Type E

PIN - grooved, 3/16" x 1", Type E

6шт.

13

373523R1

SNAP RING,#62, .480" Dia, E-Type

RING - retaining, #62, .480" Dia, E-Type

4шт.

14

383294R1

LEVER, rear

1шт.

15

400403R1

ROD

upper pawl release

1шт.

16

380699R1

SPRING

torsion

2шт.

17

206286R1

KNOB

plastic

1шт.

18

142488

GROOVED PIN,1/8" x 1", Type A

PIN - grooved, 1/8" x 1", Type A

1шт.

19

388318R91

RELEASE ASSY, foot

1шт.

NLS

NO LONGER SERVICED

7/16 x 1 x .083 C-Z

1шт.

20

380704R1

WASHER, spring valv e

1шт.

21

388316R92

SUPPORT

ASSY, LH side

1шт.

22

384780R1

BEARING

LH side support

1шт.

23

380698R2

SHAFT

lower pawl

1шт.

24

388319R1

STRAP, main spring mounting

1шт.

25

380700R1

PAWL

lower

1шт.

26

383296R1

VALVE SPRING

SPRING, linkage main

2шт.

27

380694R1

LEVER

front

1шт.

28

388317R92

SUPPORT ASSY, RH side

1шт.

404227R1

SAFETY BELT, Seat retainer, Attachment, Tractors w/protective frame

1шт.

Выбрано товаров: 48
