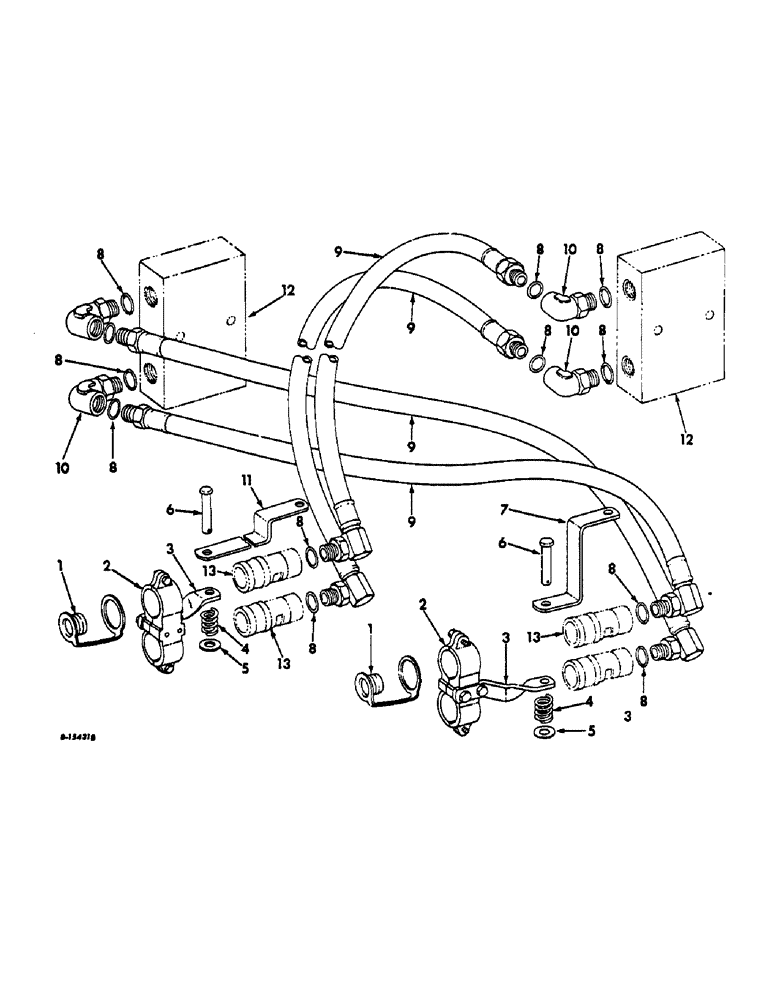

Запчасти Case IH 2544 (F-50) - HYDRAULICS SYSTEM, HYDRAULIC REMOTE CONTROL, TRACTORS WITH REAR HYDRAULIC MANIFOLD (07) - HYDRAULIC SYSTEM

NSS

NOT SOLD SEPARAT

SERVICE PARTS for LH hydraulic remote control, Farmall tractors, consists of all parts marked unit A

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS for LH and RH hydraulic remote control, Farmall tractors, consists of all parts marked unit B

1шт.

403893R91

PARTS ACCESSORY, hyd remote control, International tractors with rear hydraulic manifold, consists of all parts marked unit C

1шт.

NSS

NOT SOLD SEPARAT

SERVICE PARTS for hydraulic remote control, International tractors with front and rear hyd manifold, consists of all parts marked unit D

1шт.

1

401751R11

PLUG ASSY, coupling dust, 2 for unit A, 4 for unit B

1шт.

2

389974R91

FRAME ASSY, self-sealing coupling, unit A, 2 for unit B

1шт.

2

379030R91

FUNNEL

FRAME ASSY, self-sealing coupling, units C & D

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

389976R1

BAR, self-sealing coupling frame, unit A, 2 for unit B

1шт.

3

379031R1

BRACKET

self-sealing coupling frame, units C & D

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 C-Z hex-hd cap

2шт.

4

353213R2

SPRING

coupling frame cushion, units A, C & D, 2 for unit B

1шт.

5

496-21047

WASHER

15/32 x 59/64 x .065, units A, C & D, 2 for unit B

1шт.

6

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 headed, coupling bracket, units A & C, 2 for unit B

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), , Unit A, 2 for Unit B 5/32" x 3/4"

1шт.

7

389975R2

BRACKET, self-sealing coupling, units A, B, C & D

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, 1/2-13 x 2-1/4 hex-hd cap

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 hex-hd cap, Unit A

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, remote control hose & elbow, 4 for unit C, 6 for units A & D, 12 for unit B

1шт.

9

392806R91

HOSE

ASSY, remote control, 2 for unit A, 4 for unit B

1шт.

9

371799R91

HOSE,12.7mm ID x 644.52mm L

ASSY, remote control, 2 for units C & D

1шт.

10

371357R91

ELBOW

remote control hose 90 deg adj, 2 for units A, C & D, 4 for unit B

1шт.

11

394292R1

BRACKET, breakaway coupling, unit B

1шт.

179888

LEVER

SCREW, 1/2-13 x 1-7/8 hex-hd cap

2шт.

12

NSS

NOT SOLD SEPARAT

CHECK VALVE, refer to double acting check valve listing, section f

1шт.

13

NSS

NOT SOLD SEPARAT

HYDRAULIC self-sealing female coupling, refer to auxiliary hydraulic valves & tubes listing, section F

1шт.
