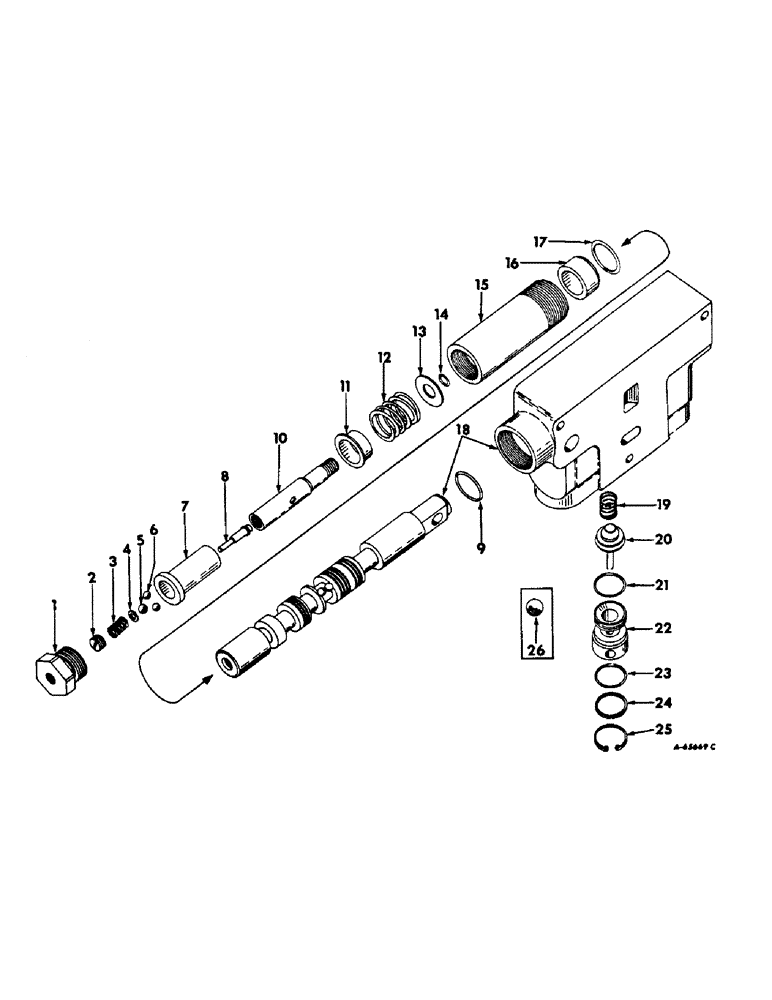

Запчасти Case IH 2544 (F-39) - HYDRAULICS SYSTEM, HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

390826R94

VALVE

ASSY, hydraulic control

1шт.

383267R94

VALVE

ASSY, hydraulic control

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 stl button

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel, detent 1/4" Dia

3шт.

7

376426R1

SLEEVE

position control

1шт.

8

396582R1

PISTON ASSY.

PISTON ASSY, unlatching

1шт.

9

406181R1

O-RING,21.82mm ID x 3.53mm Width

7/8 x 1-1/8 x 1/8, S treated, control valve spool upper

1шт.

10

382659R1

BODY

ACTUATOR, centering spring

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R2

WASHER,13.34mm ID x 33.53mm OD x 1.52mm Thk

centering spring thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Centering spring actuator

1шт.

15

395783R1

UNION

SLEEVE, cap retaining, also order retainer, 395781R1

1шт.

16

395781R3

DETENT

RETAINER, valve spool o-ring, also order sleeve, 395783R1

1шт.

17

528249R1

O-RING

7/8 x 1-1/16 x 3/32, S treated, control valve spool lower

1шт.

18

NSS

NOT SOLD SEPARAT

BODY ASSY, control valve, not serviced separately, order valve 390826R94

1шт.

18

NSS

NOT SOLD SEPARAT

BODY ASSY, control valve, not serviced separately, order valve 383267R94

1шт.

19

395278R1

SPRING

backflow check poppet valve

1шт.

20

395277R1

VALVE

backflow check poppet, also order spring, 395278R1

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, check poppet retainer inner

1шт.

22

383280R1

VALVE

RETAINER, check poppet

1шт.

23

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check poppet retainer outer

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, check poppet retainer outer o-ring back-up

1шт.

25

537603R1

RING

check poppet retainer snap

1шт.

26

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

383548R92

SET OF PARTS

PACKAGE, open center control valve service, consists of (1) o-ring 359158R1, (1) o-ring 362796R1 (1) o-ring 364879R1, (1) o-ring 406181R1, (1) o-ring 528249R1, (1) retainer 383280R1, (1) ring 537603R1, (1) spring 395278R1, (1) valve 395277R1

1шт.

548788R91

STRIPPER PACKAGE

PACKAGE, four position control valve lower seal, consists of (1) instruction 1084099R1, (1) o-ring 528249R1, (1) retainer 395781R3, (1) sleeve 395783R2

1шт.
