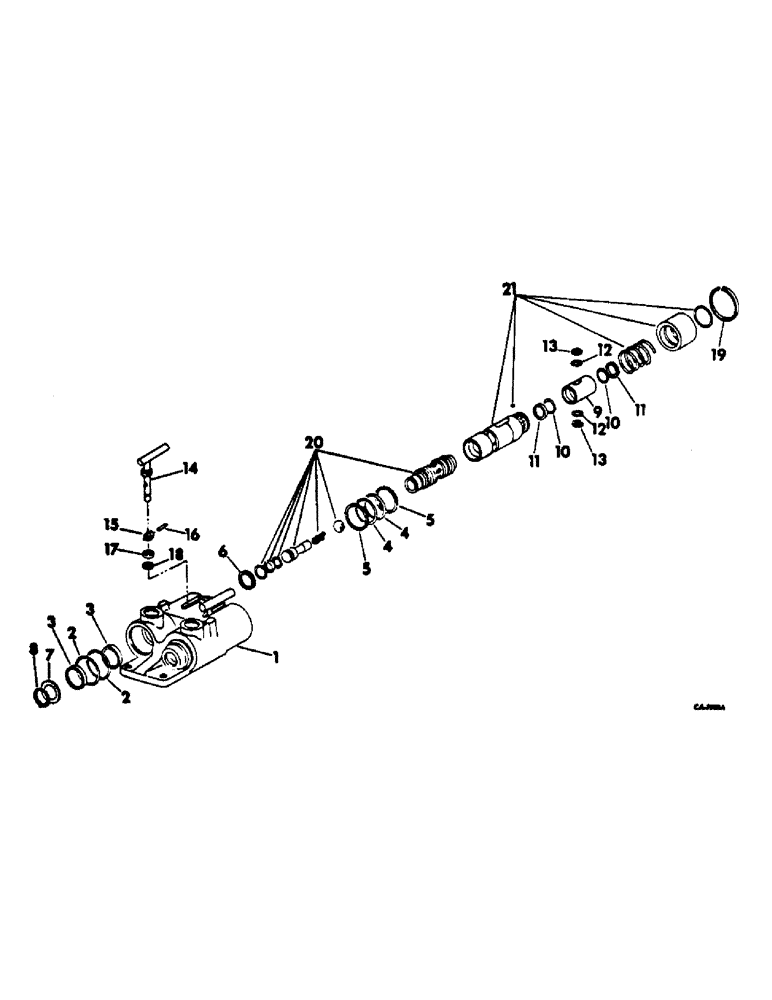

Запчасти Case IH 2544 (F-38) - HYDRAULICS SYSTEM, FEMALE COUPLER (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
544786R92
NO LONGER SERVICED
COUPLING ASSY, female
1шт.
1
544788R1
BODY
1шт.
2
22278R1
O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro
1-11/16 x 1-7/8 x 3/32
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
3
544789R1
SEAL
sleeve
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
4
346959R1
O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro
1-1/16 x 1-1/4 x 3/32
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
5
544792R1
WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk
back-up
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
6
57071C1
RING
retaining check body inner
2шт.
7
22769R1
WASHER
2шт.
8
21399R1
SNAP RING,#106, Ext
RING - snap, , check body outer #106, Ext
2шт.
9
544798R1
BUSHING
SLEEVE, female body small
2шт.
10
528249R1
O-RING
13/16 x 1 x 3/32
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
11
544799R1
WASHER
backup
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
12
379365R1
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
3/8 x 1/2 x 1/16
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
13
544800R1
WASHER
back-up
4шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
14
544701R1
HANDLE ASSY, valve
2шт.
15
544804R1
CAM
check valve
2шт.
16
544805R1
PIN
cam retainer
2шт.
17
544806R1
RETAINER
cam shaft
2шт.
18
399921C1
RING
cam shaft retaining
2шт.
Part of hydraulic coupler o-ring and seal service package P/N 549160R91
1шт.
19
537468R1
SNAP RING,#193, 2.081", Int
RING, retaining
2шт.
20
549158R1
VALVE
ASSY, check
2шт.
21
549159R1
SLEEVE
ASSY, female body
2шт.
549160R91
PACKAGE
hydraulic coupler o-ring and seal service, consist of ref nos. 2, 3, 4, 5, 10, 11, 12, 13 and 18
1шт.
Выбрано товаров: 32
