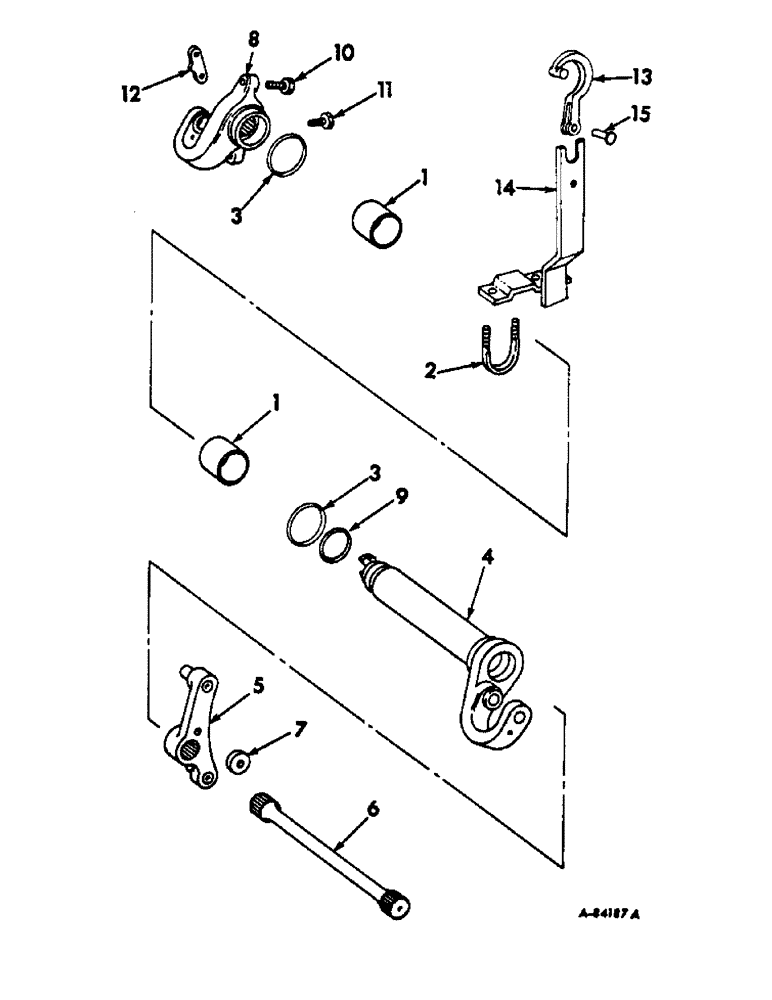

Запчасти Case IH 2544 (F-37) - HYDRAULICS SYSTEM, DRAFT SENSING (07) - HYDRAULIC SYSTEM

1

394887R91

BUSHING

ASSY, lining and case

2шт.

2

390851R1

BOLT,3/8" - 16 x 3.05" W x 3" L

U-BOLT, sensing arm

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

3

471140R1

O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro

3 x 3-3/8 x 3/16, crank arm

2шт.

4

389644R11

ARM

ASSY, RH crank

1шт.

5

381923R11

KIT

BRACKET ASSY, torsion bar anchor

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 hex-hd cap

2шт.

106267

WASHER,5/8"

11/16 x 1-3/4 x .134

2шт.

6

402041R1

BAR, torsion spring

1шт.

7

354617R1

WASHER

RETAINER, torsion bar

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

389647R1

ARM

LH crank, optional w/398313R1

1шт.

8

398313R1

ARM

LH crank, optional w/389647R1

1шт.

9

383260R1

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

2-1/2 x 2-7/8 x 3/16

1шт.

10

389648R2

SCREW, stop adjusting, top

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

11

383261R2

ADJUSTMENT SCREW

stop adjusting, bottom

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

12

383262R1

SUPPORT

RETAINER, crank arm

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

390118R1

ARM

sensing upper

1шт.

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

SCREW, 1/4-20 x 1-1/2 hex-soc-hd ov-pt set

1шт.

109084

NUT,1/4"-20, G5

1шт.

14

390849R11

ARM

ASSY, sensing lower

1шт.

15

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

Rod end 5/16" x .940", HDN

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.
