Запчасти Case IH 2544 (F-29) - HYDRAULICS SYSTEM, HYDRAULIC DRAFT CONTROL, INTERNATIONAL TRACTOR WITH SERIAL NO. 15786 AND BELOW (07) - HYDRAULIC SYSTEM

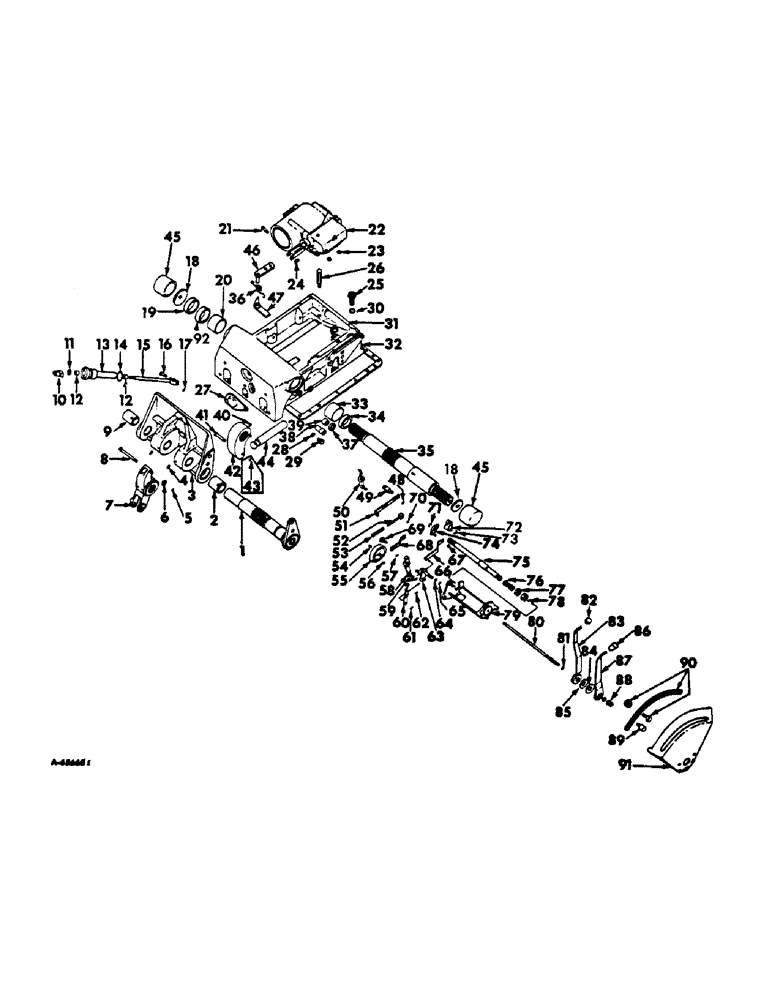

Схема запчастей Case IH 2544 - (F-29) - HYDRAULICS SYSTEM, HYDRAULIC DRAFT CONTROL, INTERNATIONAL TRACTOR WITH SERIAL NO. 15786 AND BELOW (07) - HYDRAULIC SYSTEM
59
2
40
23
92
58
87
15
38
53
50
61
12
72
71
57
3
79
41
67
10
88
56
45
43
89
46
62
55
36
69
19
82
12
78
86
5
44
22
39
73
2
20
83
66
27
60
90
4
75
51
333
31
48
1
21
18
85
80
26
37
11
25
77
17
4
63
52
7
74
70
9
54
13
49
30
91
18
76
84
42
8
35
65
68
81
16
64
8
32
47
45
24
6
14

Артикул

Название

Примечание

Количество

1

376968R21

SHAFT

TORSION BAR ASSY, draft control

1шт.

Tractors w/three point hitch.

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap

1шт.

2

376966R1

BEARING, torsion bar, large

1шт.

Tractors w/three point hitch.

1шт.

3

376964R11

BRACKET ASSY, torsion bar, composed of (1) bearing 376965R1, (1) bearing 376966R1, (1) bracket 376964R1 (NSS), (2) fitting 273355, (1) pin 377935R1 (NSS)

1шт.

Tractors w/three point hitch.

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

4

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 straight drive type lub

2шт.

Tractors w/three point hitch.

1шт.

5

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , centering spring #37, .300" Dia, E-Type

1шт.

Tractors w/three point hitch.

1шт.

6

376977R1

SPRING, draft control nut centering

2шт.

Tractors w/three point hitch.

1шт.

7

383435R1

BELLCRANK, draft control

1шт.

8

376975R1

PIN, draft control bellcrank

1шт.

Tractors w/three point hitch.

1шт.

9

376965R1

BEARING, torsion bar, small

1шт.

Tractors w/three point hitch.

1шт.

10

384357R1

NUT, draft control rod, also order two washers, 384358R1

1шт.

Tractors w/three point hitch.

1шт.

384358R1

WASHER, draft control rod

2шт.

11

376022R91

OIL SEAL

SEAL, draft control rod oil

1шт.

12

273279R91

BUSHING

BEARING, draft control rod

2шт.

13

376014R11

TUBE, w/two bearings, 273279R91 and oil seal, 376022R91, draft control rod

1шт.

14

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-15/32 x 1-11/16 x 7/64, draft control rod tube

1шт.

15

376052R11

ROD ASSY, draft control

1шт.

16

379316R1

PIN, draft control rod

1шт.

17

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , draft control rod pin #37, .300" Dia, E-Type

1шт.

18

M22352

RETAINER, rockshaft arm

2шт.

13-1022

BOLT,Hex, 5/8" - 11 x 1-3/8", Gr 5, Full Thd

SCREW, 5/8-11 x 1-3/8 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

376019R91

PACKING RING

SEAL, rockshaft LH oil

1шт.

20

389526R1

BUSHING

rockshaft LH long, order bushing, 537118R1

1шт.

21

130368H

PIN

main valve actuator

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

22

NSS

NOT SOLD SEPARAT

CYLINDER & VALVE ASSY, draft control, for components see list of parts under details of draft control cylinder and valve

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

179887

CABLE

SCREW, 1/2-13 x 1-3/4 hex-hd cap

1шт.

179894

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

SCREW, 1/2-13 x 3-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .074

1шт.

23

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32, cylinder valve

2шт.

24

16558R1

WASHER

17/64 x 5/8 x 18 ga., main valve actuator pin

1шт.

25

382606R91

LOCK VALVE

VALVE ASSY, poppet relief, will work for 401969R1

1шт.

26

381747R1

PLUG, hydraulic unit housing drain

1шт.

27

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

28

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hydraulic lift housing drain plug

1шт.

29

9410358

PLUG

9/16-18 C-Z str thd o-ring boss, hydraulic lift housing external drain

1шт.

30

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32, poppet relief valve

1шт.

31

389524R91

HOUSING ASSY, hyd draft control lift, composed of (1) bearing 376009R1, (1) bearing 376011R11, (1) bushing 376010R1, (1) bushing 389525R1, (1) bushing 389526R1, (1) housing 375576R2 (NSS), (1) retainer 376015R1 (NSS), (1) tube 3796007R1 (NSS)

1шт.

32

375577R1

GASKET

hyd lift housing

1шт.

33

376009R1

BEARING LINER,2.32" ID x 2.438" OD x 2.6"

rockshaft RH

1шт.

34

376020R91

OIL SEAL

SEAL, rockshaft RH oil

1шт.

35

389971R1

ROCKSHAFT, hyd draft control

1шт.

36

390824R1

SPRING

hyd switch return

1шт.

37

383133R91

SEAL

quadrant handle shaft oil

1шт.

38

376010R1

BUSHING

eccentric shaft

1шт.

39

376011R11

BEARING ASSY

ASSY, quadrant handle shaft

1шт.

40

376069R1

SET SCREW

SCREW, rockshaft bellcrank set

1шт.

41

389280R1

PIN

1/4 x 2-3/8 x 2-15/16 hd

1шт.

16558R1

WASHER

17/64 x 5/8 x .049

1шт.

42

389628R1

LEVER

BELLCRANK ASSY, rockshaft

1шт.

43

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

44

389629R1

ROD, hyd draft control piston

1шт.

45

389972R1

SHIELD

rockshaft spline

2шт.

46

402448R1

BAR

ASSY, hydraulic switch, draft sensing

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051) 3/8"

1шт.

47

402437R1

LEVER ASSY, hyd switch

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

48

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Spring retaining link #X31, .243" Dia, E-Type

1шт.

49

376029R21

LEVER ASSY, draft sensitivity control

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

50

402435R1

TRIGGER ASSY, draft control

1шт.

51

376028R1

LINK, safety spring retainer

1шт.

52

376025R11

EYE ASSY, spring retainer

1шт.

53

376027R1

SPRING, safety

1шт.

54

376057R1

BUCKET TOOTH KEY

KEY, rockshaft actuating hub

1шт.

55

376031R11

HUB

ASSY, rockshaft actuating

1шт.

56

377792R1

SET SCREW

SCREW, rockshaft hub set

1шт.

57

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , walking bearm follow-up #37, .300" Dia, E-Type

1шт.

58

376038R11

BEAM

ASSY, walking follow-up

1шт.

59

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Walking bearm to quadrant link #X31, .243" Dia, E-Type

1шт.

62

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Position control walking link #X31, .243" Dia, E-Type

1шт.

63

389623R91

ECCENTRIC

ASSY, draft control

1шт.

64

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16, eccentric shaft

1шт.

65

971043R1

SNAP RING,#50, Ext

Eccentric shaft #50, Ext

1шт.

66

376042R2

SUPPORT

LINK, walking, Serial Range: beam-quadrant

1шт.

67

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Walking beam to quadrant link #X31, .243" Dia, E-Type

1шт.

68

376984R1

SUPPORT

LINK, walking, Serial Range: beam-valve

1шт.

69

376041R1

SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet

Shoulder

1шт.

70

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, , Spring retaining eye #X31, .243" Dia, E-Type

1шт.

71

269181R1

SNAP RING,#75, Ext

RING - snap, , actuating lever #75, Ext

1шт.

72

376044R11

ARM

ASSY, draft retarding

1шт.

73

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, , draft retarding arm #37, .300" Dia, E-Type

1шт.

74

376043R21

LEVER

ASSY, slow motion actuating

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

102435

PIVOT

SCREW, 1/4-20 x 1-1/4 sq-hd oval pt set

1шт.

75

376060R11

SHAFT,0.379" Diameter

TUBE ASSY, position control lever shaft

1шт.

76

378067R1

SPRING

position control lever friction

1шт.

77

376063R1

NUT

position control lever spring lock

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga

1шт.

78

378066R1

SNAP RING,#X74, .616" Dia, E-Type

RING - retaining, , control handle #X74, .616" Dia, E-Type

1шт.

79

378063R11

SUPPORT ASSY.

SUPPORT ASSY, quadrant

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

80

379061R12

SHAFT

ASSY, draft sensitivity control lever

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

81

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16, control shaft

1шт.

82

371600R2

HANDLE

KNOB, position control handle

1шт.

83

402832R1

HANDLE ASSY, position control

1шт.

84

380421R1

FRICTION WASHER

DISC, sensitivity control handle friction

1шт.

85

376056R1

DISC

position control handle friction

1шт.

86

389627R1

GRIP

KNOB, sensitivity control handle

1шт.

87

376957R11

HANDLE

ASSY, draft sensitivity control

1шт.

88

376066R1

BELLEVILLE WASHER

belleville spring

3шт.

89

378620R1

STOP

quadrant lever

1шт.

114417H

NUT, 1/4-28 ESNA stop

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 ga C-Z

1шт.

90

378619R11

GUIDE

ASSY, control handle

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

91

376985R2

SECTOR

QUADRANT, control

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.

379655R1

SCREW

shoulder

1шт.

92

389525R1

BUSHING

rockshaft LH short, order bushing, 537118R1

1шт.
