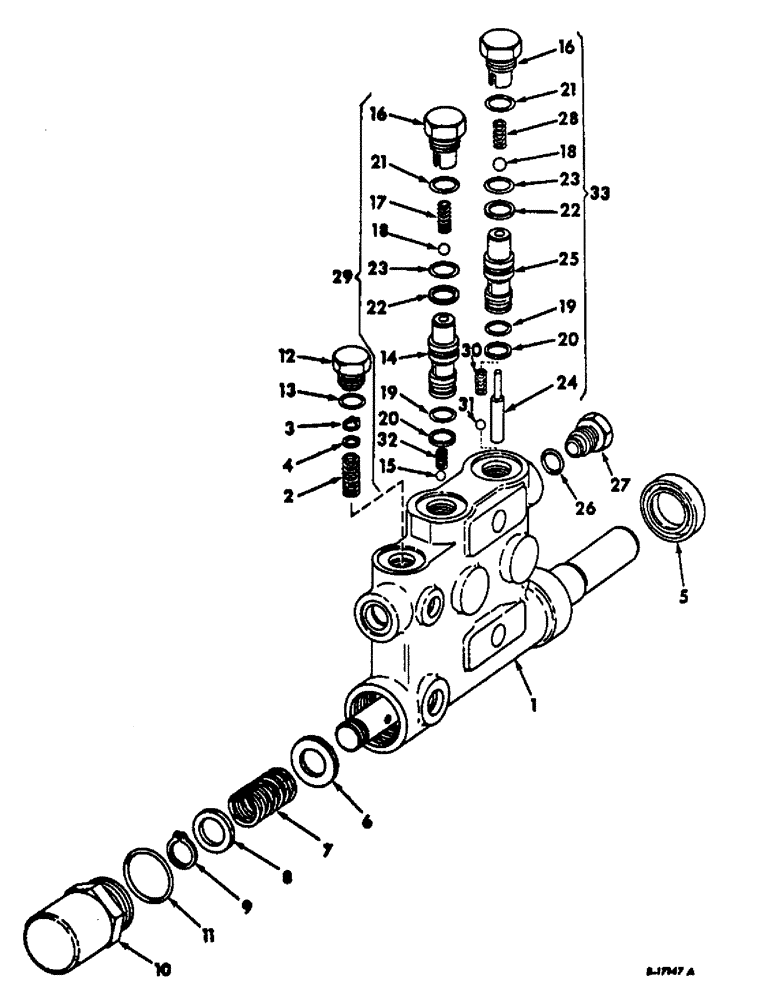

Запчасти Case IH 2544 (F-22) - HYDRAULICS SYSTEM, DRIVE CONTROL VALVE, TRACTORS WITH HYDROSTATIC DRIVE (07) - HYDRAULIC SYSTEM

398719R92

VALVE

drive control

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK ASSY, shuttle, not seviced separately order control valve 398719R92

1шт.

529850R1

PLUG, pressure, flush type

1шт.

2

400454R1

SPRING

anti-coast valve

1шт.

3

875777R1

SNAP RING,#25, Ext

RING - snap, #25, Ext

1шт.

4

401291R1

SPRING WASHER

anti-coast valve pin

1шт.

5

381232R91

OIL SEAL

oil, optional w/397826R91

1шт.

5

397826R91

GASKET

oil, optional w/381232R91

1шт.

6

398693R1

WASHER

1шт.

7

398733R1

SPRING

shuttle valve centering

1шт.

8

398694R1

WASHER

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, retaining

1шт.

10

398692R1

PLUG

shuttle valve

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

12

533567R1

PLUG

9-16/18 str thd o-ring boss

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE ASSY, combination, not serviced separately order valve assy, 404497R2

1шт.

15

NSS

NOT SOLD SEPARAT

BALL, 7/32 dia., not serviced separately order valve assy 404497R2

1шт.

16

NSS

NOT SOLD SEPARAT

BODY, check valve, not serviced separately order valve assy

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING, check valve, not serviced separately order valve assy

2шт.

18

NSS

NOT SOLD SEPARAT

BALL, 5/16 dia., not serviced separately order control valve assy

2шт.

19

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

20

398699R1

BACK-UP RING

RING, back up

2шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

2шт.

22

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, back up

2шт.

23

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

24

398696R1

PIN

lower valve lift

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE ASSY, not serviced separately order valve assy, 404496R2

1шт.

26

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.

27

9410356

PLUG

7/16-20 str thd o-ring boss

2шт.

28

NSS

NOT SOLD SEPARAT

(Not serviced separately order valve assy, 404496R2)

1шт.

29

404497R2

SPARE PART

VALVE ASSY, B, capsule

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING, lower check valve, not serviced separately order valve assy, 404496R2

1шт.

31

NSS

NOT SOLD SEPARAT

BALL, 1/4 dia., not serviced separately order valve assy 404496R2

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING, low pressure relief, not serviced separately order valve assy, 404497R2

1шт.

33

404496R2

VALVE

ASSY, A, capsule

1шт.
