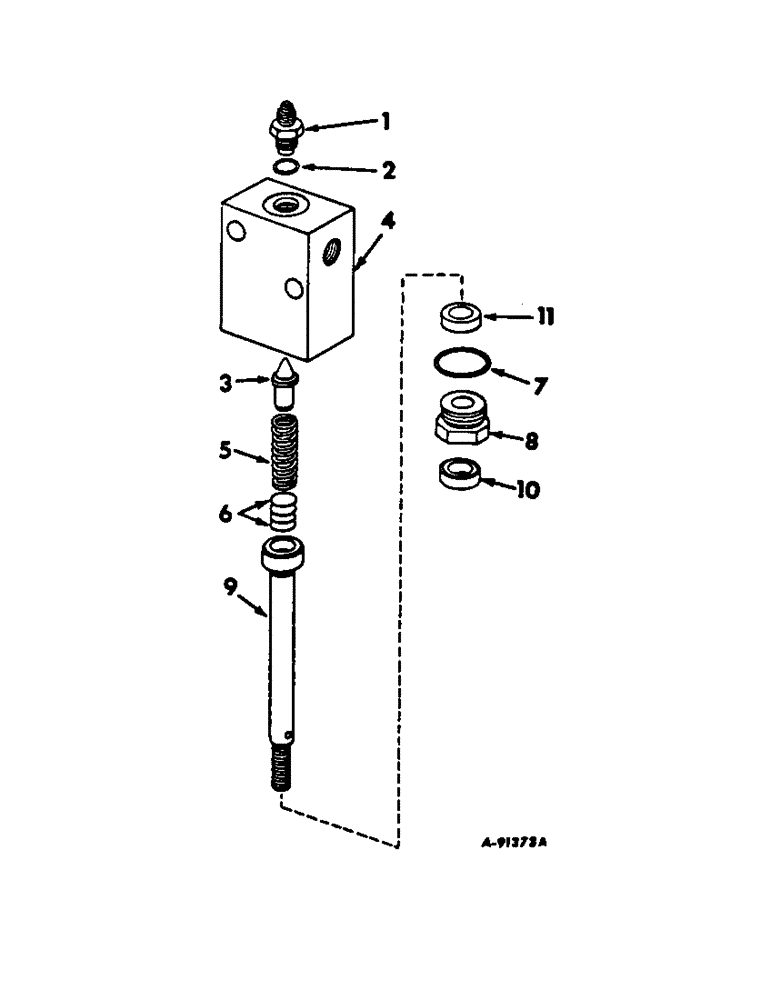

Запчасти Case IH 2544 (F-21) - HYDRAULICS SYSTEM, DECELERATOR VALVE, TWO POSITION, TRACTORS WITH HYDROSTATIC DRIVE (07) - HYDRAULIC SYSTEM

404211R91

VALVE

ASSY, two position relief

1шт.

1

398709R1

SEAT

poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

3

398710R1

VALVE POPPET

VALVE, poppet

1шт.

4

398706R1

BODY, valve, not serviced separately, order relief valve 404211R91

1шт.

5

398731R1

SPRING

valve

1шт.

6

530575R91

SHIM KIT

PACKAGE, relief valve shim

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 ID x .097 thick

1шт.

8

398707R1

GUIDE

valve spring stop

1шт.

9

398708R1

STOP

valve

1шт.

10

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

11

404212R1

SLEEVE

valve stop

1шт.
