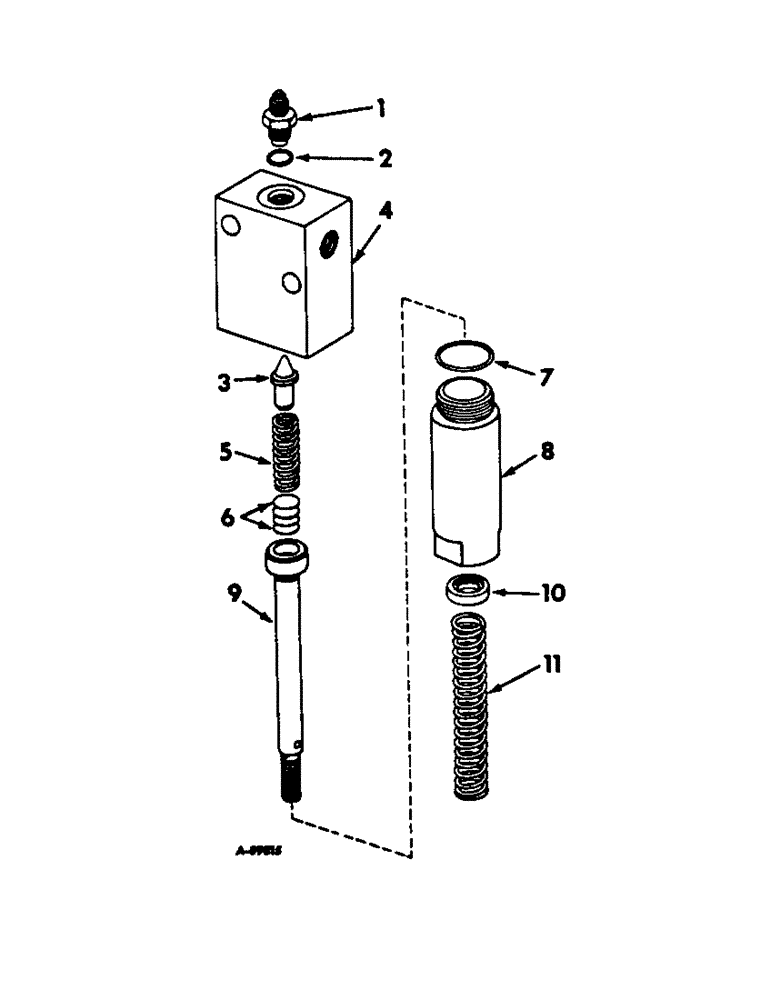

Запчасти Case IH 2544 (F-20) - HYDRAULICS SYSTEM, PILOT RELIEF VALVE, FOOT-N-INCH, TRACTORS WITH HYDROSTATIC DRIVE (07) - HYDRAULIC SYSTEM

398715R91

VALVE

ASSY, pilot relief, International 2544 tractors

1шт.

398705R91

VALVE

ASSY, foot-n-inch

1шт.

1

398709R1

SEAT

high press. pilot relief valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Pilot relief valve seat

1шт.

3

398710R1

VALVE POPPET

POPPET, high press. pilot relief valve

1шт.

4

398706R1

BODY, high press. pilot relief

1шт.

4

398716R1

BODY, high pressure pilot relief, used with valve 398715R91

1шт.

5

398731R1

SPRING

high press. relief valve

1шт.

6

530575R91

SHIM KIT

PACKAGE, relief valve shim

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 ID x .097 thick

1шт.

7

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube, used with valve 398715R91

1шт.

8

398707R1

GUIDE

valve spring stop, used w/valve 398705R91

1шт.

8

398717R1

GUIDE, valve spring stop, used w/valve 398715R91

1шт.

9

398708R1

STOP

pilot relief valve

1шт.

9

398718R1

STOP, pilot relief valve, used with valve 398715R91

1шт.

10

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

11

398698R1

SPRING

return, used with valve 398715R91

1шт.
