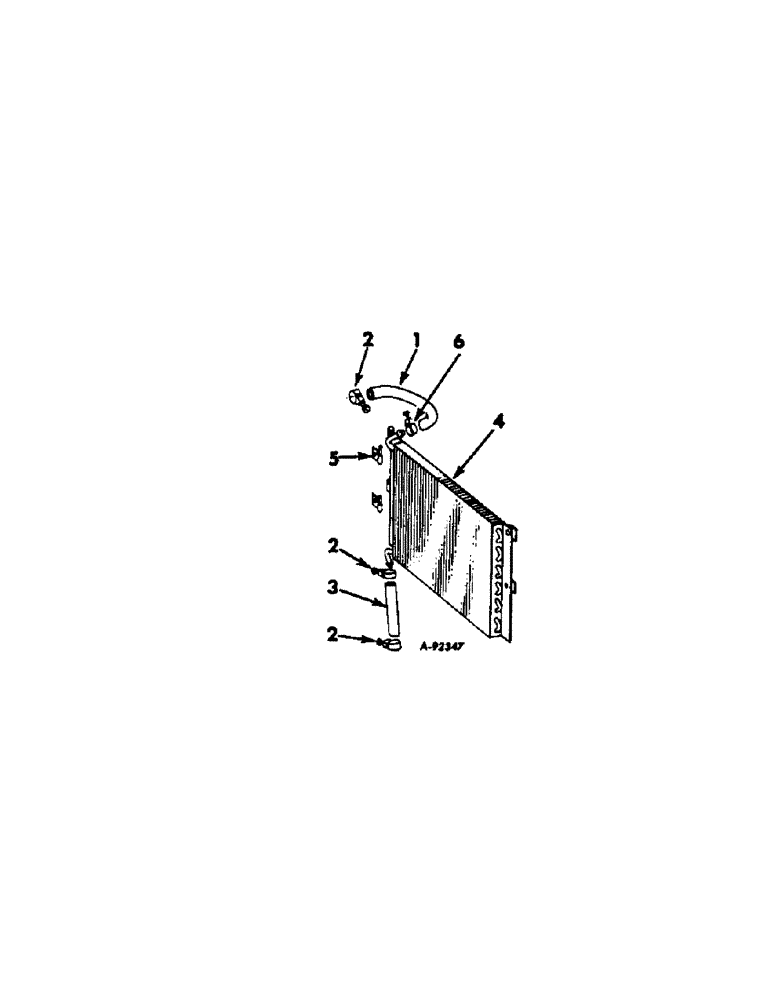

Запчасти Case IH 2544 (F-15) - HYDRAULICS SYSTEM, OIL COOLER AND CONNECTIONS, FARMALL GEAR DRIVE TRACTORS (07) - HYDRAULIC SYSTEM

1

388601R1

HOSE

oil cooler supply rear, will work for 395163R1, diesel engine tractors

1шт.

1

400707R1

HYDRAULIC HOSE,12.70 mm ID, SAE 100R6, SAE J517

HOSE, oil cooler supply rear, diesel engine tractors, Serial Range: -11844

1шт.

1

388601R1

HOSE

oil cooler supply rear, carbureted engine tractors

1шт.

2

274006R1

HOSE, cooler return short

1шт.

4

388419R91

COOLER

ASSY, oil

1шт.

420935

SCREW w/ext tooth lock washer, 3/8-16 x 5/8 slt-rd-hd mach

2шт.

5

388420R92

PIVOT

ASSY, oil cooler

2шт.

6

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler supply hose

1шт.
