Запчасти Case IH 2544 (N-12) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER AND CONNECTIONS Accessories & Attachments

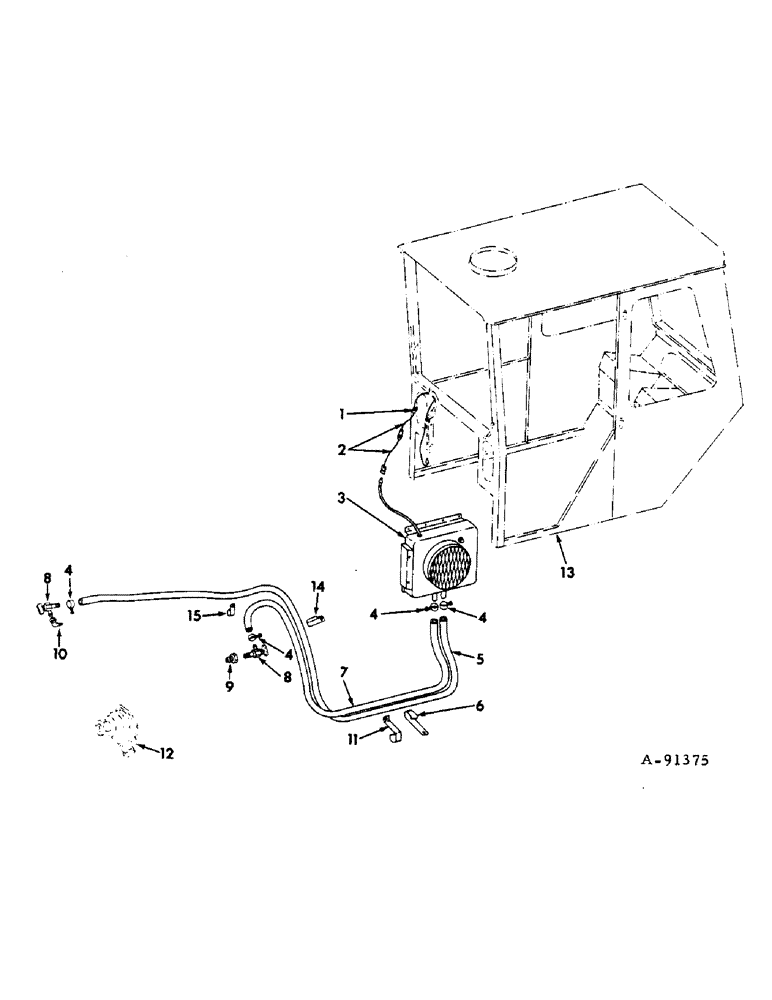

Схема запчастей Case IH 2544 - (N-12) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER AND CONNECTIONS Accessories & Attachments
8
7
9
11
2
3
14
6
10
5
4
12
15
4
1
8
4
13
4

Артикул

Название

Примечание

Количество

404133R91

PARTS ACCESSORY, tractor cab heater, carbureted engine tractors

1шт.

404134R91

PARTS ACCESSORY, tractor cab heater, diesel engine tractors

1шт.

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 C-Z slt-pan-hd tap

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab, for components see list of parts under details of tractor cab heater listing

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

272519

SCREW

1/4-20 x 1 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

NSS

NOT SOLD SEPARAT

HOSE, heater inlet, use 85 in. of 5/8 ID heater hose from a 50 ft. roll marked, 995108R2

1шт.

6

391179R3

CLIP, heater

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

125682

SCREW, 3/8-16 x 5/8 C-Z slt-truss-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE, heater outlet, use 100 in. of 5/8 ID heater hose from a 50 ft. roll marked, 995108R2

1шт.

8

301803R91

VALVE

ASSY, shut-off

2шт.

9

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe, diesel engine tractors

2шт.

10

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

3/8 NPT, 90 deg, diesel engine tractors

1шт.

11

394271R1

CLIP

heater hose, 1 for gasoline, 2 for diesel

1шт.

12

NSS

NOT SOLD SEPARAT

WATER PUMP, refer to eng, 1 parts catalog for carbureted engine and eng, 4 parts catalog for diesel engine

1шт.

13

NSS

NOT SOLD SEPARAT

CAP, refer to tractor cab and connections listing

1шт.

14

204412R1

CLIP,ELECTRICAL

CLIP, heater hose, gasoline engine tractors

1шт.

15

127773

CLIP, heater hose, gasoline tractors

2шт.

Выбрано товаров: 25
