Запчасти Case IH 2544 (G-32) - ELECTRICAL SYSTEM, RIGHT HAND COMBINATION REAR LIGHT, FOR FARMALL TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS

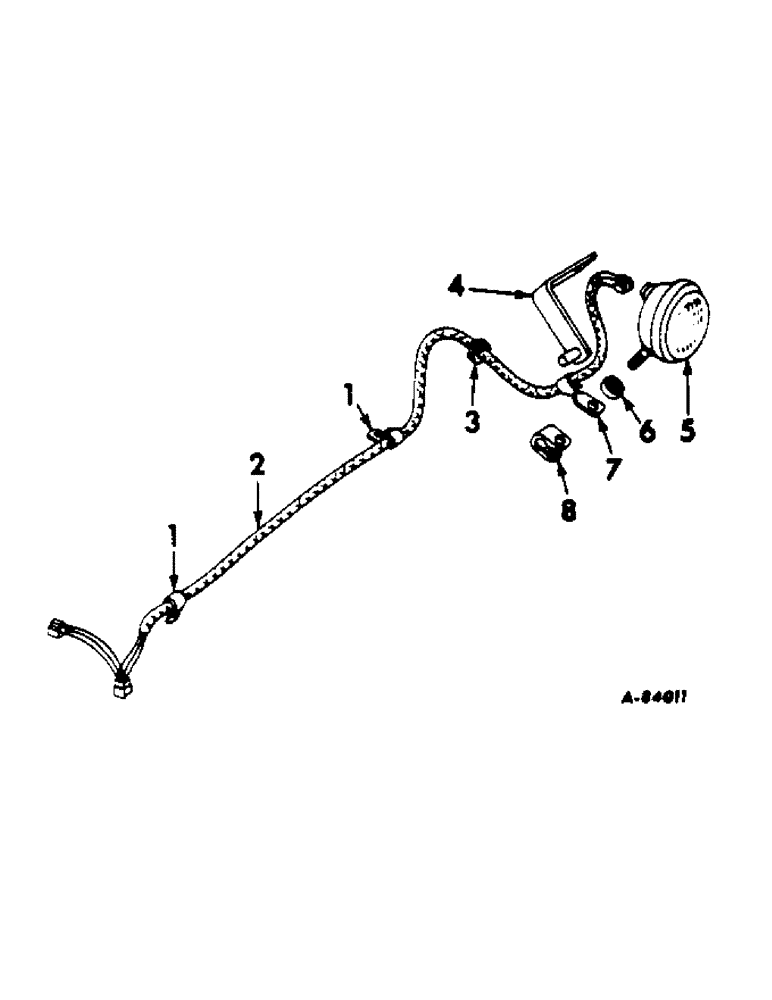

Схема запчастей Case IH 2544 - (G-32) - ELECTRICAL SYSTEM, RIGHT HAND COMBINATION REAR LIGHT, FOR FARMALL TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS
3
1
5
2
6
8
1
4
7

Артикул

Название

Примечание

Количество

1

362121R1

CLIP

RH rear light cable harness

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

391290R91

HARNESS ASSY, RH rar light cable

1шт.

3

42731H

GROMMET

RH rear light cable harness

1шт.

4

391157R11

BRACKET ASSY, rear light

1шт.

120376

NUT,5/16"-18, G5

2шт.

326-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW, 5/16-18 x 3/4 C-Z slt-truss-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

387729R91

LIGHT

ASSY, combination rear & tail, only serviceable items are lamp, 455490 & sealed beam unit, 371461R91

1шт.

102637

NUT,1/2"-13, G5

1шт.

6

365503R1

SPACER

rear light

1шт.

7

370820R1

CLIP

RH rear light cable harness

1шт.

8

350920R1

CLAMP

rear light

1шт.

Выбрано товаров: 15
