Запчасти Case IH 2544 (G-31) - ELECTRICAL SYSTEM, COMBINATION TAIL AND STOP LIGHT, FARMALL TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS

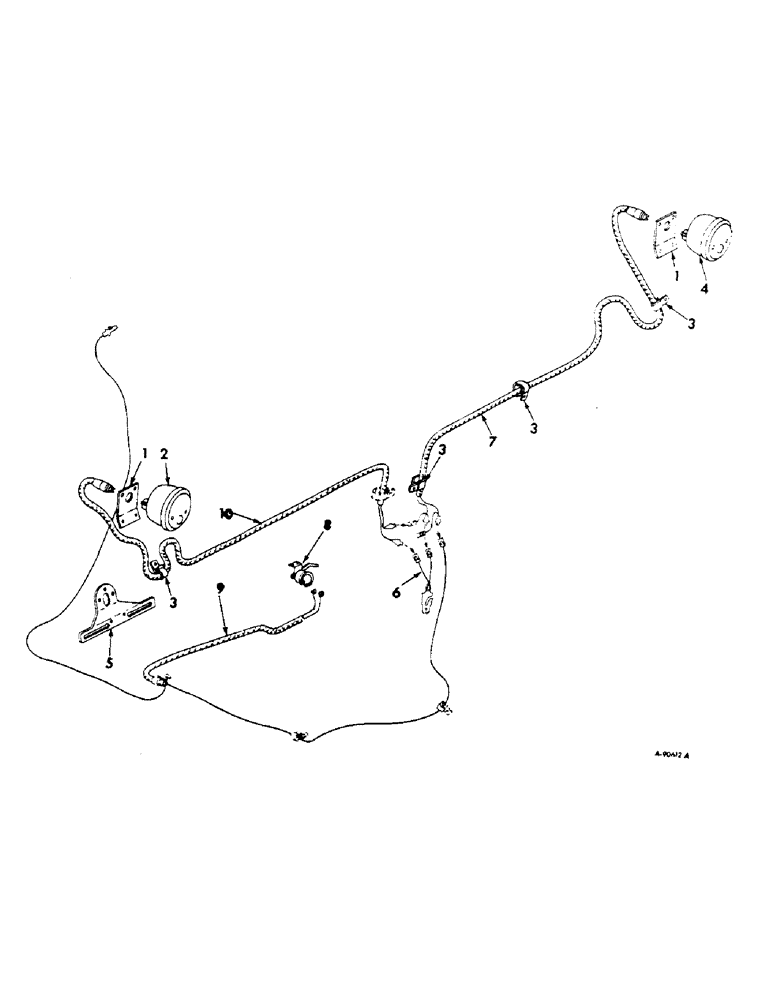

Схема запчастей Case IH 2544 - (G-31) - ELECTRICAL SYSTEM, COMBINATION TAIL AND STOP LIGHT, FARMALL TRACTORS EQUIPPED WITH CAB (06) - ELECTRICAL SYSTEMS
7
5
1
8
3
3
3
1
9
6
2
10
4
3

Артикул

Название

Примечание

Количество

1

392069R1

BRACKET, combination tail & stop light

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt-truss-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

2

45645HA

LIGHT

ASSY, LH combination tail, stop and license plate, composed of (1) body assy (NSS), (1) gasket 371956R1, (1) lamp 9417867, (1) lens 157729R1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

362121R1

CLIP

RH combination tail & stop light connector cable

4шт.

4

45645HA

LIGHT

ASSY, RH combination tail & stop, composed of (1) body assy (NSS), (1) gasket 371956R1, (1) lamp 9417867, (1) lens 157729R1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

392070R1

BRACKET, license plate

1шт.

6

402358R1

CABLE ASSY, stop light adapter

1шт.

7

392063R91

CABLE ASSY, RH combination stop light connector

1шт.

8

1993536

SWITCH ASSY, mechanical brake stop

1шт.

447163

SCREW w/ext tooth lock washer, 10-32 x 1/2 C-Z hex-hd cap

2шт.

9

393533R91

HARNESS ASSY, stop light switch cable

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z slt truss-hd mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

392062R91

CABLE ASSY, LH combination stop light connector

1шт.

Выбрано товаров: 21
