Запчасти Case IH 2544 (G-25) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING FOR DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS

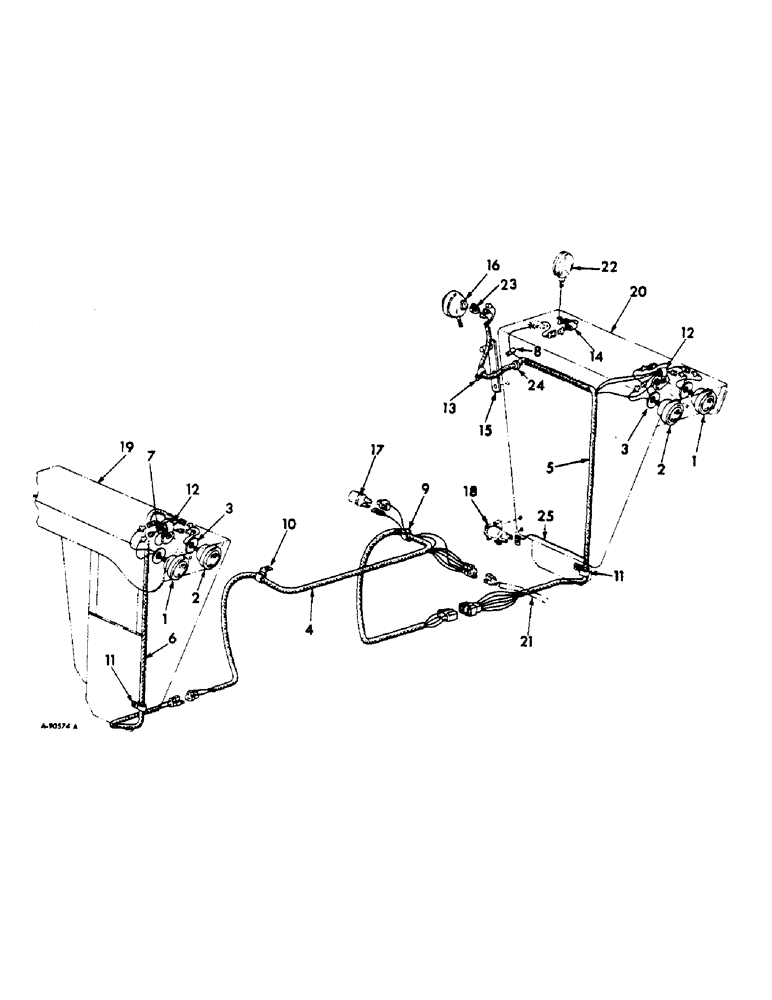

Схема запчастей Case IH 2544 - (G-25) - ELECTRICAL SYSTEM, ELECTRIC LIGHTING FOR DELUXE FLAT TOP FENDERS (06) - ELECTRICAL SYSTEMS
13
19
20
24
10
1
25
11
21
12
9
18
1
4
14
2
17
5
3
6
22
15
3
11
7
2
16
23
8
12

Артикул

Название

Примечание

Количество

1

388945R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items sealed beam unit, 535850R1 and rubber retainer, 676078R1

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

388946R91

LIGHT

ASSY, flood, only serviceable items are sealed beam unit, 390756R91 and rubber retainer, 676078R1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

388947R1

RETAINER

head & flood light

4шт.

4

405261R3

HARNESS

ASSY, deluxe fender main

1шт.

5

405876R1

HARNESS

ASSY, LH deluxe fender

1шт.

6

388949R91

HARNESS

CABLE ASSY, RH fender lighting

1шт.

7

404393R1

CABLE

ASSY, headlamp to ground junction

2шт.

8

366460R1

CABLE CLIP

CLIP, lighting cable harness

2шт.

9

370383R1

CLIP

fender main harness

1шт.

10

291213R1

CLIP, fender main harness

3шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, fender main harness

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 C-Z hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

370820R1

CLIP

lighting cable harness, tractors w/protective frame attachment

2шт.

120376

NUT,5/16"-18, G5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

2шт.

12

362121R1

CLIP

fender lighting cable

12шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, combination rear light harness

1шт.

106653

FUSE

cartridge type AGC-20

1шт.

14

358986R1

CABLE CLIP

CLIP, flashing light cable

1шт.

15

382407R11

BAR

BRACKET ASSY, rear lamp

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

16

NSS

NOT SOLD SEPARAT

LIGHT ASSY, combination rear, refer to starting and lighting listing, section G

1шт.

17

NSS

NOT SOLD SEPARAT

FLASHER ASSY, warning light, refer to starting and lighting listing, section G

1шт.

18

NSS

NOT SOLD SEPARAT

SOCKET ASSY, electric breakaway, refer to electric breakway socket listing, this section

1шт.

19

NSS

NOT SOLD SEPARAT

FENDER ASSY, right, refer to deluxe fender listing, section A

1шт.

20

NSS

NOT SOLD SEPARAT

FENDER ASSY, left, refer to deluxe fender listing, section A

1шт.

21

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

22

NSS

NOT SOLD SEPARAT

LIGHT ASSY, flashing warning, refer to starting and lighting listing, section G

1шт.

23

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear lamp

1шт.

24

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

combination rear light

1шт.

25

404395R1

CABLE

ASSY, breakaway connector, socket to ground, Serial Range: -12612

1шт.

Выбрано товаров: 41
