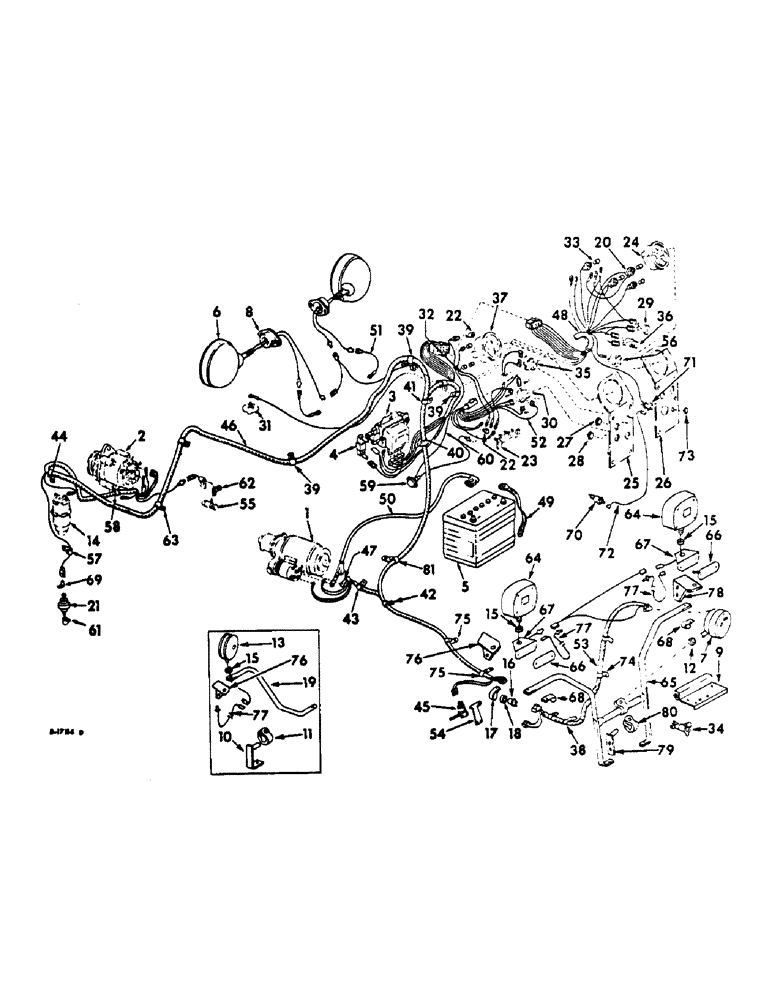

Запчасти Case IH 2544 (G-11) - ELECTRICAL SYSTEM, STARTING AND LIGHTING, FARMALL CARBURETED ENGINE TRACTORS (06) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

CRANKING MOTOR, refer to cranking motor listing, this section

1шт.

2

NSS

NOT SOLD SEPARAT

ALTERNATOR GENERATOR, refer to alternator generator listing, this section

1шт.

3

NSS

NOT SOLD SEPARAT

VOLTAGE REGULATOR, refer to alternator generator and connections listing, this section

1шт.

4

1960890

RESISTOR

RESISTANCE UNIT

1шт.

5

IHPF24

WET BATTERY

low maintenance 12 volt, gear drive tractors

1шт.

5

IHCM24

DRY BATTERY

low-maintenance 12 volt, hydrostatic drive tractors

1шт.

6

387728R91

LIGHT

ASSY, 12 volt sealed beam hd, only serviceable item is sealed beam unit, 371443R91

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 C-Z

2шт.

7

387729R91

LIGHT

ASSY, combination rear & tail, serviceable items, sealed beam unit, 371461R91 & lamp 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 C-Z ext-toogh lock

1шт.

8

382406R1

SUPPORT

BRACKET, head light mounting

2шт.

113911

SCREW, 5/16-18 x 1/2 f-hd mach

4шт.

9

389018R11

PLATE

rear light & independent PTO handle support

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

10

390066R11

BRACKET ASSY, rear light support, Serial Range: -14689

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

350920R1

CLAMP

combination rear lightelow, Serial Range: -14689

1шт.

12

365503R1

SPACER

combination rear light

1шт.

13

394129R91

LIGHT

ASSY, flashing warning, only serviceable items are lamp, 9417866 amber lens, 899280R1 or red lens, 899279R1, Serial Range: -14689

1шт.

120371

NUT,1/2"-20, G5

1шт.

14

NSS

NOT SOLD SEPARAT

IGNITION COIL, refer to eng-1 parts catalog

1шт.

15

394262R1

WASHER

GASKET, flashing warning light

1шт.

16

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

17

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

18

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

19

394465R11

SUPPORT ASSY, flashing warning light, Serial Range: -14689

1шт.

178835

SCREW, 3/8-16 x 5/8 hex-hd cap

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

20

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

2шт.

21

392249R92

SWITCH

engine oil pressure

1шт.

22

365501R1

TERMINAL CONNECTOR

TERMINAL, hydrostatic control light cable

2шт.

23

NSS

NOT SOLD SEPARAT

JUNCTION BLOCK, refer to engine controls and instruments listing, section H

1шт.

24

NSS

NOT SOLD SEPARAT

GAUGE CLUSTER, refer to engine controls and instruments listing, section H

1шт.

25

NSS

NOT SOLD SEPARAT

INSTRUMENT PANEL, refer to engine controls and instruments listing, section H

1шт.

26

NSS

NOT SOLD SEPARAT

INSTRUMENT PANEL, refer to engine controls and instruments listing, section H

1шт.

27

374342R1

PLUG

horn switch hole button

1шт.

28

432281

HOLE PLUG BUTTON,29/32"

PLUG, 29/32 cr cigarette lighter hole

1шт.

29

NSS

NOT SOLD SEPARAT

IGNITION SWITCH, refer to engine controls & instruments listing, section H

1шт.

30

NSS

NOT SOLD SEPARAT

SWITCH ASSY, lighting, refer to engine controls and instruments listing, section H

1шт.

31

NSS

NOT SOLD SEPARAT

SENDING UNIT, refer to fuel tank supports and piping listing section E

1шт.

32

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

1шт.

33

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt

4шт.

34

NSS

NOT SOLD SEPARAT

SOCKET ASSY, electric breakway, refer to electric breakway socket listing, this section

1шт.

35

NSS

NOT SOLD SEPARAT

PUSH BUTTON SWITCH, refer to engine controls & instruments listing

1шт.

36

NSS

NOT SOLD SEPARAT

FUSE HOLDER, refer to engine controls & instruments listing, section H

1шт.

37

NSS

NOT SOLD SEPARAT

SPEEDOMETER TACHOMETER, refer to engine controls and instruments listing, section H

1шт.

38

670043C1

CLIP

mtg. on hydraulic housing

1шт.

39

370383R1

CLIP

fuel tank mounting bolt

2шт.

40

384559R1

CLIP

RH rear fuel tank mounting bolt

1шт.

41

401275R1

CLIP, fuel tank frame LH side

1шт.

42

362123R1

CLIP

clutch housing cover rear

1шт.

43

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, clutch housing cover front

2шт.

44

363660R1

CLIP

lower heat shield

1шт.

45

537641R1

SWITCH ASSY

SWITCH, assy, safety starting, will work for 1993536, gear drive tractors

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL safety starting switch

2шт.

45

382728R91

SWITCH

ASSY, safety starting, hydrostatic drive tractors, Serial Range: -14619

1шт.

45

532682R1

SWITCH

ASSY, neutral starting, hydrostatic drive tractors, Start Serial: 14620

1шт.

46

405477R92

HARNESS

ASSY, main cable, will work for 405295R1, gear drive tractors

1шт.

399470R1

BOOT

INSULATOR, main cable terminal

1шт.

46

406674R1

HARNESS ASSY, main cable, gear drive tractors w/magnetic pulse attachment

1шт.

46

405477R92

HARNESS

ASSY, main cable, trators w/hydrostatic drive

1шт.

399470R1

BOOT

INSULATOR, main cable terminal

1шт.

46

406675R1

HARNESS ASSY, main cable, hydrostatic drive tractors w/magnetic pulse attachment

1шт.

47

399470R1

BOOT

INSULATOR, main cable terminal boot

1шт.

48

405294R1

HARNESS

ASSY, panel cable, replaces 402029R1

1шт.

49

389028R91

CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

50

377114R91

CABLE PULLING GRIP

CABLE ASSY, battery to solenoid switch, replaces 399902R91

1шт.

51

405209R1

CABLE

ASSY, headlamp to ground junction, replaces 370387R91

2шт.

52

405222R1

CABLE

ASSY, lighting switch to junction block, replaces 376869R91

1шт.

53

405284R1

HARNESS ASSY, combination light, Serial Range: -13037

1шт.

53

406693R2

HARNESS

ASSY, combination light, Start Serial: 13038

1шт.

54

389021R1

BRACKET, safety switch, gear drive tractors

1шт.

125981

SCREW, 10-32 x 5/16 hex-hd mach

2шт.

54

398956R1

ANGLE, safety starting switch bracket, hydrostatic drive tractors, Serial Range: -14619

1шт.

54

534842R1

BRACKET, neutral starting switch, hydrostatic drive tractor, Start Serial: 14620

1шт.

109084

NUT,1/4"-20, G5

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

54

400748R1

BRACKET ASSY, safety switch, tractors w/draft control, Serial Range: -12805

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

55

NSS

NOT SOLD SEPARAT

SWITCH ASSY, fuel shut-off, refer to eng-1 parts catalog

1шт.

56

NSS

NOT SOLD SEPARAT

INDICATOR ASSY, air cleaner, refer to electric air cleaner indicator listing, section E

1шт.

57

370535R1

CLIP

push rod valve cover

1шт.

58

363660R1

CLIP

on alternator brace mtg bolt

1шт.

59

399232R91

LIGHT

ASSY, hydrostatic control

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

6-32 x 1/2 C-Z cr-rec pan-hd mach

2шт.

446130

WASHER,#8

11/64 x 13/32 x 18 ga C-Z

2шт.

134530

NUT,Hex, #6 - 32

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

60

404399R1

CABLE ASSY, hydrostatic control light ground

1шт.

61

444163

ELBOW

1/8 street, oil pressure switch

1шт.

62

384556R1

CLAMP

CLIP, on governor hsg

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

63

670043R1

CLIP, fuel tank LH front

1шт.

64

536679R91

LIGHT

ASSY, square warning, serviceable items are lamp, 9417866, amber lens, 537012R1, red lens, 537011R1, gasket, 537010R1, screw 159578, Start Serial: 14690

2шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 diameter ext-tooth lock

2шт.

65

535867R1

SUPPORT ASSY, warning light, Start Serial: 14690

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

66

533092R1

REFLECTOR

, Start Serial: 14690

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

8-15 x 1/2 C-Z fr rec

4шт.

67

533091R1

BRACKET, reflector mounting, Start Serial: 14690

2шт.

68

358986R1

CABLE CLIP

CLIP, flashing warning light, Start Serial: 14690

2шт.

69

365501R1

TERMINAL CONNECTOR

TERMINAL, oil pressure switch

1шт.

70

539280R1

SWITCH

ASSY, transmission oil temp., hydrostatic drive tractors, Start Serial: 15194

1шт.

71

392441R91

LIGHT

ASSY, transmission oil temp warning, hydrostatic drive tractors, Start Serial: 15194

1шт.

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt

1шт.

72

539279R1

CABLE, ASSY, temp warning switch, hydrostatic drive tractors, Start Serial: 15194

1шт.

73

432487

HOLE PLUG BUTTON,11/16"

PLUG, C-Z panel button, gear drive tractors, Start Serial: 15194

1шт.

74

370821R1

CLIP,ELECTRICAL

CLIP, hydraulic housing LH rear

1шт.

75

362123R1

CLIP

rear frame spacer

2шт.

76

402111R1

SUPPORT, flasher light bracket LH, tractors w/protective frame attachment

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

77

405226R1

CABLE ASSY, flashing light, tractors w/protective frame attachment

2шт.

384555R1

CLIP

flashing light cable

6шт.

102637

NUT,1/2"-13, G5

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

78

536529R1

SUPPORT, flasher light bracket RH, tractors w/protective frame attachment

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

79

382407R11

BAR

BRACKET ASSY, rear lamp support, tractors w/protective frame attachment

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

80

350920R1

CLAMP

combination rear light, tractors w/protective frame attachment

1шт.

81

362666R1

CLIP

clutch housing

1шт.
