Запчасти Case IH 2544 (G-04) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO REMY (06) - ELECTRICAL SYSTEMS

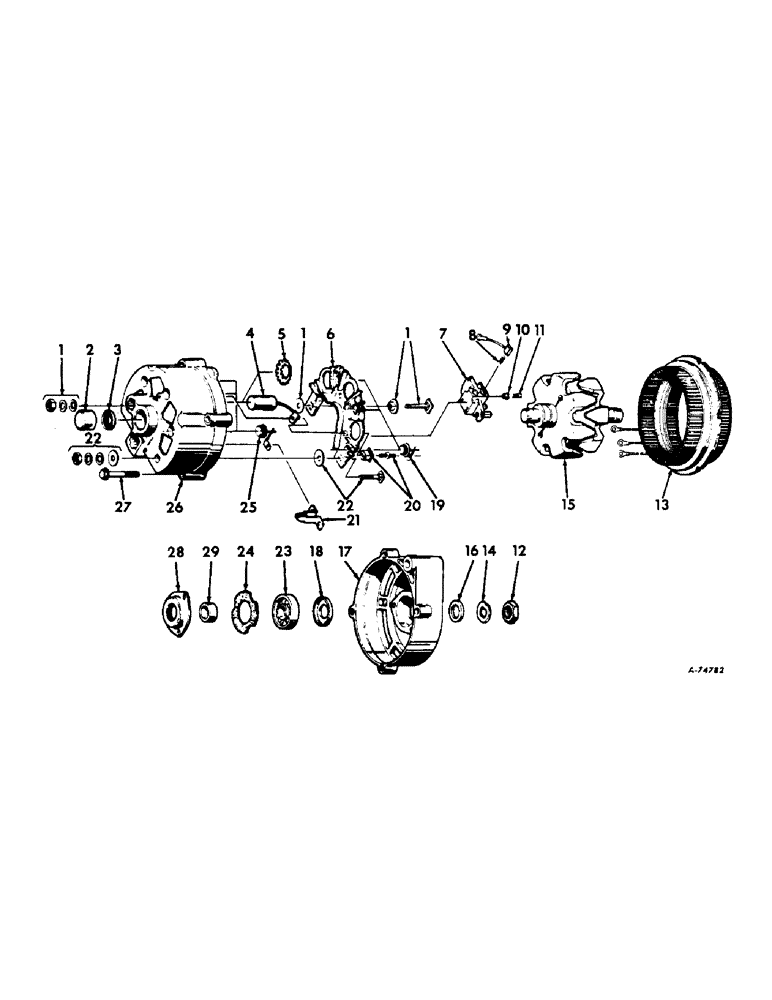

Схема запчастей Case IH 2544 - (G-04) - ELECTRICAL SYSTEM, ALTERNATOR GENERATOR, DELCO REMY (06) - ELECTRICAL SYSTEMS
18
20
22
15
23
12
4
9
7
13
21
11
25
3
1
16
24
28
1
26
5
29
22
10
8
19
6
1
14
2
17
27

Артикул

Название

Примечание

Количество

1100805

GENERATOR

ALTERNATOR GENERATOR, 702337C91

1шт.

1100791

GENERATOR

ALTERNATOR GENERATOR, 397091R91

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL W/NUTS & WASHERS, ground

1шт.

2

968838R91

BEARING

BEARING, slip ring end

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end

1шт.

4

1959455

CAPACITOR

CAPACITOR

1шт.

1959523

SPARE PART WASHER, capacitor screw insulator

1шт.

5

1960750

VALVE SPRING

SPRING, condenser retaining

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush and spring

1шт.

8

NSS

NOT SOLD SEPARAT

(Not serviced separately, order holder assy, 1964682)

1шт.

9

NSS

NOT SOLD SEPARAT

(Not serviced separately, order holder assy, 1964682)

1шт.

10

1959389

INSULATOR

INSULATOR, brush holder screw

1шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1915172

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR ASSY, used w/alternator 1100805

1шт.

13

1962025

COIL

STATOR ASSY, used w/alternator 1100791

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1891201

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

800135

FUNNEL

FRAME FRAME, drive end

1шт.

18

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

19

1852929

RECTIFIER

DIODE PACKAGE, positive

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, drive end ball

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1852928

DIODE

DIODE, negative

3шт.

26

1852934

COVER ASSY

FRAME, slip ring end

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1971993

PLATE

RETAINER ASSY, drive end bearing

1шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.

Выбрано товаров: 37
